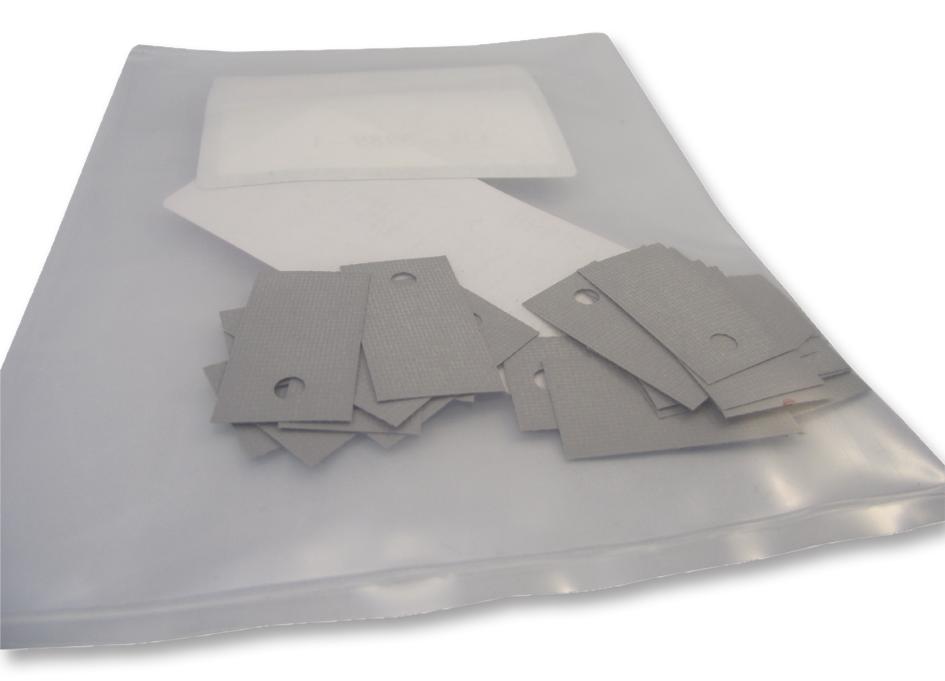

- Suitable for a variety of different packages
- Clean, grease-free and flexible
- 0.45°C/W thermal resistance
- Electrically isolating to 3.5kV (min)
- Silicon rubber/fibreglass
- -60°C to +180°C operating temperature
- 0.18mm thickness
Product details
| Thermal Conductivity |
0.9W/m.K |
| Conductive Material |
Silicone, Fibreglass |
| Thickness |
177.8µm |
| Thermal Impedance |
1.82°C/W |
| Dielectric Strength |
- |
| External Length |
304.8mm |
| External Width |
304.8mm |
| Product Range |
- |
Other details
| Brand |
BERGQUIST |
| Part Number |
SP400-0.007-00-1212 |
| Quantity |
Each - 1 unit |
| Technical Data Sheet EN |
 |
| Safety Data Sheet EN |
|
