| ₹ 887553.01 includes GST and import duties. | |
| B2B customers can avail ₹ 135351.83 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

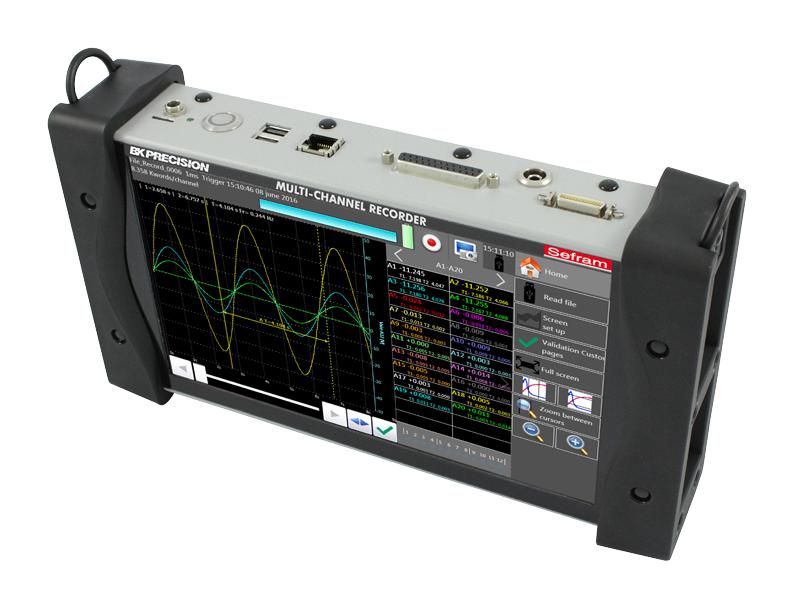

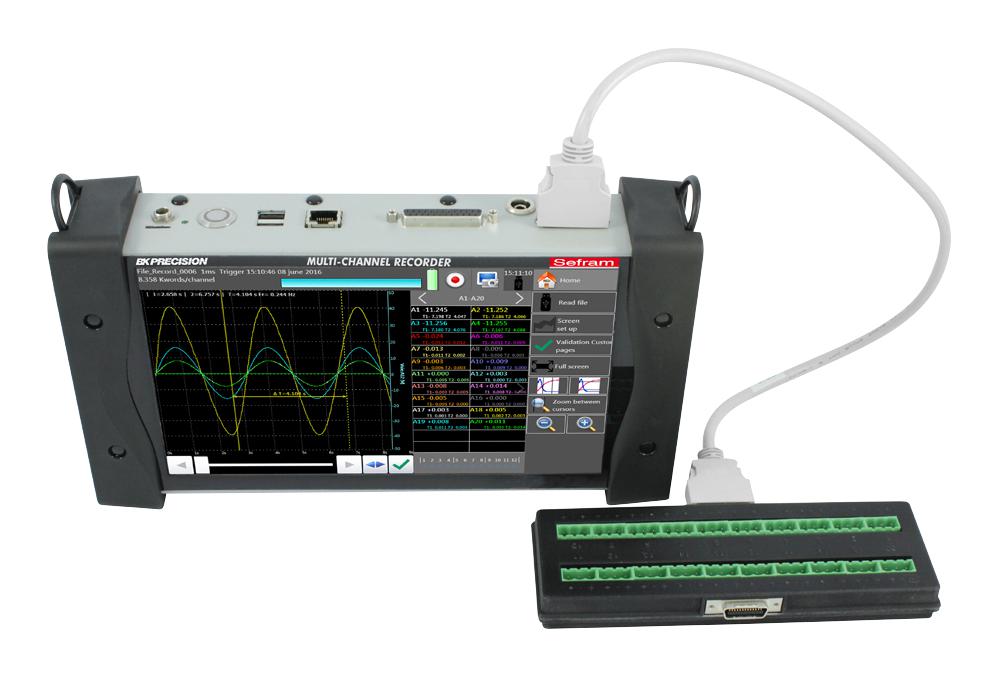

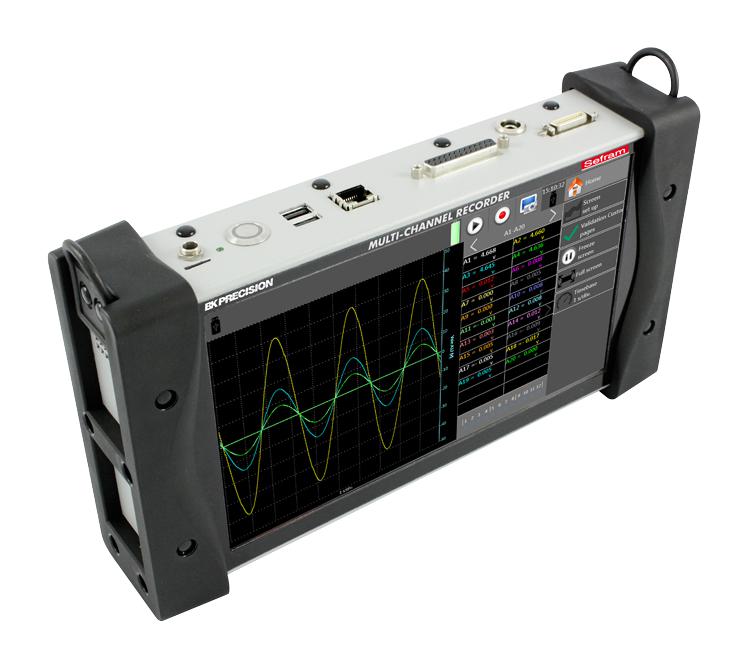

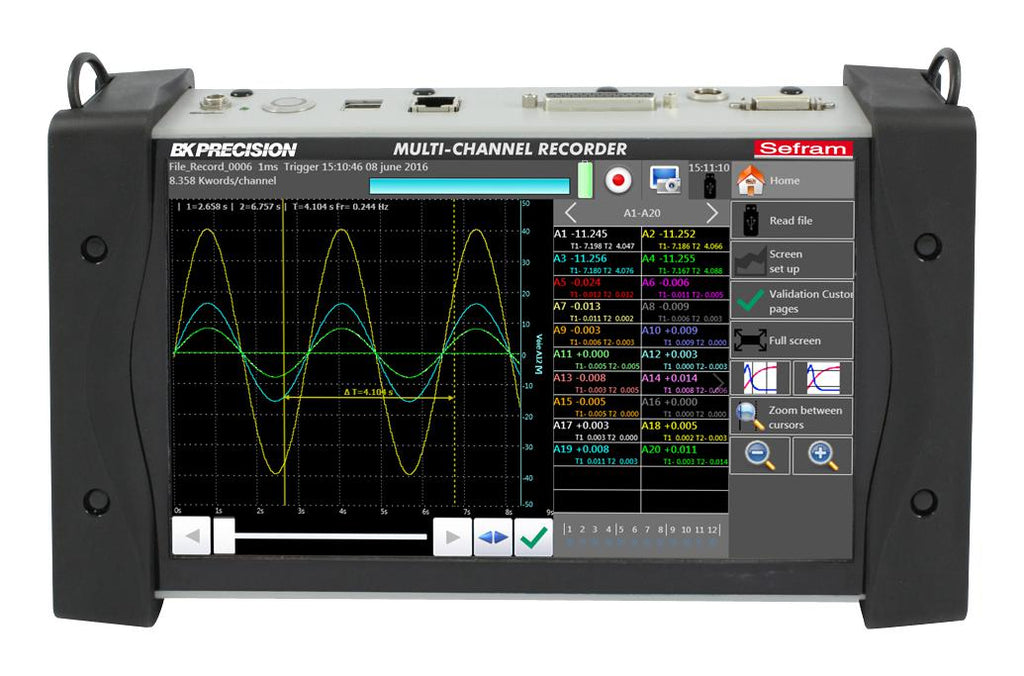

Data Acquisition Solution DAS240 is the right answer for your recording needs. With its adjustable channel configuration up to 200 channels and 12 logical inputs the DAS240 has been designed to measure all parameters you can find in a industrial process: voltage measurements, measurements on sensors (0-10V), temperature measurements (thermocouples, Pt100-1000), current measurements (with optional shunt), resistance measurements, pulse counter, frequency. You can view directly the results of measurements (graphs, numerical values) and memorize your results in the recorder or in a USB memory stick. The data transfer, data processing, remote setup can be done with the licence-free DasLab software.
- 20 to 200 analogue channels
- Input : voltage, thermocouple, Pt100-1000, current (with optional adapter), resistance
- Voltage: from 1mV to 200V (±100V)
- Temperature: thermocouples (all types), Pt100-1000 (2 or 3 wires)
- 16 Bit vertical resolution
- Max sampling rate: 1ms (1kHz)
- 12 logical channels 4 alarms (output)
- 4 logical function input with counter & frequency meter capability
- 10" TFT panoramic touch screen
- Internal hard drive : 32 GB
- Interfaces: 2xUSB, Ethernet, Wifi (option)
- Safety: IEC61010 CAT I 100V
Applications
Test & Measurement
Product details
| No. of Channels: 20Channels |
| Sampling Rate: 1kSPS |
| Input Voltage Max: 200V |
| Input Current Max: - |
| Bandwidth: 10kHz |
| External Height: 176mm |
| External Width: 298mm |
| External Depth: 66mm |
| Product Range: - |
Other details
| Brand | SEFRAM |
| Part Number | DAS240 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 869801.95 |
| 3-5 | ₹ 860926.42 |
| 5-10 | ₹ 843175.36 |
| 10+ | ₹ 825424.3 |
Bulk discount will be automatically applied during checkout based on quantity.
