Description

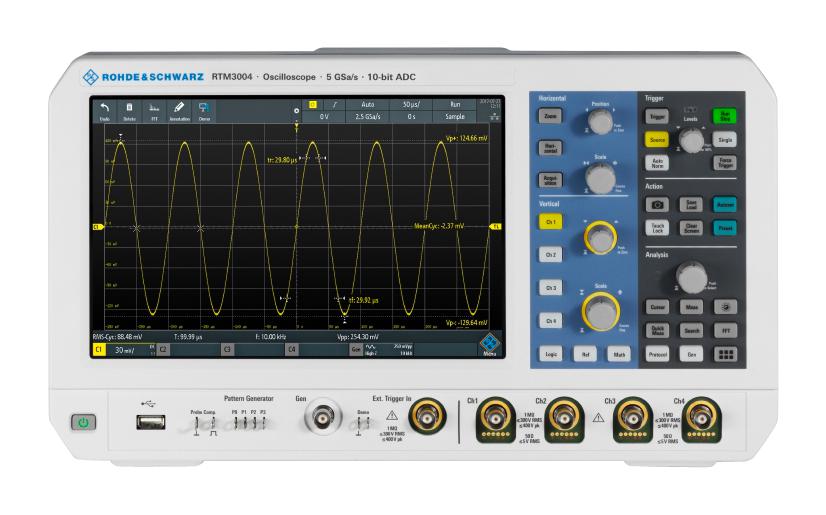

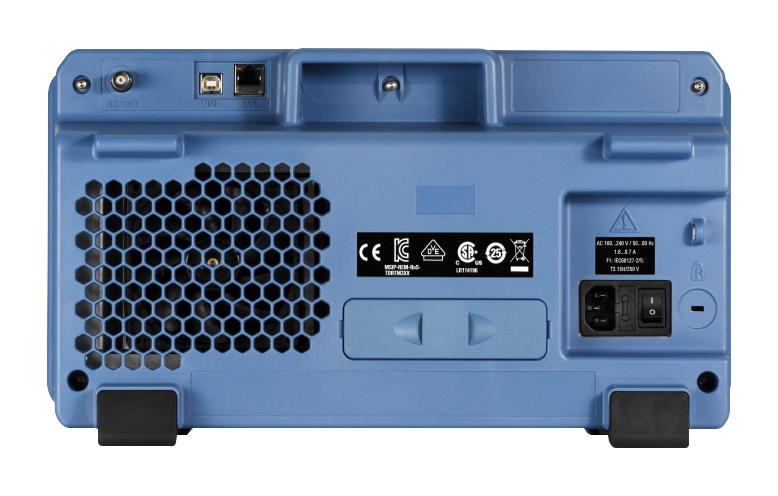

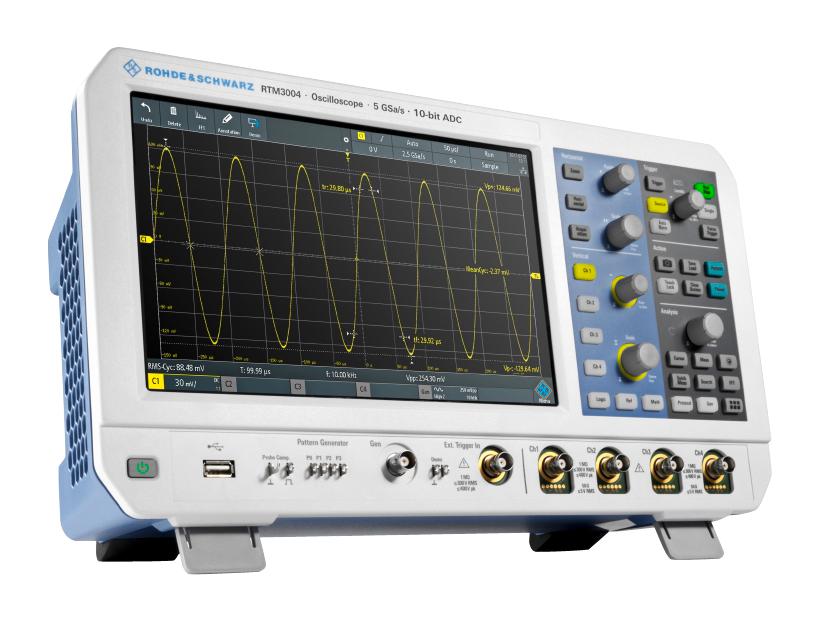

The RTM3K-54M from Rohde & Schwarz is a RTM3000 series, 4 channel digital oscilloscope with RTM-B245 500MHz bandwidth upgrade and mixed signal oscilloscope (MSO) option. It features 10.1" high resolution (1280 x 800 pixels) capacitive touchscreen TFT display with gesture support, 10bit ADC and 40Msample/channel standard, 80Msample interleaved memory depth. The oscilloscope includes a wide range of upgrade options.
- 400Msample segmented acquisition memory (optional)
- Maximum sampling rate of 2.5Gsample/s per channel, 5Gsample/s interleaved
- Waveform update rate is 64000waveforms/s
- Minimum input sensitivity is 500µV/div
- 10 second boot time
- I2C, SPI, UART/RS232/ RS422/RS485, CAN, LIN, audio (I²S), ARINC, MIL protocols (optional)
- Arbitrary waveform and 4bit pattern generator optional
- Standard digital voltmeter and trigger counter
- LAN, USB host/device, fast display over Ethernet connectivity
- Oscilloscope size is 390mm x 220mm x 152mm (W x H x D)
Medical
ContentsRTM3004 oscilloscope, RTM-B245 bandwidth upgrade, RTM-B1 MSO, 500MHz passive probe per channel, Power cord.
Footnotes In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.Other details
| Brand | ROHDE & SCHWARZ |
| Part Number | RTM3004 + RTM-B245 + RTM-B1 (RTM3K-54M) |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Reference Manuals EN | |
| Operating Instructions EN | |
| Application Note EN | |
| Manufacturer Catalogue EN | |
| Miscellaneous EN | |
| Enhanced Product Overview EN | |
| Certificate of Conformity EN | |
| Software EN | |
| Application Note 2 EN | |
| Programming Manual EN | |
| Declaration of Conformity EN | |
| Selection Guide EN | |
| User Manual EN | |
| One Page Summary EN | |
