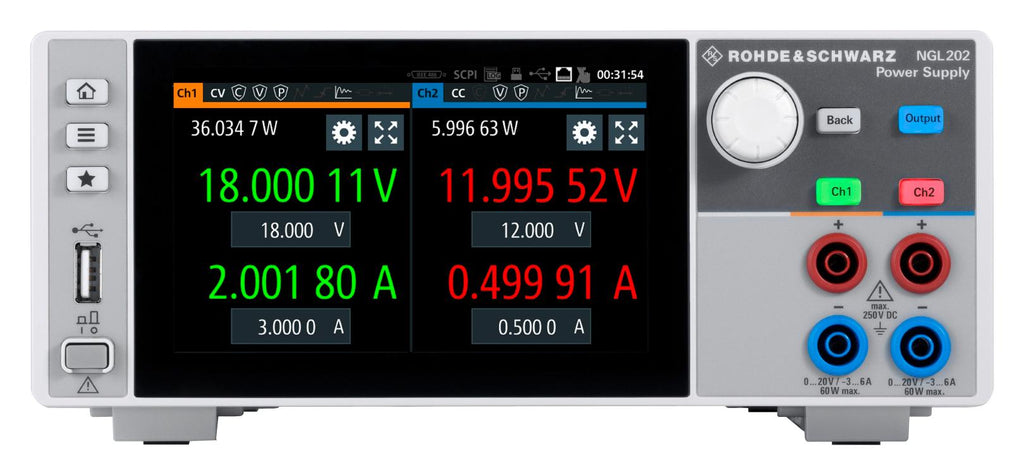

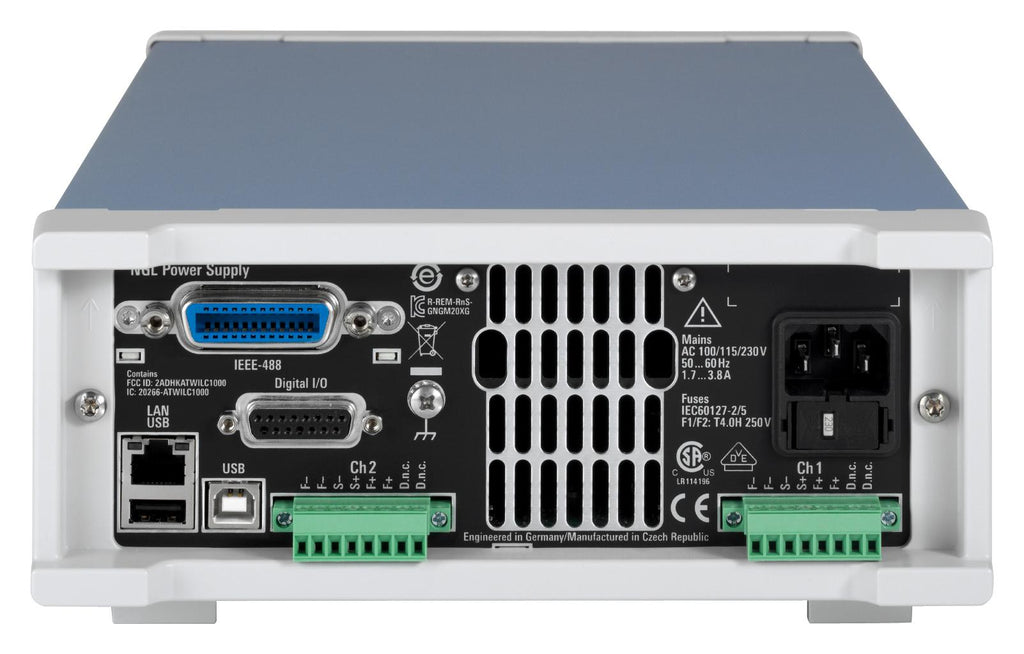

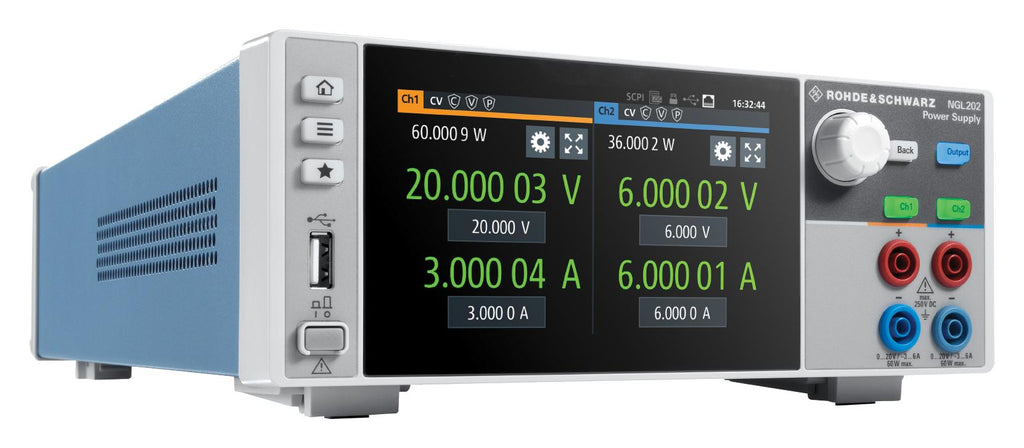

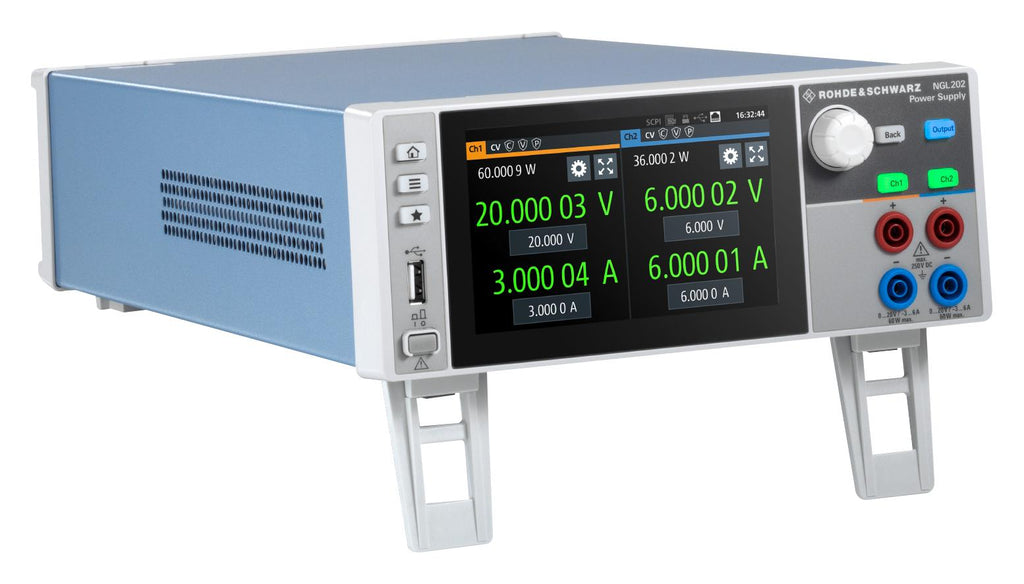

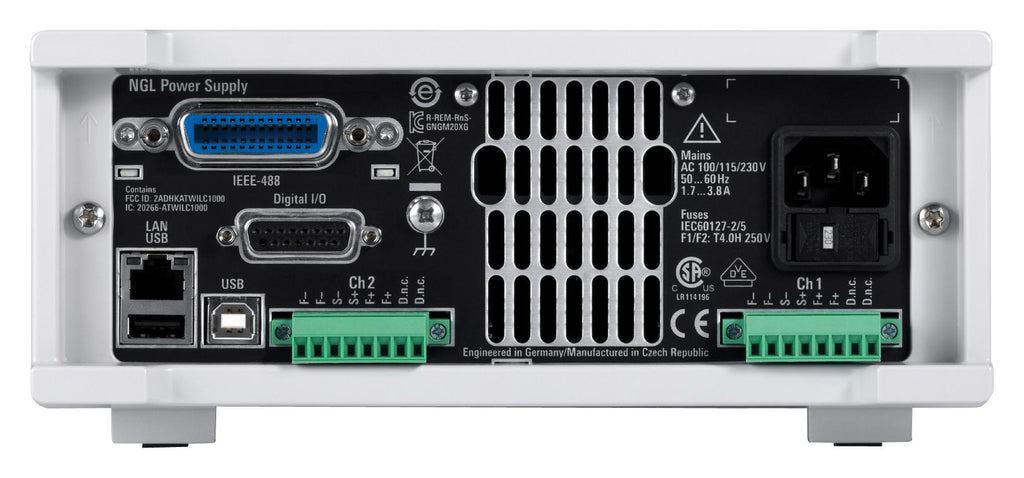

Rohde & Schwarz NGL-COM2B Bench Power Supply Adjustable 2 Output 0 V 20 6 A

NGL-COM2B is a bundle of NGL202 power supply with software options (digital trigger I/O). NGL202 is a NGL200 series high precision source and sink power supply. NGL200 power supplies are perfect for challenging applications. Their two-quadrant architecture allows them to function both as a source and a sink to simulate batteries and loads. Their short recovery times enable them to handle fast load changes that occur for example when mobile communications devices switch from sleep mode to transmit mode.

• Fast load regulation, minimum residual ripple and low noise
• Readings with up to 6½ digit resolution
• TFT 5'' 800 x 480 Pixel WVGA capacitive touch screen with intuitive user interface
• Protection functions to safeguard instrument and DUT
• Galvanically isolated, floating channels
• Ideal for use in labs and test systems
• Tailored for use in labs and system racks
• Dimension is 222mm x 97mm x 436mm, weight is 7.3Kg
• 120W maximum output power, 0V to 20V voltage per channel, 6A maximum current per channel
• Complete package (not including Wi-Fi option) for general purpose applications

Contents

NGL202 power supply, NGL-K103 digital trigger I/O, Set of power cables, Quick start guide.

Other details

Brand	ROHDE & SCHWARZ
Part Number	NGL-COM2B
Quantity	1 Kit
Technical Data Sheet EN
Programming Manual EN
Manufacturer Catalogue EN
Assembly Instructions EN
Enhanced Product Overview EN
Technical Notes & Articles EN
Quick Start Guide EN
