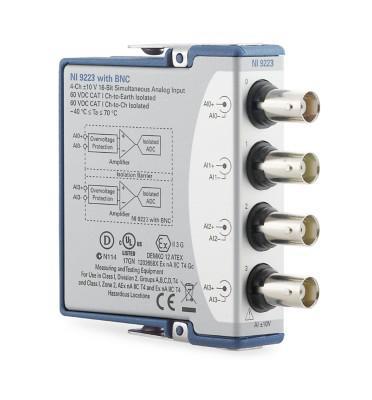

The NI-9223 performs differential analogue input. This module is well suited for applications such as ballistics, impact, and blast wave testing. The NI-9223 can sample at the maximum sample rate per channel while the module next to it samples at a much slower rate, which is ideal for mixed-measurement test systems. There are two connector options for the NI-9223: either four, 2-position screw terminal connectors or four BNC connectors.
Other details
| Brand |
NI |
| Part Number |
783284-01 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Quick Start Guide EN |
|
| Enhanced Product Overview EN |
|
