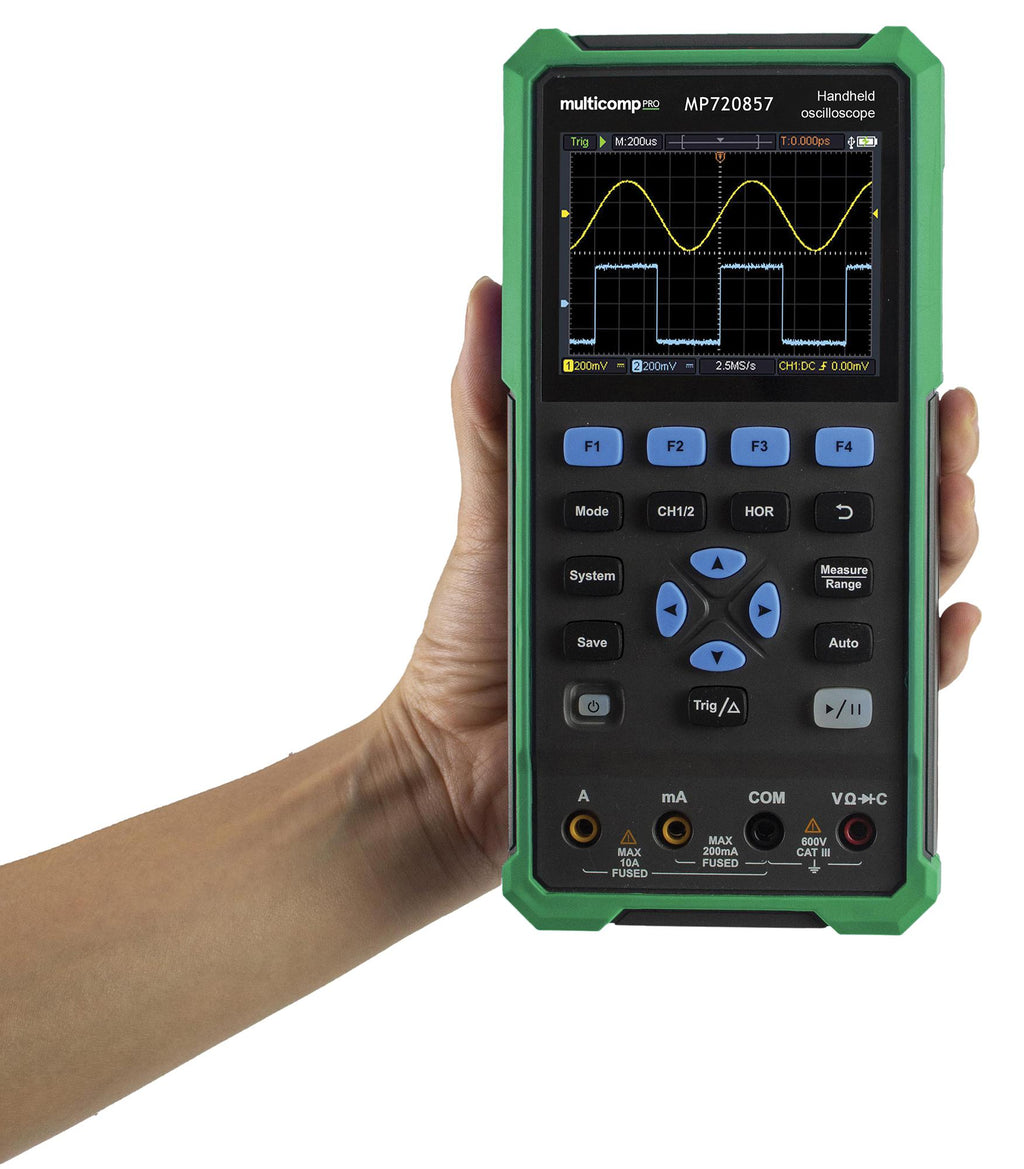

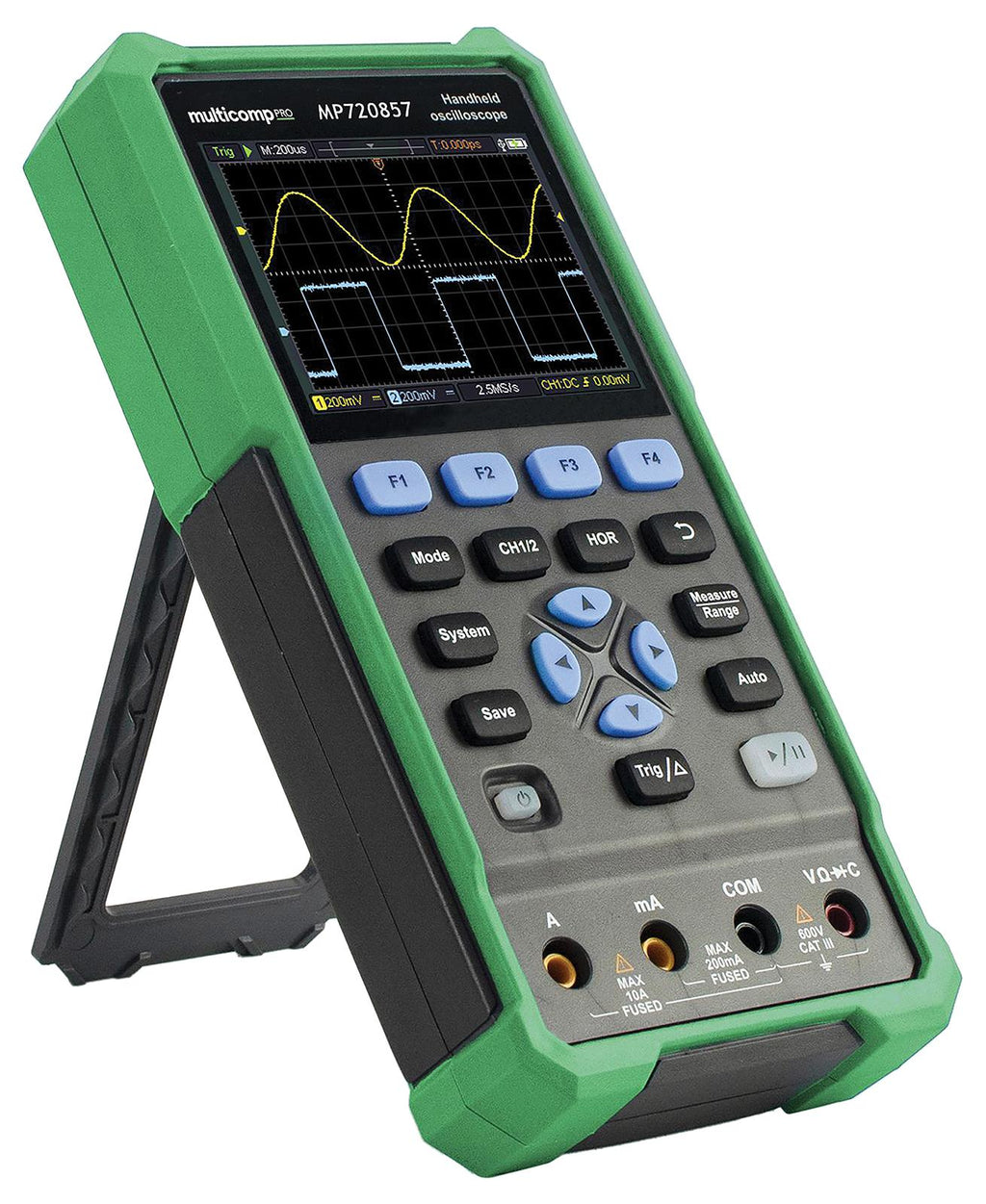

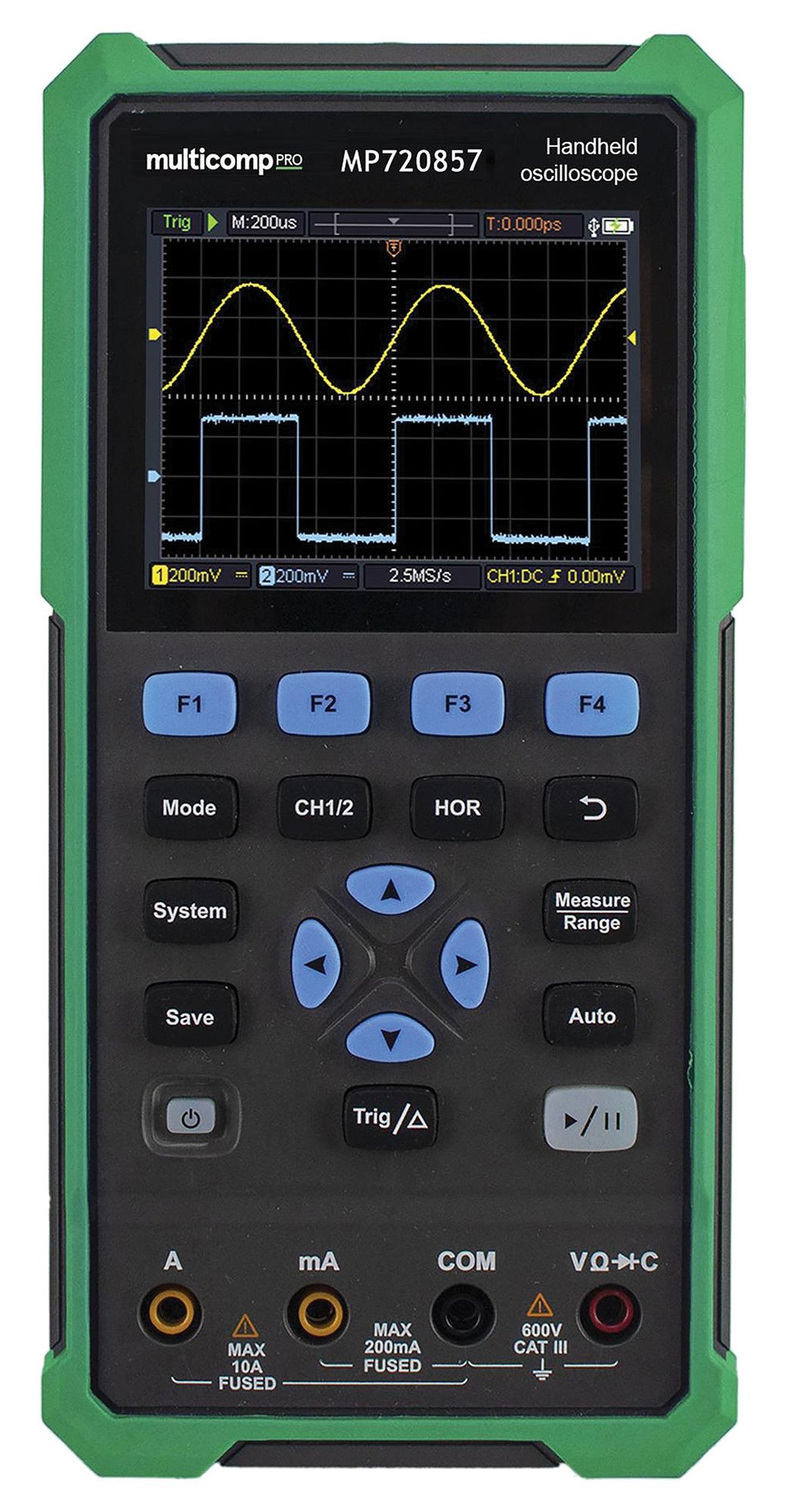

Multicomp PRO MP720857 Oscilloscope 2+1 Channel 100 MHz 500 Msps

Handheld digital oscilloscope suitable for outdoor maintenance, rapid on-site measurement, vehicle maintenance, and power detection.

• 100MHz oscilloscope, multimeter waveform generator, and multifunction in one
• 3.5" high resolution, high-contrast, colour LCD display, suitable for outdoor use
• Built-in lithium battery works continuously for 3-6 hours
• USB Type-C interface, supports power bank, and PC software connection
• Self-calibration function
• SCPI supported, facilitate secondary development
• 10,000wfms/s waveform refresh rate
• Max. 8K record length
• Multiple auto measurement functions
• One-key auto set function, easy to detect and debug
• Voltage, current, resistance, diode, capacitance, and continuity test
• Max. 750V AC, 1kV DC input voltage
• Independant input of multimeter and oscilloscope
• Reading hold function
• Relative measurement
• Output sine, square, ramp, pulse, and built-in special waveforms
• 0.1Hz frequency resolution
• 14-bit resolution, 12MSa/s high sampling rate
• 8K waveform length

Product details

Product Range	-
Scope Channels	2+1 Channel
Bandwidth	100MHz
Sampling Rate	500MSPS
Display Memory Depth	-
Calculated Rise Time	-
Scope Display Type	LCD
Kit Contents	Oscilloscope, USB cable, probe adjust, multimeter lead, bolt driver, probe, BNC to crocodile clip, and soft carry case
Manufacturer Warranty	-
Plug Type	-

Other details

Brand	MULTICOMP PRO
Part Number	MP720857
Quantity	Each
Technical Data Sheet EN
Operating Instructions EN
Software EN
