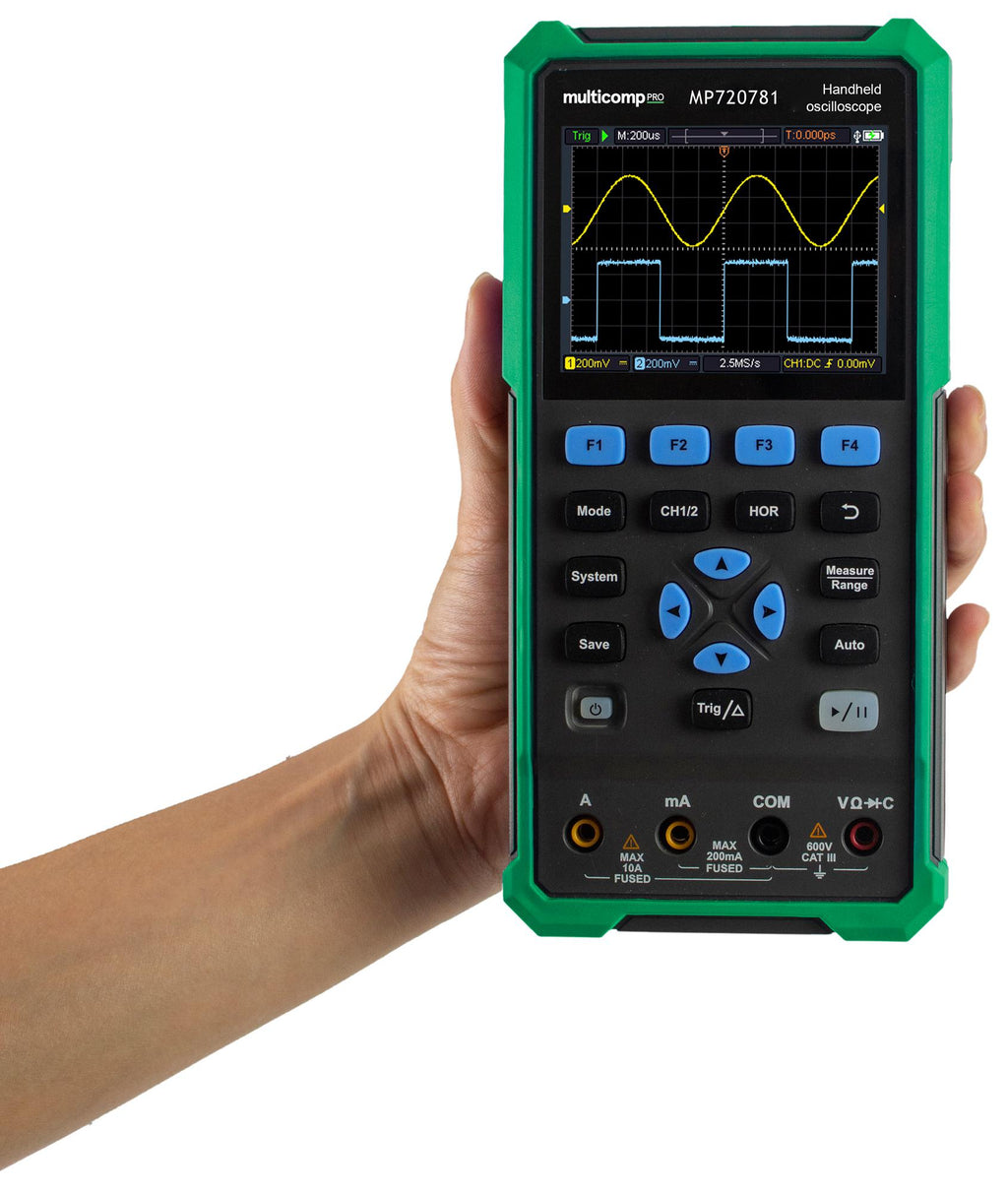

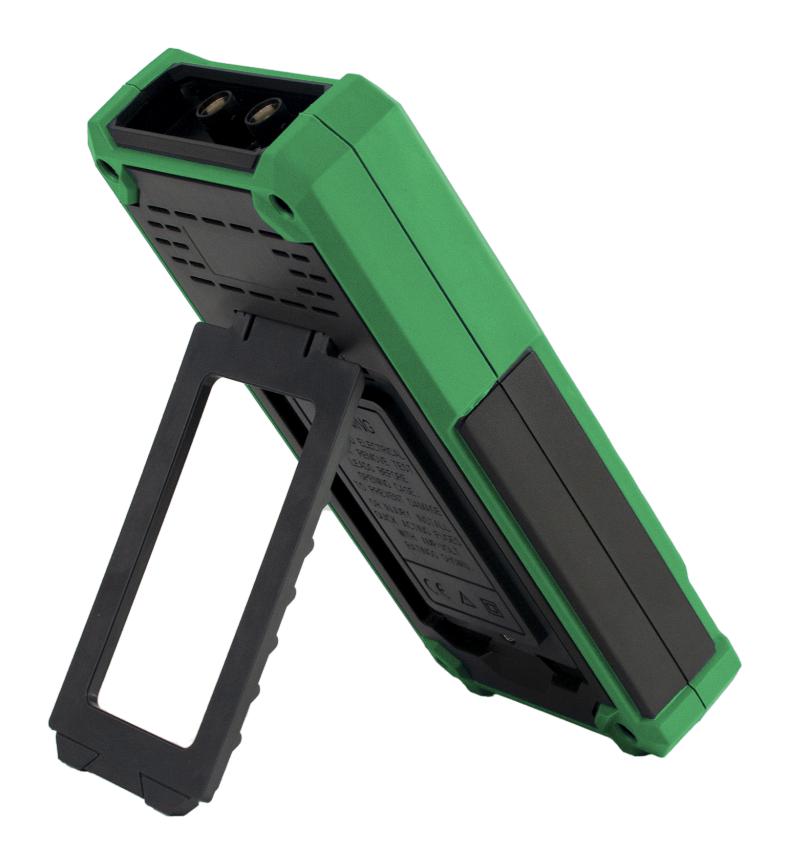

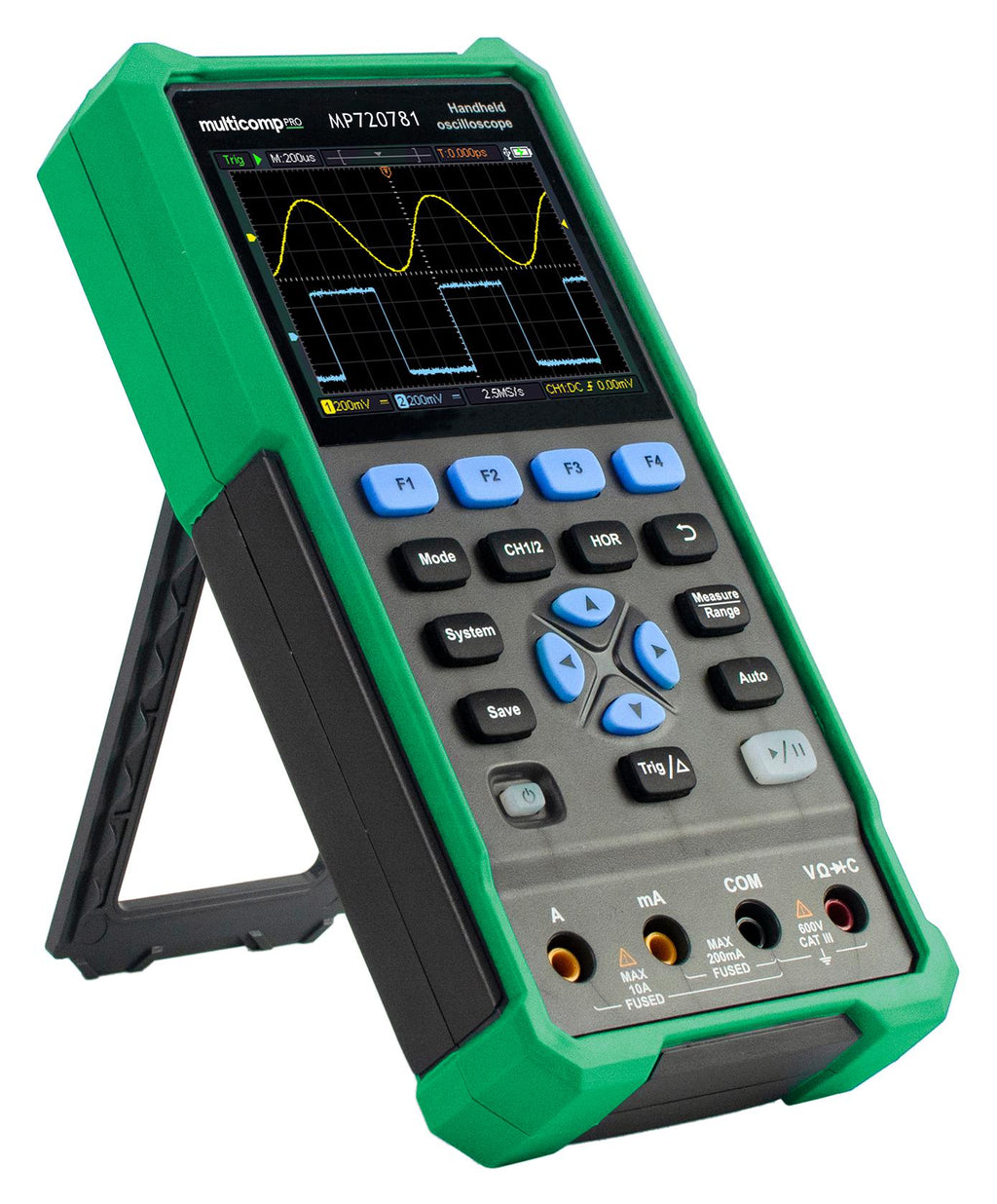

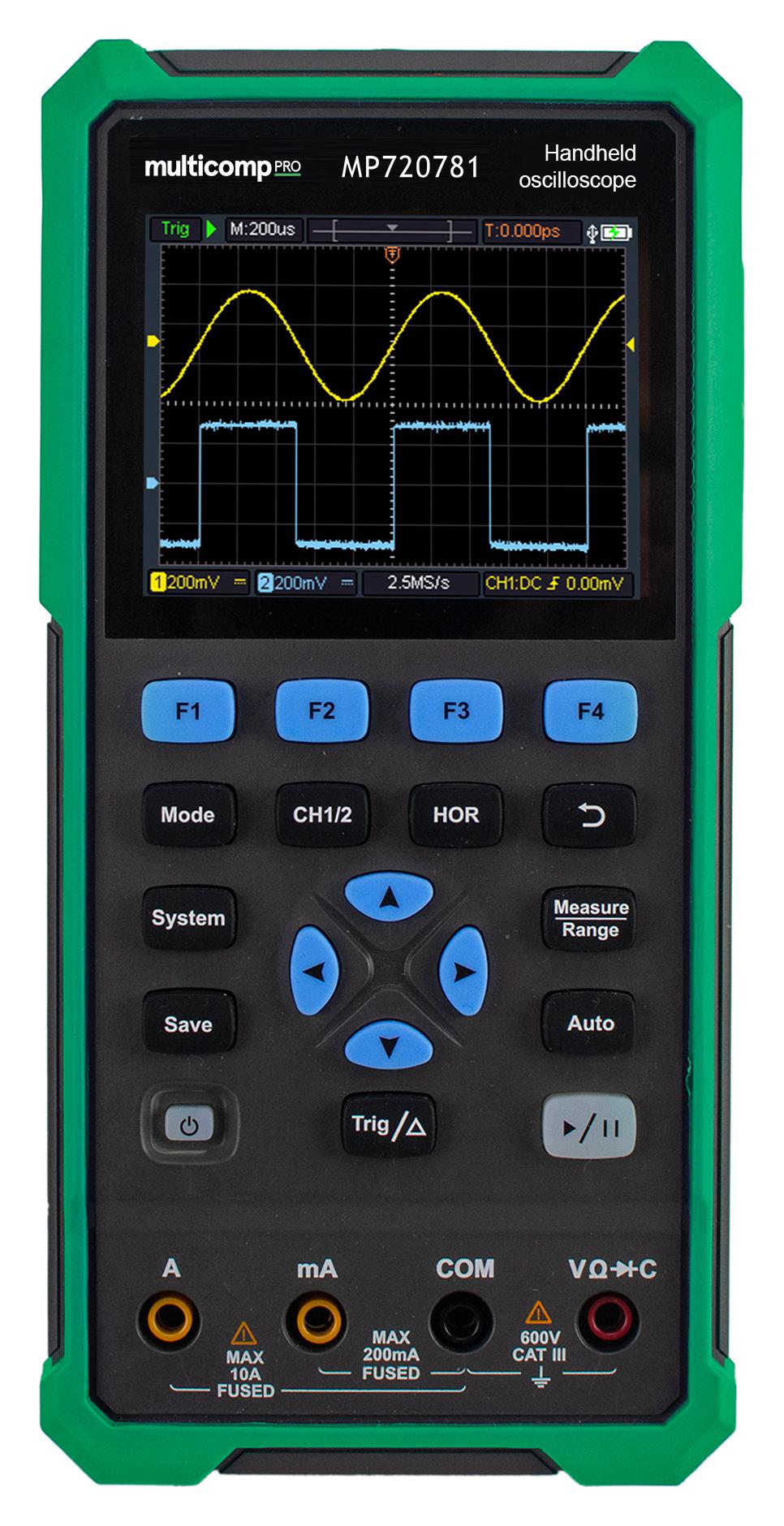

Multicomp PRO MP720781 MP720781 Handheld Digital Storage Oscilloscope DSO Series 2+1 Ch Signal Generator 40 MHz 250 Msps 6kpts

MP720781 from Multicomp Pro is a multi-function device offering both oscilloscope, digital multimeter and signal generator functionality. Features a 3.5" high resolution LCD display, USB type-C interface, self-calibration function and SCPI support.

• Digital multimeter function offers 4½ digits and V, A, ohm, farad, diode, continuity testing modes
• Signal generator function offers sine, square, ramp, arbitrary waveform (25/5/1/5MHz) frequency o/ps
• 250MSa/s sample rate
• Sample & peak detect acquisition model
• 6K record lengths
• 10,000wfrms/s waveform refresh rate
• DC, AC, ground input couplings
• Edge trigger type
• Auto, normal, single trigger models

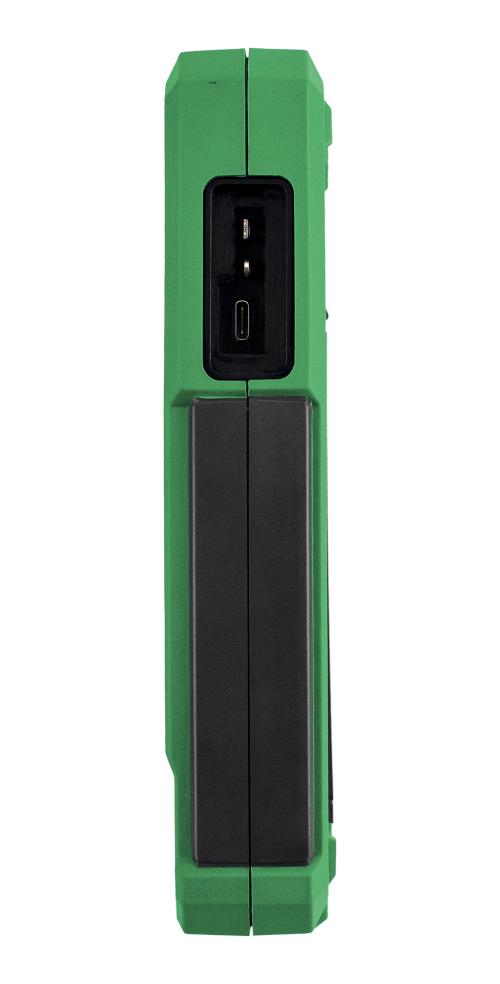

• USB type-C communication interface
• AC 750V, DC 1000V maximum input voltage (DMM)
• DC 10A, AC 10A maximum input current (DMM)
• Display resolution - 320 x 240
• Device dimensions - 198mm x 96mm x 38mm
• Device weight - 0.6kg (without battery)

Applications

Test & Measurement, Laboratory, Education, Hobby & Education

Contents

Handheld oscilloscope, EU/UK power cord, Quick guide, Test probe, USB cable, Multimeter leads, Probe adjust tool, BNC plug to alligator clips cable, Soft bag.

Footnotes To avoid overheating of the battery during charging, the ambient temperature must not exceed the allowable value given in the technical specifications.

Other details

Brand	MULTICOMP PRO
Part Number	MP720781
Quantity	Each
Technical Data Sheet EN
Quick Start Guide EN
User Manual EN
Software EN
Operating Instructions EN
