Description

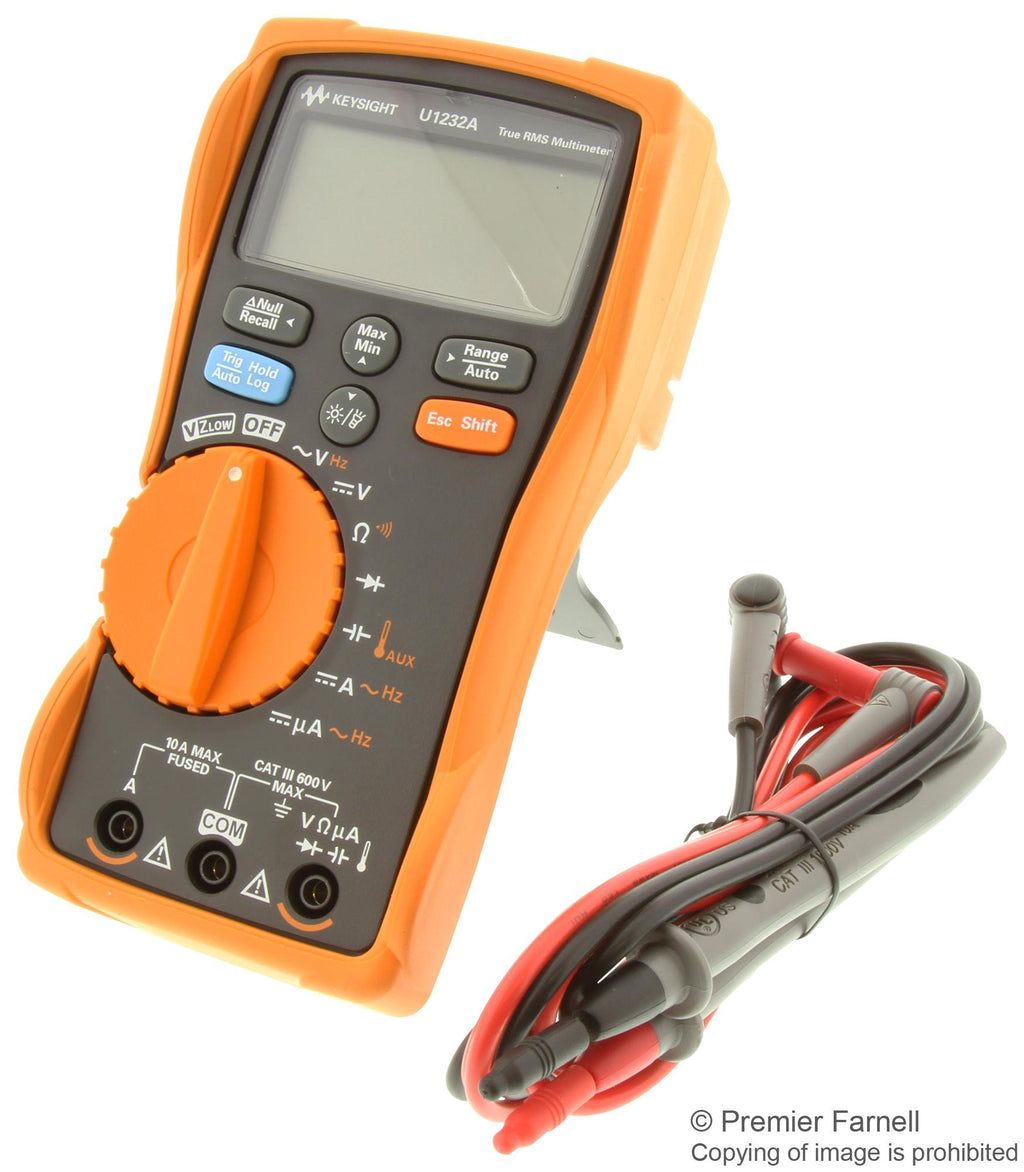

Whether it is dark, noisy or even dangerous, this handheld digital multimeter keeps you equipped with features that anticipate worst case scenarios. The ergonomic shaped handheld allows you to single-handedly illuminate the test area with a built-in flashlight while selecting measurement functions using the rotary dial. Vsense performs non-contact voltage detection while continuity detection is made easy with the audible beeper alert and flashing backlight display. With this DMM, you work better in the conditions you are in.
- Built-in LED flashlight to illuminate test area
- Flashing backlight as additional visual alert during continuity tests in noisy environments
- Vsense to perform non-contact voltage detection
- Data logging capability (stores up to 10 readings)
- IR-to-USB connectivity to transfer data to PC for record
Applications
Industrial, Maintenance & Repair, Test & Measurement
Contents
Quick Start Guide, Certificate of Calibration (CoC), U1167A 4 mm Tips probes test leads, 4 x 1.5 V batteries
Product details
| Voltage Measure AC Max | 600V |
| Resistance Measure Max | 60Mohm |
| Current Measure AC Max | 10A |
| DMM Functions | AC/DC Current, AC/DC Voltage, Capacitance, Diode, Frequency, Resistance |
| Voltage Measure DC Max | 600V |
| Warranty | 3 Years |
| Current Measure DC Max | 10A |
| Product Range | U1230 Series |
| Range Selection | Auto, Manual |
| No. of Digits | 4 |
| Display Count | 6600 |
| DMM Response Type | True RMS |
Other details
| Brand | KEYSIGHT TECHNOLOGIES |
| Part Number | U1232A |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Application Note EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 38379.15 |
| 3-5 | ₹ 37987.53 |
| 5-10 | ₹ 37204.28 |
| 10+ | ₹ 36421.03 |
Bulk discount will be automatically applied during checkout based on quantity.
