Keysight Technologies E36105B E36105B Bench Power Supply Programmable 1 Output 0 V 60 A 600 mA

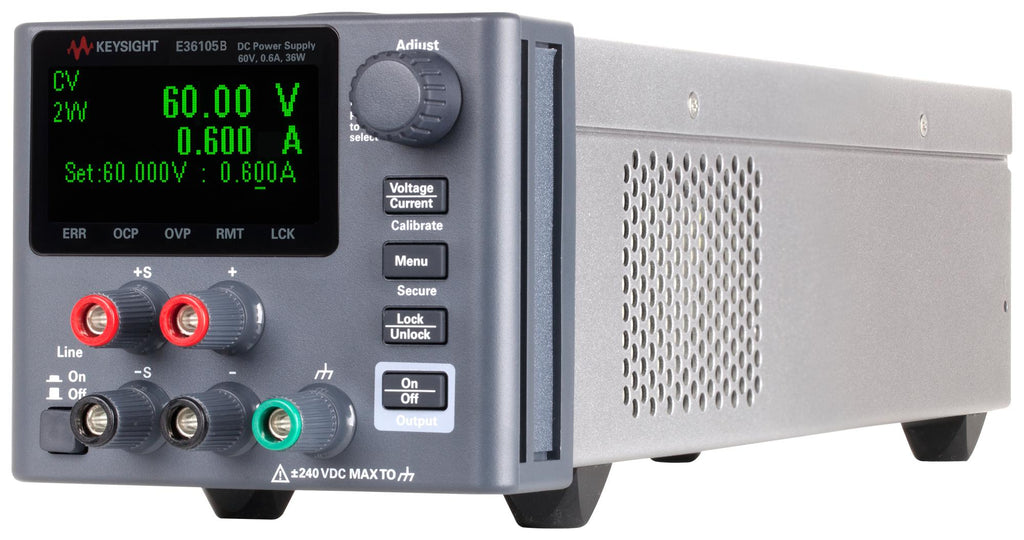

The E36105B from Keysight Technologies is an E36100 series single output programmable DC power supply. It is space saver on bench, 2U ¼-form factor power supply. It features a rotary knob for quick and easy configuration, connect for computer control with standard LAN (LXI Core) and USB connectivity, perform manual tasks quickly with the intuitive on-screen menu system, easily view the high contrast OLED display from anywhere on bench even from a sharp angle, protect device under test (DUT) with overvoltage and over-current detection, power DUT with confidence through excellent accuracy in programming and readback, accurate and reliable power, fast voltage/current setting and front-panel electronic calibration. Product comes with 3 years warranty.

• DC output rating (0 to 40°C): 60V maximum voltage, 0.6A maximum current
• Output ripple and noise (20Hz to 20MHz): 1.55mV RMS, 30mV Pk-Pk
• Load regulation ± (% of output + offset): <0.01% + 10mV voltage, <0.02% + 30µA current
• Line regulation ± (% of output + offset): <0.01% + 7mV voltage, <0.02% + 30µA current
• Front panel lock prevents accidental changes during tests
• AC input: 100, 115 or 230V input (±10%), 47 to 63Hz, 200VA
• Operating temperature range from 0 to 40°C

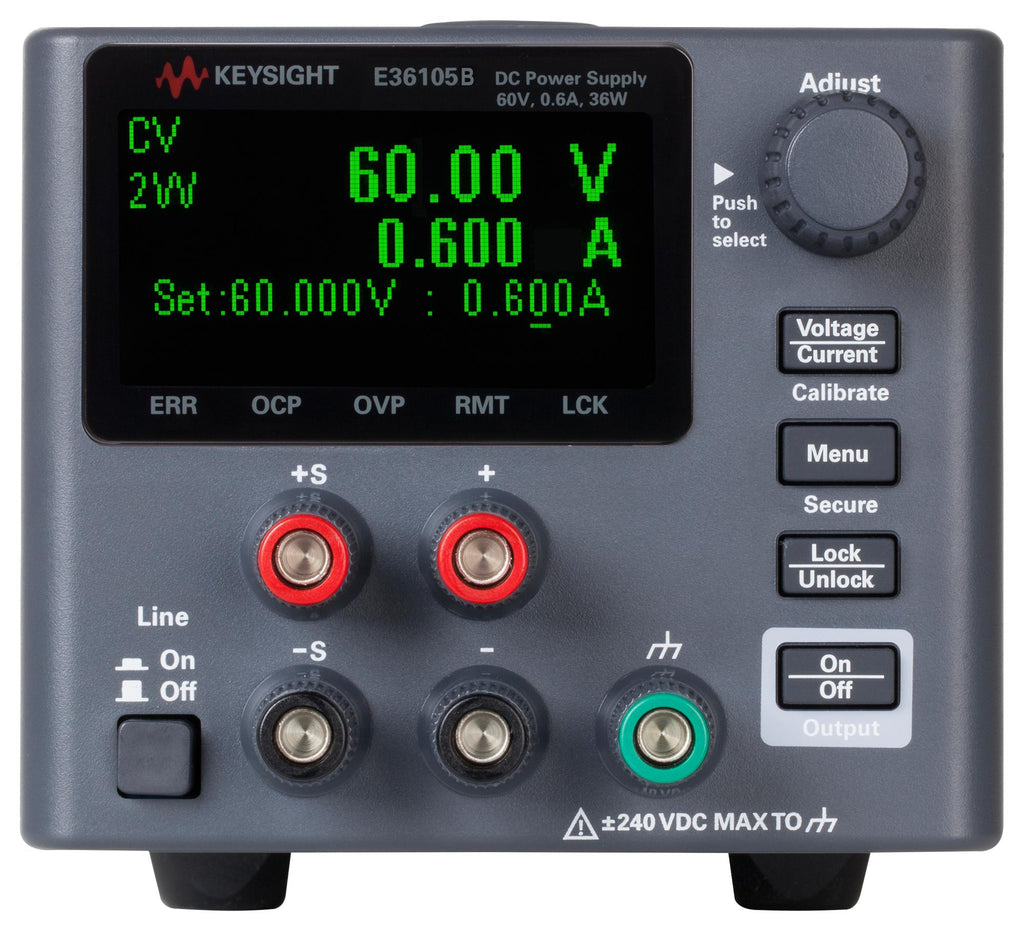

• Output terminals, sense terminals, dual-position power switch
• Earth ground reference point, output enable/disable switch to protect your DUT quickly
• Overall dimensions is 2U, 1/4 rack (102 x 106 x 365mm) (H x W x D), 3.6Kg
• Ability to measure small currents
• Rack Mount Kit is available

Contents

A BenchVue software license (BV0003B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences. E36105B DC power supply, AC power cord.

Footnotes In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.

Other details

Brand	KEYSIGHT TECHNOLOGIES
Part Number	E36105B
Quantity	Each
Technical Data Sheet EN
Manufacturer Catalogue EN
Enhanced Product Overview EN
