Description

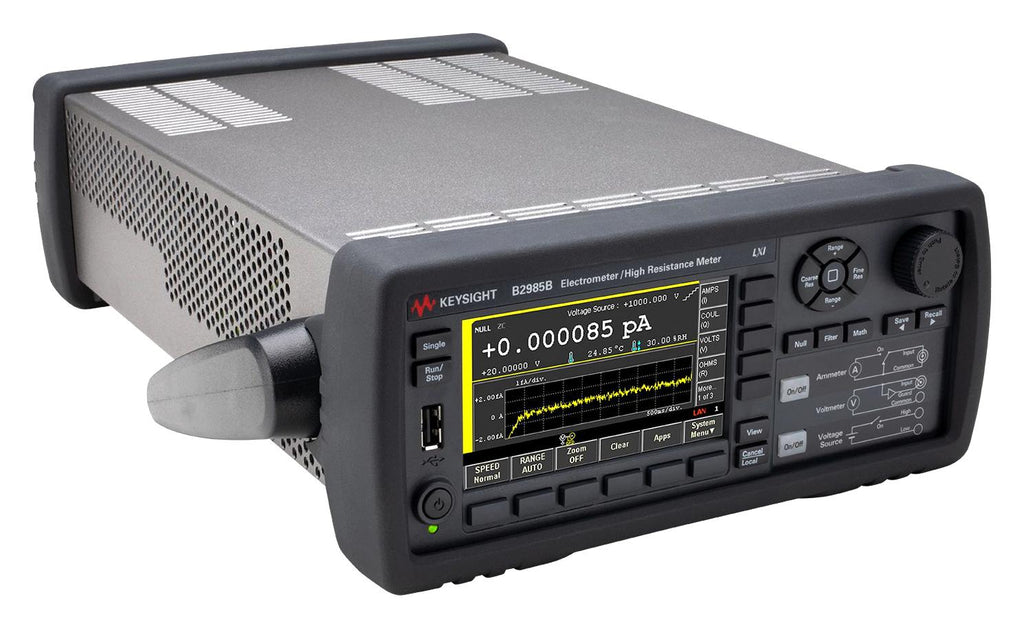

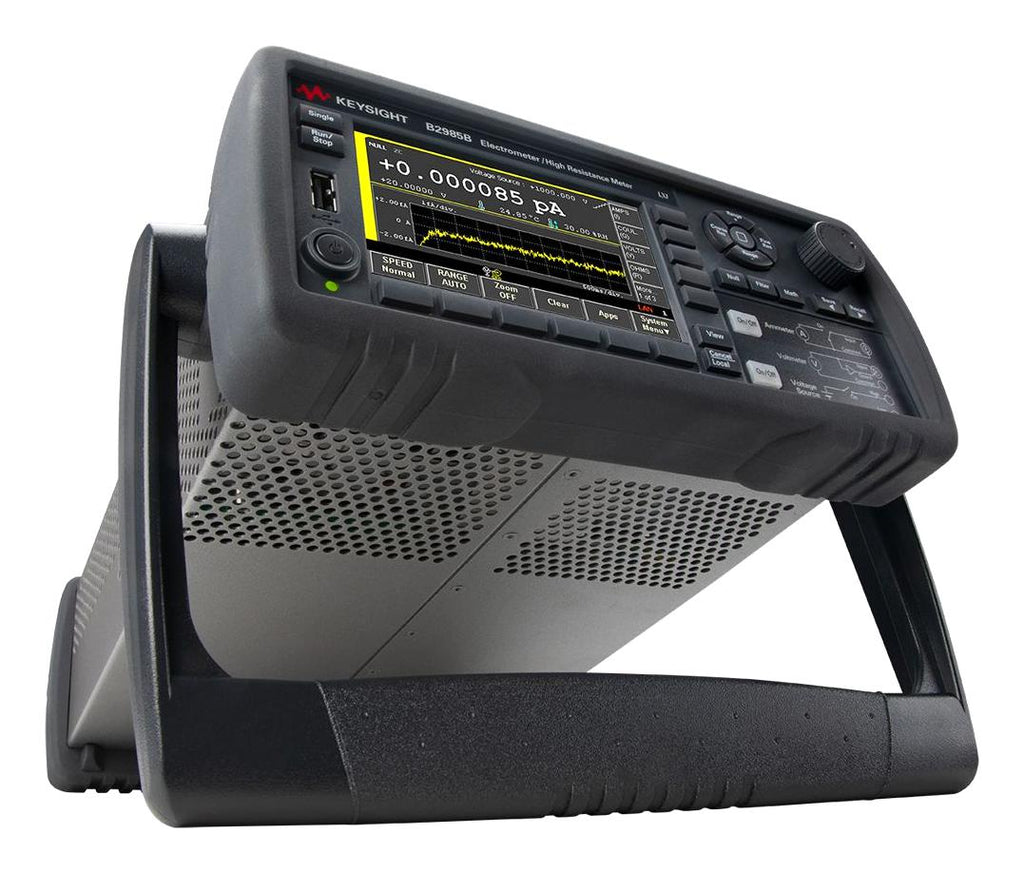

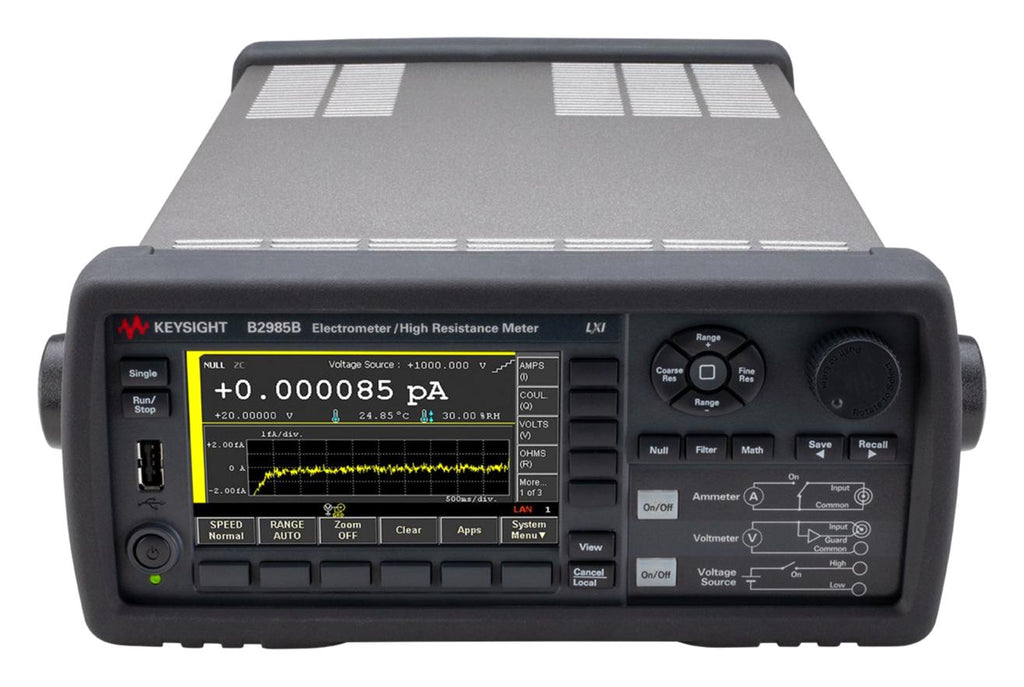

B2985B electrometer/high resistance meter is the world's only graphical electrometer that allows you to confidently measures small currents with 0.01fA (0.01 x 10-15A) resolution and large resistances of up to 10Pohm (10 x 1015ohm). It possesses a 4.3" colour LCD with a graphical user interface that provides trend chart and histogram data in addition to numeric information. These front-panel capabilities enable you to capture transient behaviour and to perform quick statistical analyses without a PC. The available Setup Integrity Checker software option allows you to compare the noise levels of different cabling and fixturing arrangements to help isolate external noise sources.
- 20,000 readings/s
- Time domain view to capture transients
- Histogram view to perform quick data analysis
- Other X-Y plots (I-V, I-t, R-t, Q-t, I-R, etc.)
- Setup integrity checker software (option)
- Easy-to-use auto navigation
- Real-time noise monitor
Contents
B2985B electrometer/high resistance meter, Power cable, USB cable, Triax cable (1.5m), Ground connection cable, Banana to screw-lug, Earthing wire(2m), Open cap for Triax connector, High voltage test leads, alligator clips, thermocouple, Interlock connector head, humidity probe connector head.
Product details
| No. of Digits: 6.5 |
| DMM Connectivity: GPIB, LAN / LXI, USB |
| Current Measure AC Max: 20mA |
| Voltage Measure AC Max: 20V |
| Resistance Measure Max: 10pohm |
| Product Range: B2980B Series |
| Current Measure DC Max: 20mA |
| Voltage Measure DC Max: 20V |
| Manufacturer Warranty: 3 Years |
| DMM Functions: AC/DC Current, AC/DC Voltage, Humidity, Resistance, Temperature |
| Plug Type: EU, UK |
Other details
| Brand | KEYSIGHT TECHNOLOGIES |
| Part Number | B2985B |
| Quantity | Each |
| Technical Data Sheet EN |  |
