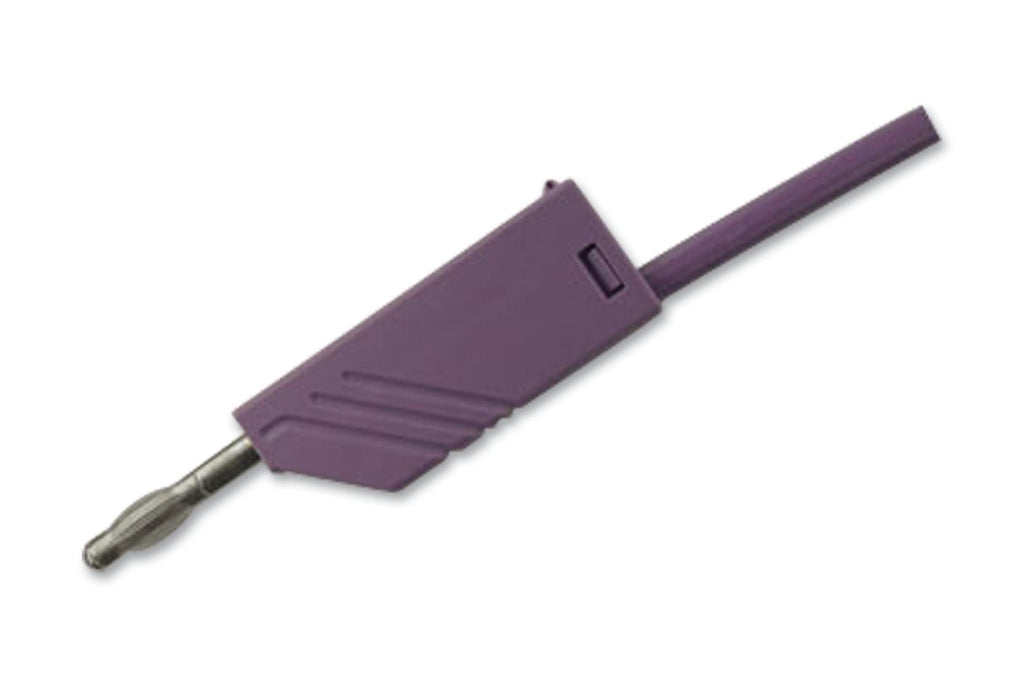

The 934063109 is a Measuring Lead with 4mm diameter plug at both ends, caged spring and 4mm diameter socket for tower construction. Nickel-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, grip and lead shatter-proof. Built in colour indicator for easy identification of insulation damages.
- MLN 100/2.5 type
- Rated voltage: 30VAC / 60VDC
- Polyamide housing
- UL94V-2 Flammability rating (only valid for basic material of housing)
- 12mR Contact resistance
- -15°C to +70°C Temperature range
- (1) for normal environmental conditions -5°C to +40°C
- (3) without rated measurement category, for other circuits that are not directly connected to mains
Product details
| Test Connector Type A |
4mm Stackable Banana Plug |
| Test Connector Type B |
4mm Stackable Banana Plug |
| Lead Length - Imperial |
3.3ft |
| Lead Length - Metric |
1m |
| Insulator Colour |
Violet |
| Current Rating |
32A |
| Voltage Rating |
60VDC |
| Product Range |
- |
Other details
| Brand |
HIRSCHMANN TEST AND MEASUREMENT |
| Part Number |
934063109 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
