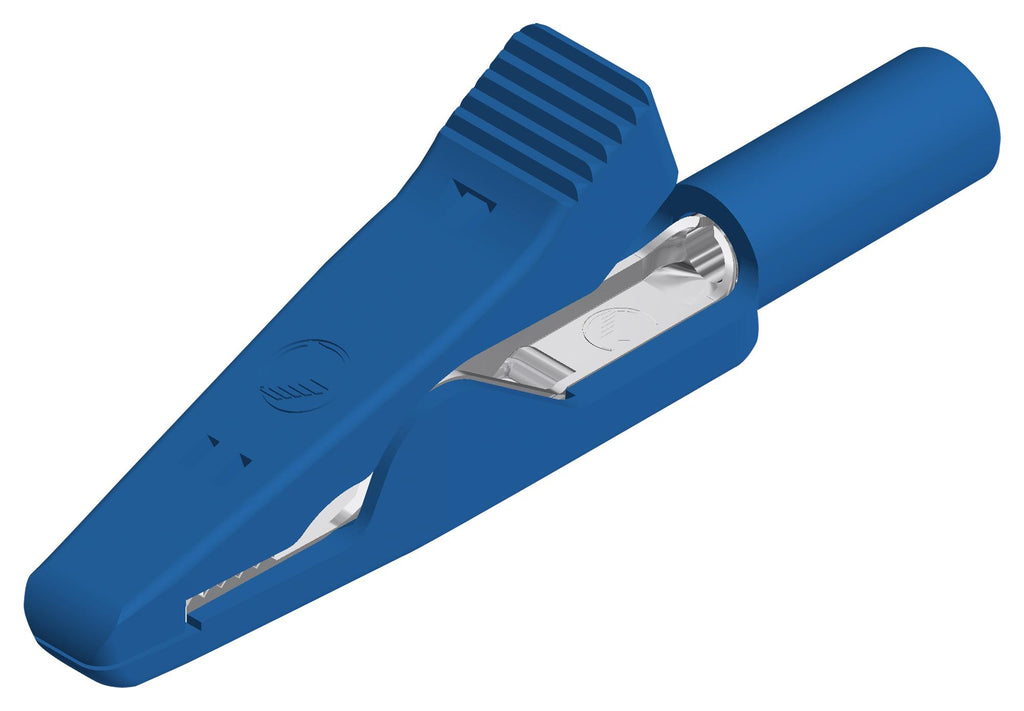

Miniature alligator clip with high strength insulation and nickel-plated brass/bronze jaws. The part of the jaws (fine wire section) allows a secure contect to be made when clamping even the thinner wire. Capable of clamping flat components (soldering eyes) and wire up to a maximum diameter of 4mm.
- 2 mm system
- Crocodile clips
- 2 mm socket connection
- 30 VAC / 60 VDC rated voltage (1)
- O (3) measurement cat. acc. to IEC 61010
- 8 A rated current (1)
- PP housing material
- (1) for normal environmental conditions -5°C to +40°C
- (3) without rated measurement category, for other circuits that are not directly connected to mains
Product details
| Connector Type |
Crocodile Clip |
| Current Rating |
8A |
| Jaw Opening Max |
4mm |
| Insulator Colour |
Blue |
| Product Range |
MA 1 Series |
Other details
| Brand |
HIRSCHMANN TEST AND MEASUREMENT |
| Part Number |
930317802 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
