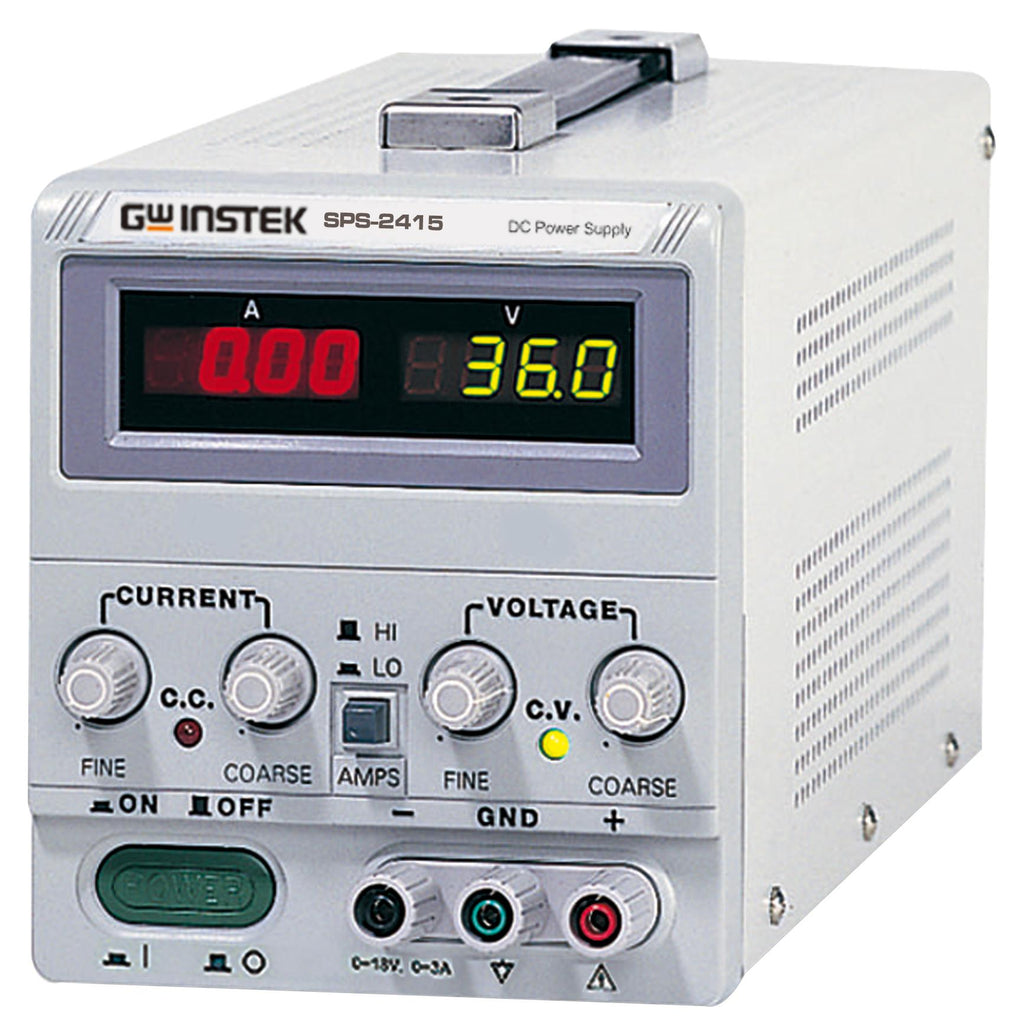

GW Instek SPS-2415 Bench Power Supply Adjustable 1 Output 0 V 24 A 15

The SPS-2415 from GW Instek is a 360W single output switching DC power supply. OVP protects the SPS-series and their load from unexpected conditions. High regulation is maintained at 0.01%. Remote sensing adds extra level of precision by compensating cable losses between loads. Turning the output On/Off from external device is available through remote control terminals. It is an ideal solution for power-efficient bench-top or portable applications requiring high regulation.

• Output voltage of 0V to 24V, output current of 0A to 15A
• Dual measurement display
• Constant voltage and constant current operation
• High efficiency, high power density
• Remote output ON/OFF control
• 3 1/2 digit, 0.39" LED display
• Power source AC 115V/230V ±15%, 50/60Hz
• Dimension is 128mm (W) x 145mm (H) x 285mm (D)
• Weight is 3.2Kg
• Zero adjustment for the output of voltage and current

Applications

Test & Measurement

Contents

SPS-2415 switching DC power supply, User manual x 1, Power cord x 1, Test lead GTL-203 x 1.

Footnotes In addition, we have calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.

Other details

Brand	GW INSTEK
Part Number	SPS-2415
Quantity	Each
Technical Data Sheet EN
