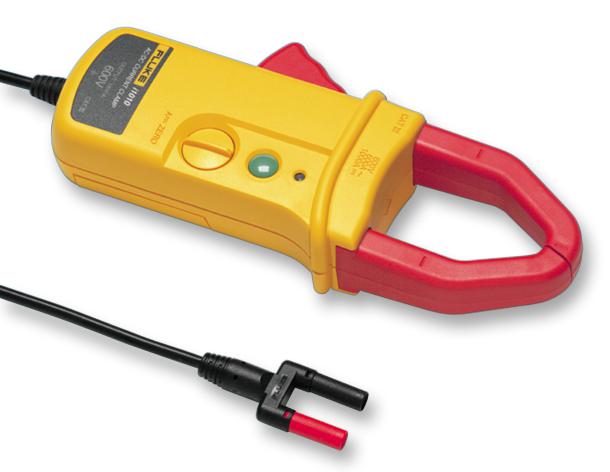

The i1010 AC/DC Current clamps for DMMs.
- Battery-powered Hall-effect probe measures 1 A to 1000 A
- 1mV/Amp output guarantees easy reading on your meter
- Take accurate current readings without breaking the circuit
- Maximum conductor size of 30mm
- Power: 9V PP3 battery (included)
Applications
Sensing & Instrumentation, Metering, Test & Measurement
Footnotes In addition, we have calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.
Product details
| Meter Side Connector |
4mm Double Banana Plug, Shrouded |
| Probe Side Connector |
Current Clamp |
| Current Range Max |
1kA |
| Current Range Min |
500mA |
| For Use With |
Fluke Multimeters |
| Product Range |
- |
Other details
| Brand |
FLUKE |
| Part Number |
FLUKE I1010 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
