CHAUVIN ARNOUX P01122015 Earth Ground Tester, CA 6416, Ground Inductance, Loop Resistance, Leakage Current CA 6416

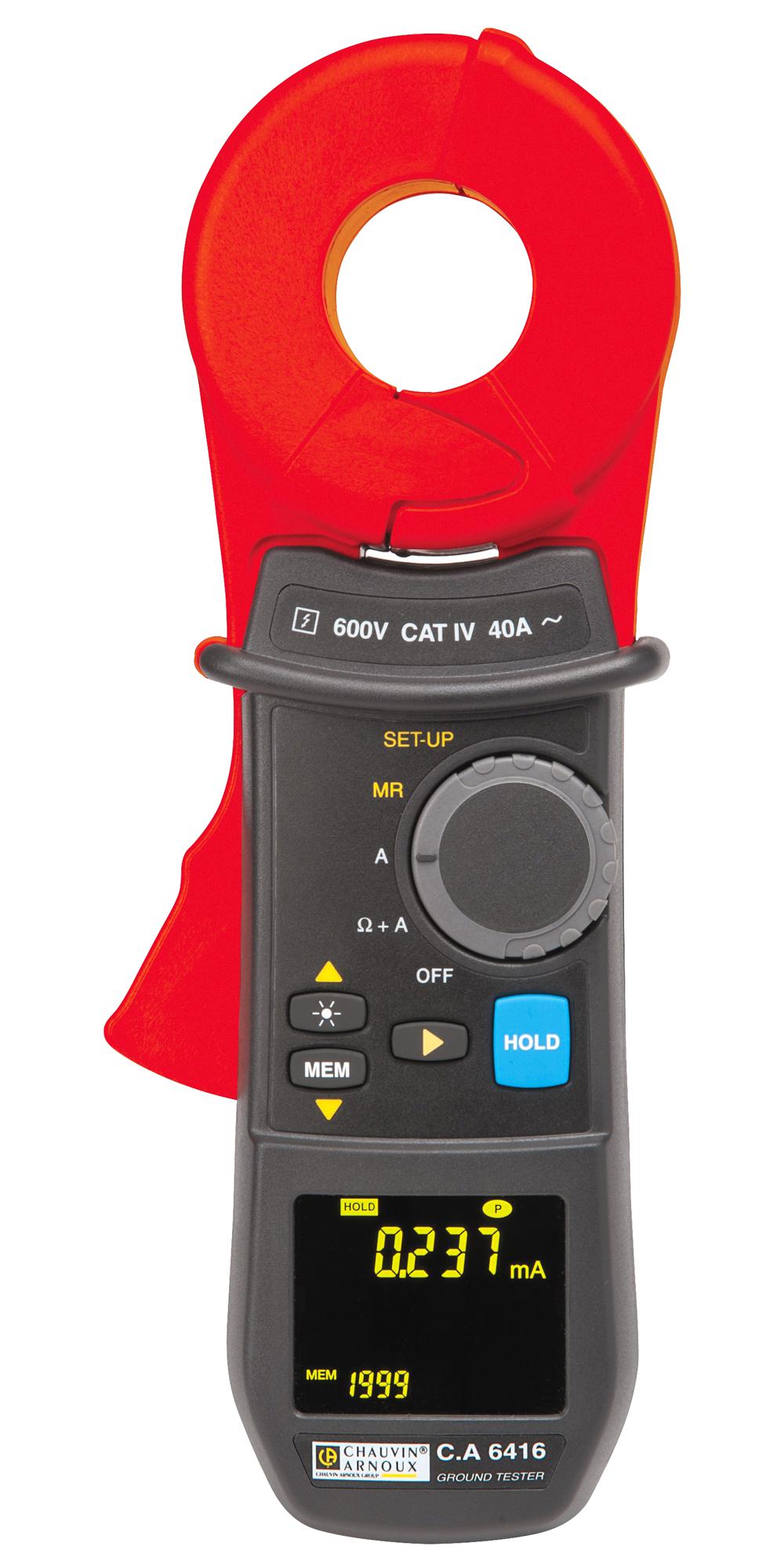

P01122015 is a C.A 6416 clamp-on ground resistance tester. The C.A 6416 earth clamps, delivered in a carrying case, are ideal for quick earth-loop resistance measurements. 600V CAT IV, they display the earth voltage with a dangerous voltage alarm and provide additional safety during measurement. They are particularly easy to use thanks to ergonomic innovations such as a force compensation system to keep the clamp open without any effort and an OLED display, offering visibility over an angle of 180° whatever the lighting conditions. The automatic PRE-HOLD function when the clamp is opened and the automatic jaw calibration function at power-up help to optimize processing of the measurements provided by the clamps. It also allows users to display the impedance transposed to a frequency close to the network frequency, thus reducing measurement errors when low values are involved.

• Large measurement range: 1,500 ohm / 500µH / 40A
• Alarms on ?, A and V
• 300 storage locations
• Real-time clock for time/date-stamping of measurements
• Automatic calibration of jaw opening distance at start-up
• Buzzer and automatic power-off
• GTC and DataView® analysis and report generation software
• Pushbutton access to backlighting
• Large, multi-function OLED display
• Dimension is 55 x 95 x 262mm

Contents

Clamp-on ground resistance tester, 1 x clamp delivered in a carrying case with 4 x 1.5V batteries, 1 x CD-ROM containing the operating manual in 5 languages.

Notes

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
