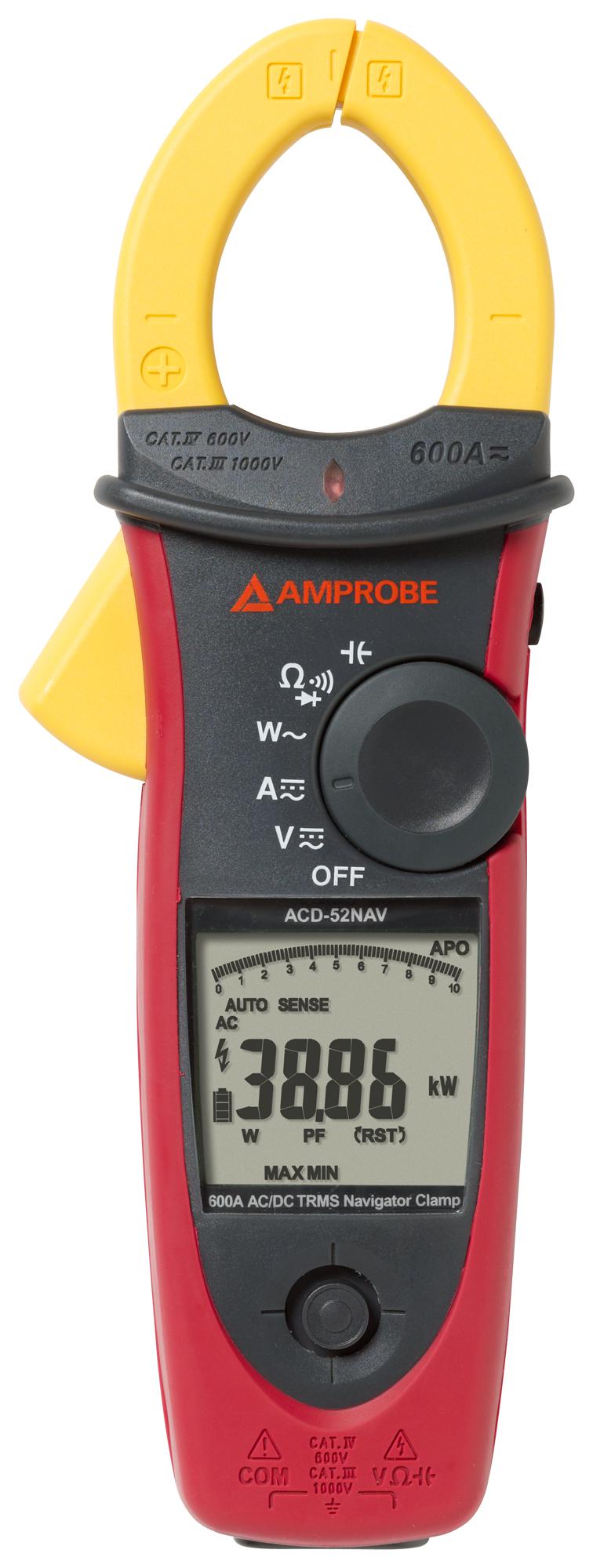

Complete with a full range of diagnostic capabilities including phase sequence, power and power factor, total harmonics distortion and individual harmonics, inrush current and low pass filter, the Amprobe ACDC-52NAV Navigator Clamp On Meter serves as a first line of defence for power monitoring and verifying system conditions before deploying more specialised tools -- or incurring additional costs. Rated CAT IV 600 V/CAT III 1000 V, this clamp on meter offers a new innovative navigation system that eliminates confusing push buttons, and replaces them with a single joystick.
- Phase rotation indication
- Non-contact voltage detection
- Inrush current measurement for motors
- Low pass filter for variable frequency drives
- Continuity beeper
- Min, max and smart data hold
- Peak hold
- Auto torch-light when clamping
- Large 10,000 count display with active backlight and analogue bar graph
- Maximum jaw opening 1.77 (45mm)
Contents
Test leads, users manual and batteries.
Product details
| DMM Functions |
AC/DC Current, AC/DC Voltage, Capacitance, Frequency, Resistance |
| Current Measure AC Max |
600A |
| Voltage Measure AC Max |
1kV |
| Voltage Measure DC Max |
1kV |
| Resistance Measure Max |
100kohm |
| DMM Response Type |
True RMS |
| Range Selection |
Auto, Manual |
| No. of Digits |
3.75 |
| Jaw Opening Max |
37mm |
| Product Range |
- |
Other details
| Brand |
BEHA-AMPROBE |
| Part Number |
ACDC-52NAV |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
