Description

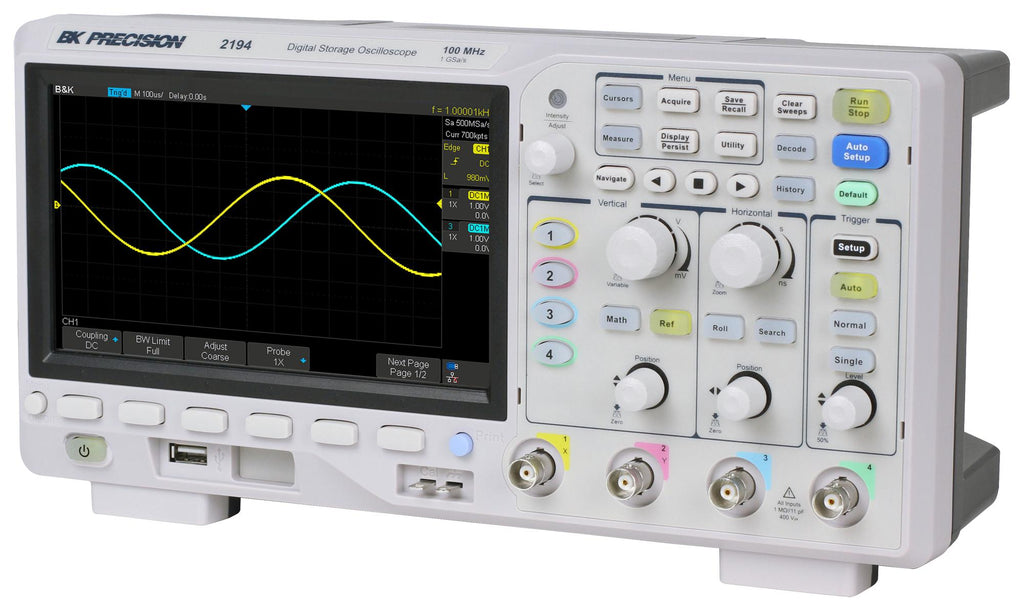

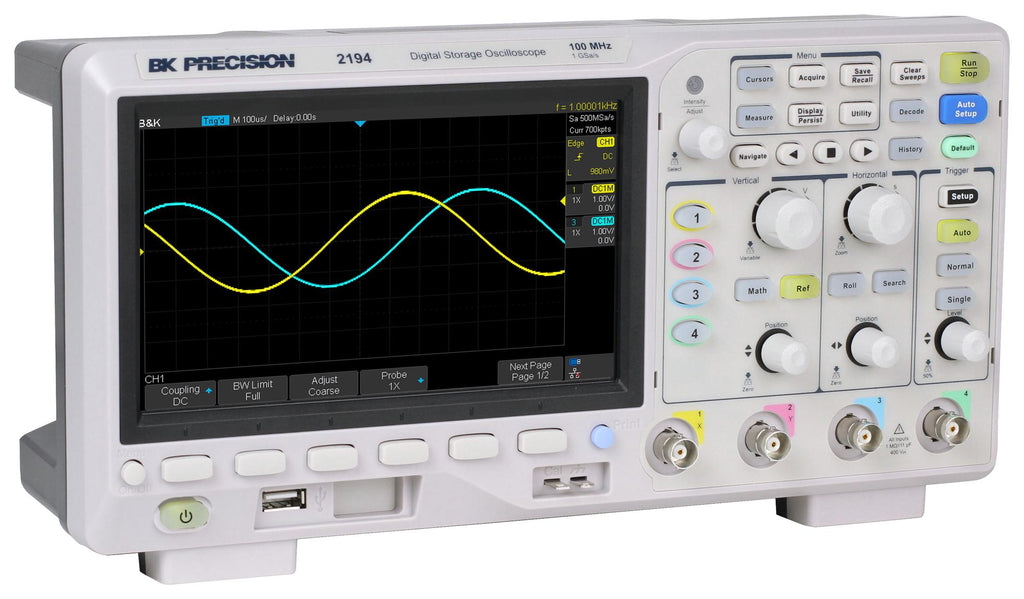

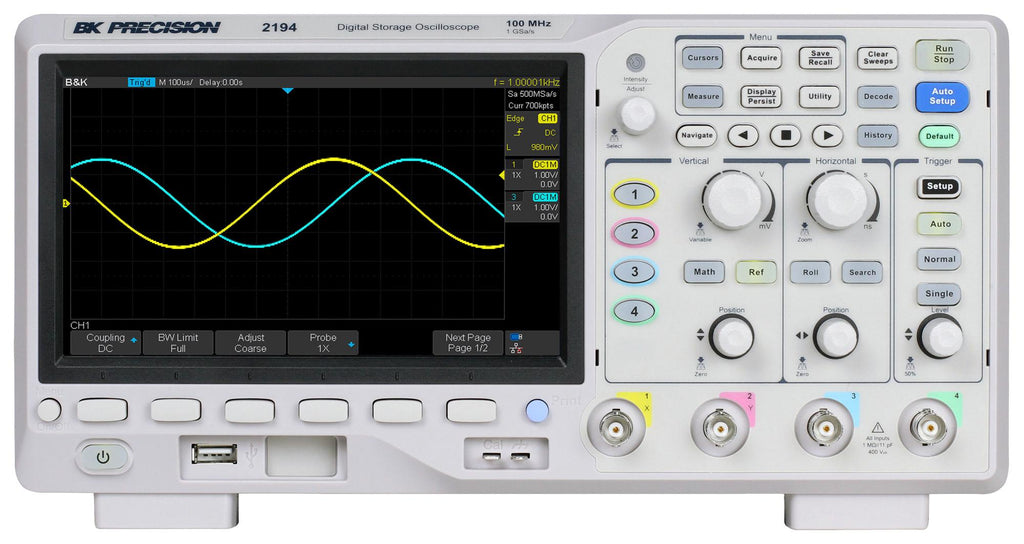

BK2194 digital storage oscilloscope provides 100MHz of bandwidth in a 4-channel configuration with a maximum sample rate of 1GSa/s and a maximum memory depth of 14Mpts. The BK2194 comes equipped with a 7" widescreen display and extensive features including segmented acquisition, FTT and serial decoding for five different communication protocols. This model is the ideal solution for educational settings and hobbyists.
- Waveform capture rates up to 100,000 (normal mode) and 400,000 (sequence mode) waveforms per second
- Versatile triggering capabilities including pulse width, line-selectable video and serial
- Segmented acquisition stores up to 80,000 frames
- Serial decoding for I2C, SPI, UART, CAN and LIN protocols
- FFT feature and 7 additional math operations
- Masking tool with adjustable limits for pass/fail testing

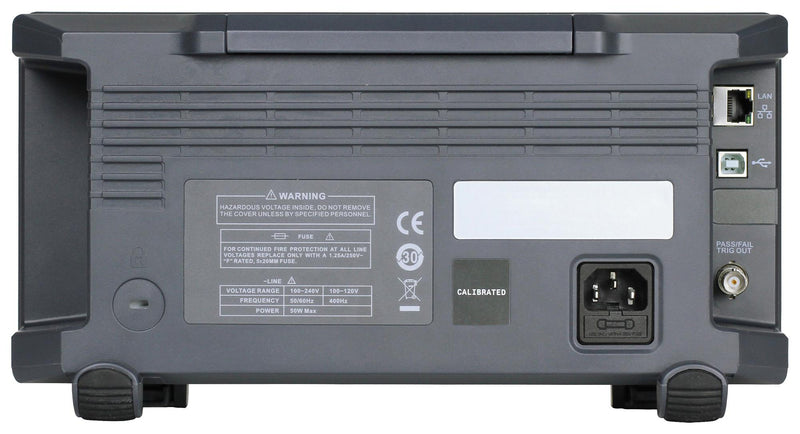

- LAN and USBTMC compliant device ports for PC connectivity
- USB host port for saving and recalling waveform setups, data, and screenshots
- USBTMC-compliant device port and LAN interfaces standard
- Multi-language support
Contents
Digital storage oscilloscope, Power cord, USB cable, Four passive probes, Certificate of calibration.
Product details
| Product Range: - |
| Scope Channels: 4 Channel |
| Bandwidth: 100MHz |
| Sampling Rate: 1GSPS |
| Display Memory Depth: 14 Mpts |
| Calculated Rise Time: 3.5ns |
| Scope Display Type: TFT LCD Colour |
| Kit Contents: Digital Storage Oscilloscope, Power Cord, USB Cable, Passive Probe, Certificate Of Calibration |
| Manufacturer Warranty: 3 Years |
| Plug Type: - |
Other details
| Brand | B&K PRECISION |
| Part Number | BK2194 |
| Quantity | Each |
| Technical Data Sheet EN |  |
