Description

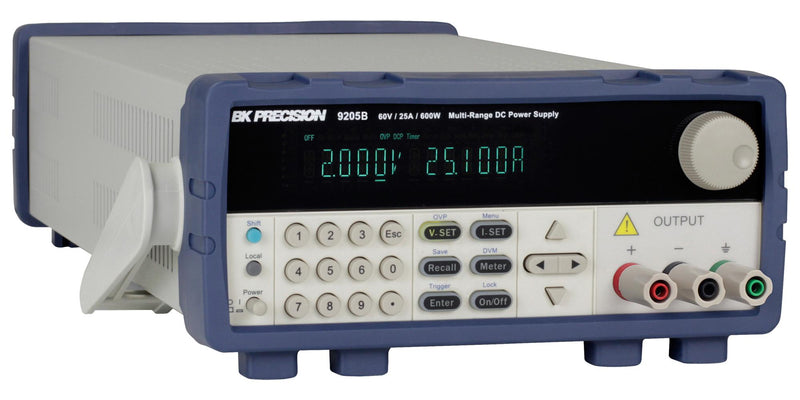

9200B series multi-range programmable DC power supply. It automatically recalculates voltage and current limits for each setting. Providing maximum output power in any Volt/Amp combination within the rated voltage and current limits. It is suitable for a wide range of applications including production testing, R&D, electronic field service and education.
- 60V max voltage, 25A max current, 600W max power
- High programming and readback resolution of 1mV / 0.1mA
- Store and recall up to 72 instrument settings
- Output timer function and list mode programming

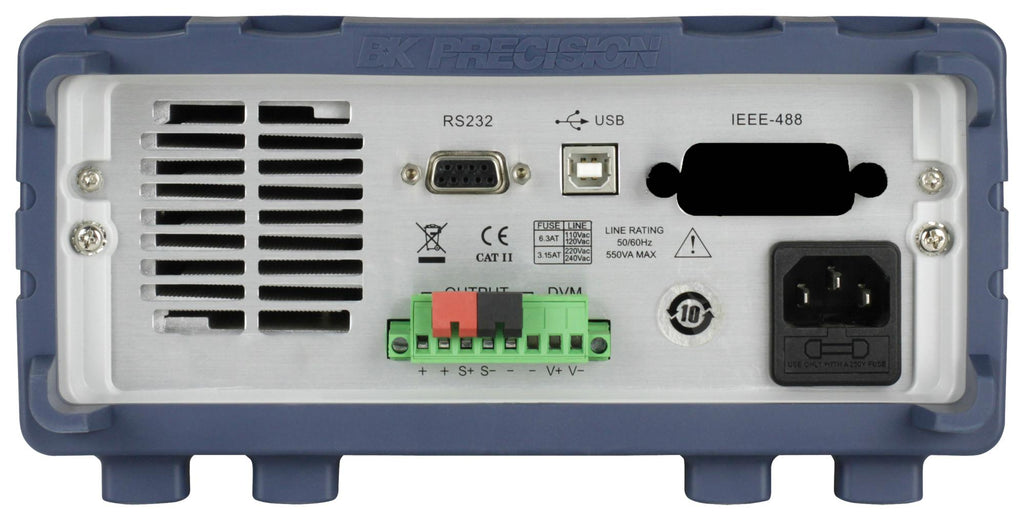

- Standard USB (USBTMC-compliant) and RS232 interfaces supporting SCPI commands for remote control
- Remote sense and thermostatically controlled fan
- Built-in digital voltmeter (DVM)
- Overvoltage/overpower/overtemperature protection and key-lock function
- NI certified LabVIEW� driver and softpanel for remote control
- Compact 19" half-rack form factor allows for side-by-side rack mounting of two units
DC power supply, User manual, Power cord, Certificate of calibration.
Other details
| Brand | B&K PRECISION |
| Part Number | BK9205B |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Operating Instructions EN | |
