| ₹ 206156.77 includes GST and import duties. | |
| B2B customers can avail ₹ 31438.91 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

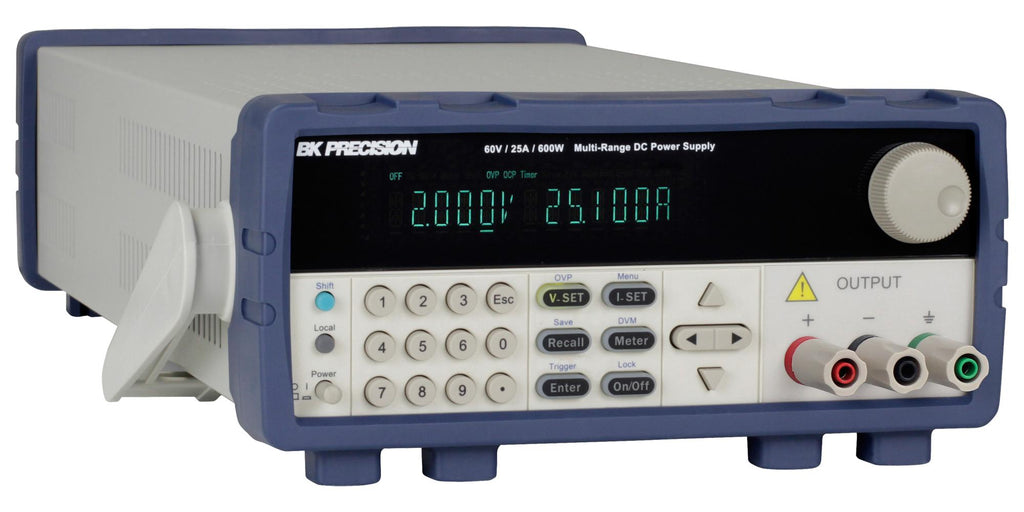

9200B series multi-range programmable DC power supply. It automatically recalculates voltage and current limits for each setting. Providing maximum output power in any Volt/Amp combination within the rated voltage and current limits. It is suitable for a wide range of applications including production testing, R&D, electronic field service and education.
- 60V max voltage, 15A max current, 360W max power
- High programming and readback resolution of 1mV / 0.1mA
- Store and recall up to 72 instrument settings
- Output timer function and list mode programming
- Standard USB (USBTMC-compliant) and RS232 interfaces supporting SCPI commands for remote control
- Remote sense and thermostatically controlled fan
- Built-in digital voltmeter (DVM)
- Overvoltage/overpower/overtemperature protection and key-lock function
- NI certified LabVIEW� driver and softpanel for remote control
- Compact 19" half-rack form factor allows for side-by-side rack mounting of two units
DC power supply, User manual, Power cord, Certificate of calibration.
Other details
| Brand | B&K PRECISION |
| Part Number | BK9202B |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Operating Instructions EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 202033.63 |
| 3-5 | ₹ 199972.07 |
| 5-10 | ₹ 195848.93 |
| 10+ | ₹ 191725.8 |
Bulk discount will be automatically applied during checkout based on quantity.
