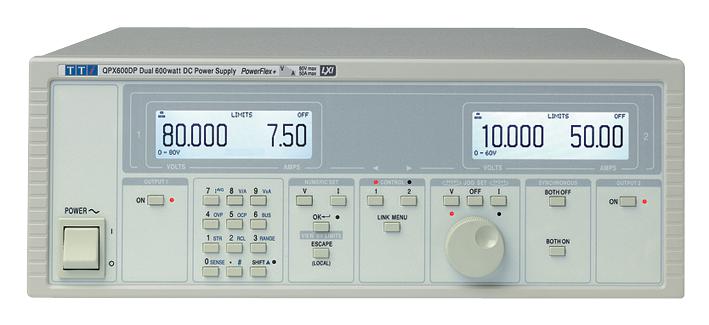

The QPX600D is a 1.2kW dual output dc power supply that offers users a level of flexibility that cannot be achieved with conventional laboratory power supplies. Dual isolated outputs of 600 watts each use PowerFlex+ regulation to provide a very wide range of voltage/current combinations. The product is suitable for both bench top and system applications and has analog remote control interfaces.
- Dual 'PowerFlex' Max 80V or 50A
- PowerFlex+ design gives ultra-wide range of voltage/current combinations.
- Dual independent or tracking 600 watt outputs
- Isolated tracking of voltage only, or voltage + current
- Smart metering and tracking functions facilitate series or parallel wiring for up to 160V or 100A
- Low output noise and ripple
- Bench or rack mounting
- Variable OVP and OCP trips
- Analog control interfaces for voltage and current
Footnotes In addition, we have calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.
Other details
| Brand |
AIM-TTI INSTRUMENTS |
| Part Number |
QPX600D |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
