Description

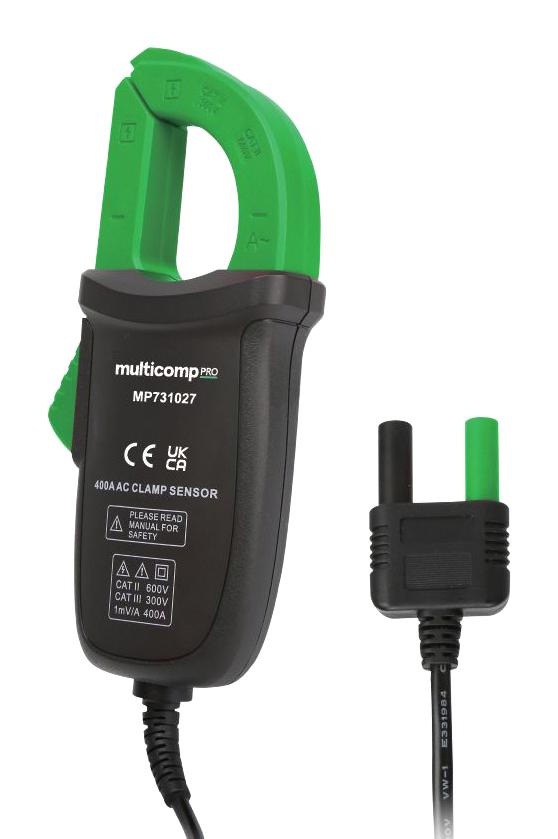

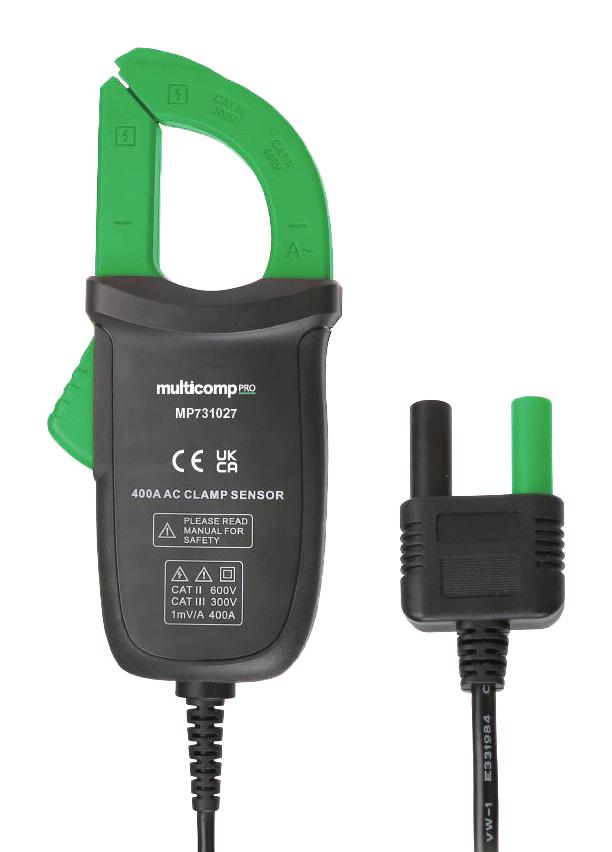

The MP731027 Clamp Sensor is designed for measuring ACA current ranging from 1A to 400A. With a generous jaw opening of 28mm, a convenient wire length of 1.1m, and a wide frequency range from 50 Hz to 400 Hz, this sensor offers versatile applications. Notably, it operates without the need for batteries, ensuring a hassle-free and sustainable power supply.
- Dimension: 158mm � 65mm � 33mm
- ACA Current: 1A to 400A
- Accuracy: ±2.5% ±0.5A @ 50Hz to 60Hz; ±2.8% ±0.5A @ 60Hz to 400Hz
- Jaw opening: 28mm
- Output ratio: 1mV/A
- Wire length: 1.1m
- Frequency: 50Hz to 400Hz
- Power supply: No need for battery
- Drop test: 1m
- Overvoltage category: CAT III 300V, CAT II 600V
Applications
Test & Measurement, Electrical, Industrial & Manufacturing, Automation & Process Control
Footnotes
This Clamp Sensor can applied to the measurement devices that meet following requirement: The AC millivolt range is <gt/> 400mV; the AC current sensor range is <gt/> 400A; An input accuracy of 2.5% or higher; Standard voltage input terminal; Input impedance: <gt/> 1MOHM
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MP731027 |
| Quantity | Each |
| Technical Data Sheet EN |  |
