KEYSIGHT TECHNOLOGIES N2821A Current Probe, Keysight AutoProbe Interface, Keysight MBB Connectors, 5 A, 50 µA

N2821A is a high-sensitivity AC/DC current probe. This 1-channel current probe provides one user-selectable view at a time. It is engineered to make high-dynamic-range, high-sensitivity measurements to meet today's challenging current measurement needs. The ultra-sensitive N2821A AC/DC current probe can support measurements from 50uA to 5A on Keysight oscilloscopes. The N2821A interface uses a make-before-break (MBB) connector, allowing you to quickly probe multiple locations on your DUT without having to solder or unsolder the leads.

• Max input voltage ± 12V
• Bandwidth (-3 dB) is DC to 3MHz ( zoom-out channel) , DC to 500KHz (zoom-in channel)
• Dynamic range is 1000:1, 60dB, gain is 300 ± 3%(zoom-in channel), 1.97 ± 3%(zoom-out channel)
• Operating temperature range from 0°C to +40°C
• New oscilloscope measurement current consumption over time (charge)
• 1.2m probe cable
• AutoProbe interface driving 1 MR input to oscilloscope

Contents

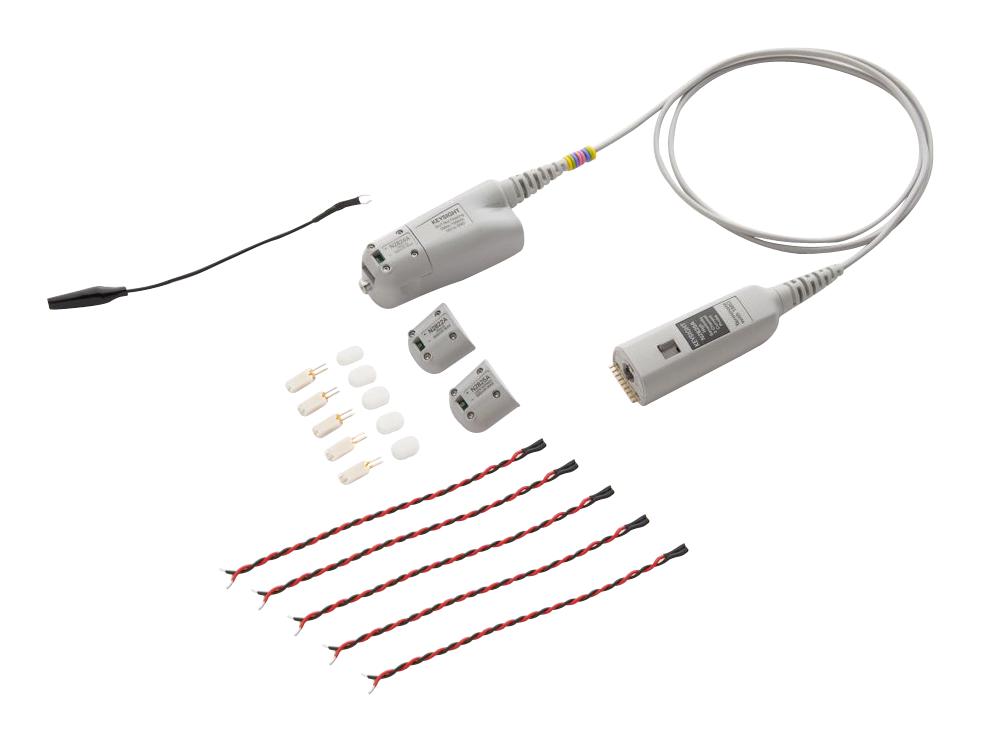

High-sensitivity 1-channel current probe, 1 each 20mohm resistor sensor head, 5 each MBB headers, 1 each 100mohm resistor sensor head, 5 each MBB receptacles, 1 each user defined resistor sensor head, 1 each ground lead, 5 each twisted leads (22AWG) with sockets, 1 each screw driver, 5 each twisted leads (22AWG) without sockets, 1 each user guide manual (English).

In addition, we have calibration services for this product (Europe only). Visit our calibration service page to see details of what options are available.
