Description
Product Overview

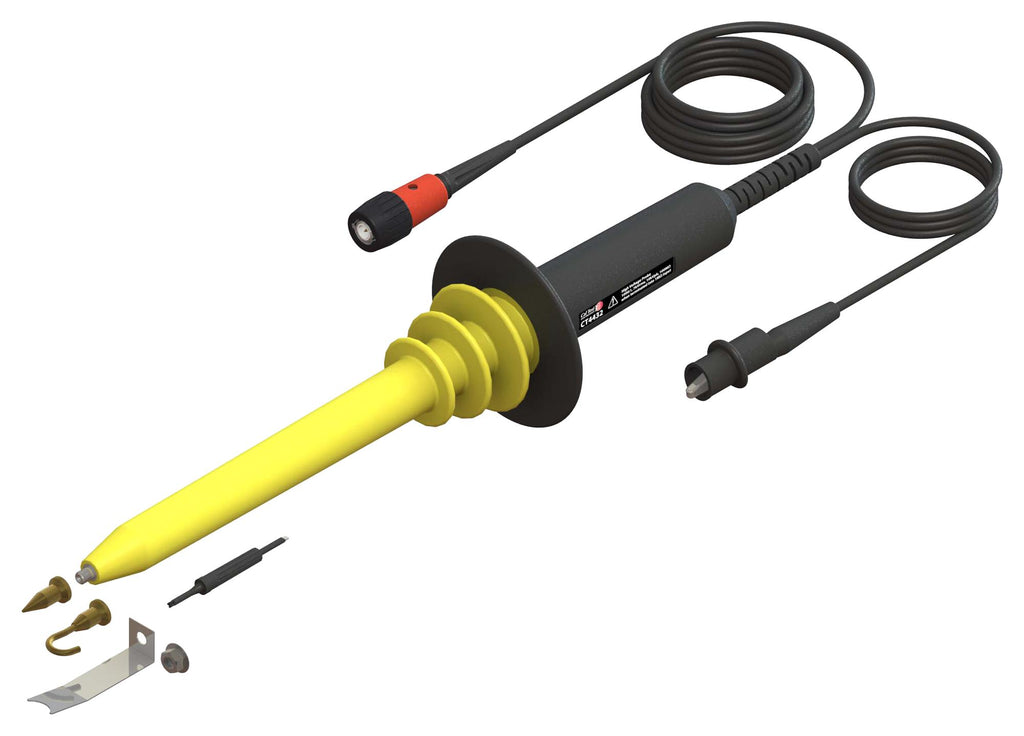

CT4432 is a 10KV high-voltage oscilloscope probe. The CT4432, with an improved dual-resistor design, can accurately and safely step-down higher voltages to an acceptable level. It offers 1000x attenuation and features a compensation range of 5pF to 50pF for a wide range of oscilloscope capacitance matching. The CT4432 high-voltage oscilloscope probe enables you to safely measure voltage levels up to 10kV. The CT4432 is covered by a two-year warranty. This probe is compatible with oscilloscopes (of 1Mohm input) from all major manufacturers. The CT4432 High-Voltage Probe is ideal for high-Voltage non-category rated measurements, lab environments and extended bandwidth measurements.
- Bandwidth of 40MHz, rise time ? 8.8ns
- Maximum loading current of 100?A
- Input resistance is 100Mohm, input capacitance is 2.0pF
- Replaceable tips
- Insulated BNC connection
- Can be used with your DMM by employing BNC converter CT3197B
- Two-year warranty
- Dimension is 340mm x 75mm x 75mm
Contents
High voltage probe, Trimmer tool, Tip, Hook tip, Flat bar tip, Round Tip.
Product details
Other details
| Brand | CAL TEST ELECTRONICS |
| Part Number | CT4432 |
| Quantity | Each |
| Technical Data Sheet EN |  |
