Digilent 410-413 410-413 Test Accessory Transistor Tester Board Analogue Discovery Series Devices

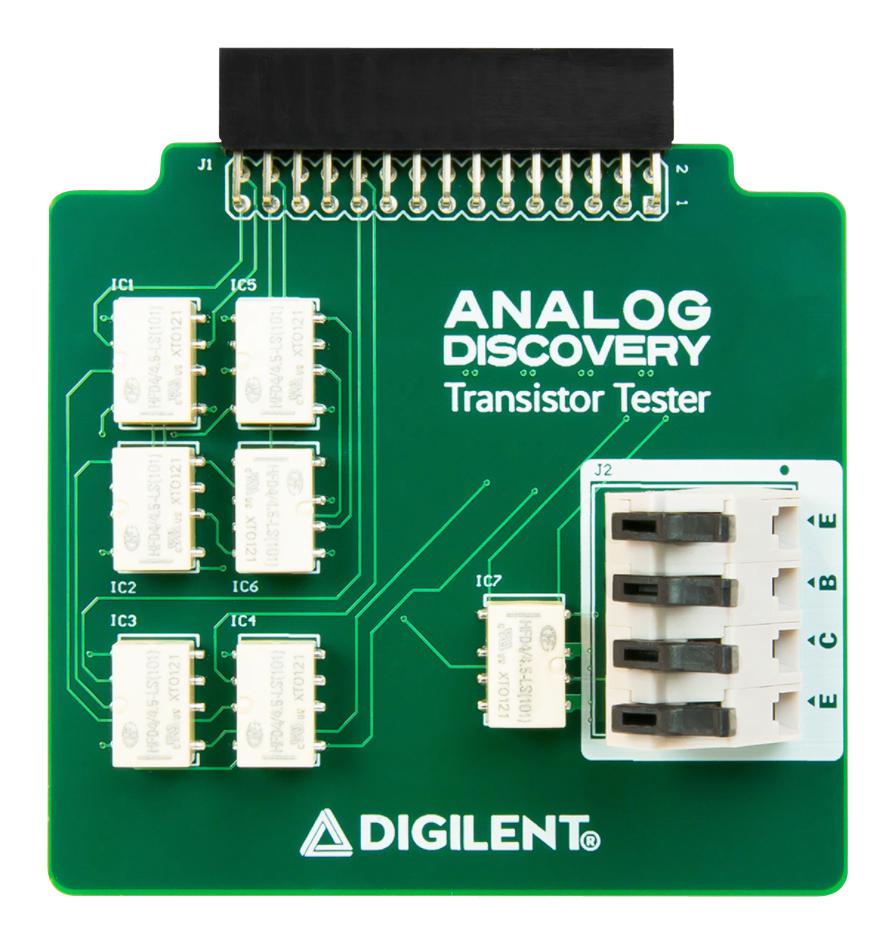

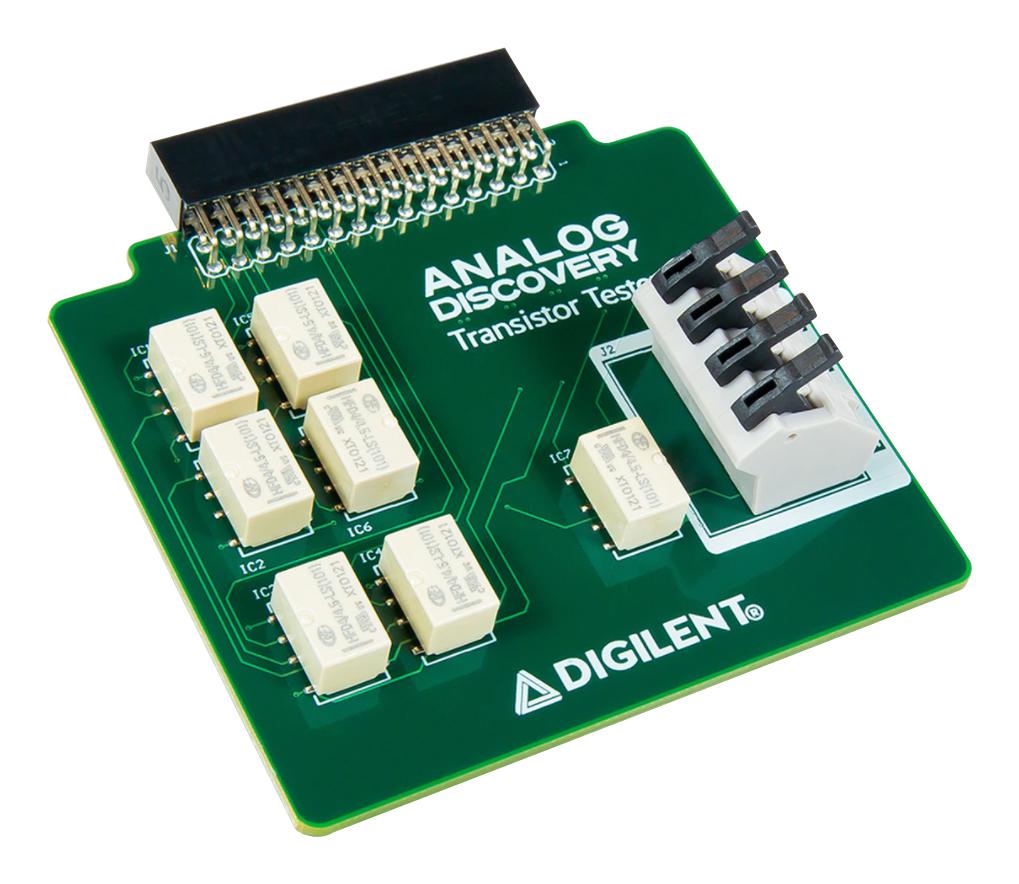

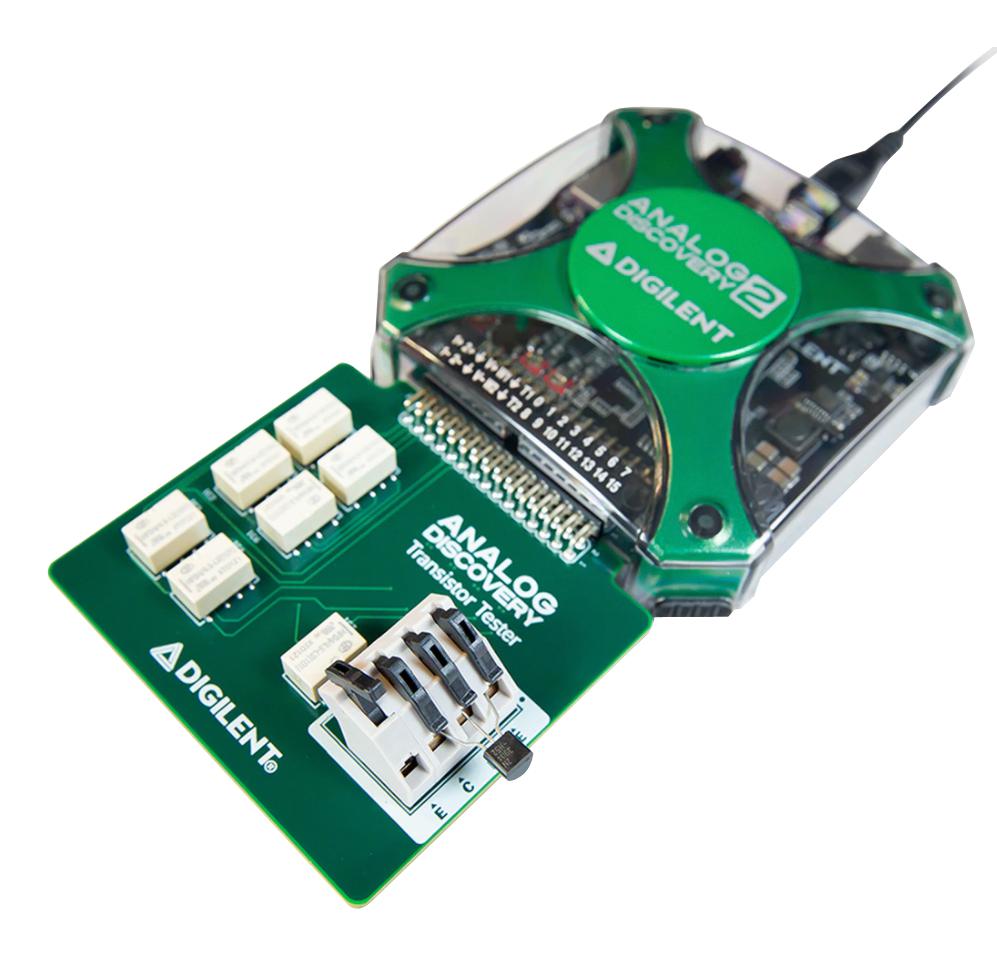

Transistor tester for analogue discovery is a curve tracer instrument in WaveForms allows several of the Discovery family of devices to draw characteristic curves of common devices like diodes, NPN and PNP transistors, and both P- and N-type FETs. The Transistor Tester can be plugged into the Analog Discovery and enable the use of this instrument without any need for reference circuit set ups, similar to a traditional curve tracer instrument. However unlike traditional curve tracer instruments, WaveForms runs on a computer, readily providing measurements, cursors and screenshots that can be taken with the click of a button. This is extremely convenient for lab reports, and much more accurate than a photo of a display. When using the Analog Discovery and transistor tester and adapter is selected, the curve tracer instrument provides the appropriate reference resistors and can be used to easily plot the characteristic curves and add cursors to take the necessary measurements.

• Works with diodes, NPN and PNP transistors, and P- and N-Type FETs
• Connector J2 for E / C / B / E connections
• 10Kohm internal resistor for Rb
• 100 ohm internal resistor for Rc
• Compatible with the Analog Discovery 2 and Analog Discovery (Legacy)
• 2 x 15 analogue discovery connector

Contents

Analog discovery transistor tester, Custom anti-static packaging.

Other details

Brand	DIGILENT
Part Number	410-413
Quantity	Each
