Description
Product Overview

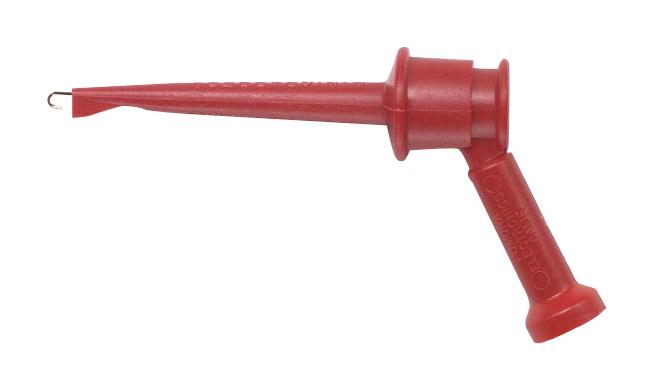

4826-2 is Minigrabber® test clip has a pin jack built right into the plunger. Excellent for attaching the Grabber test clip directly to the end of a pin tip patch cord or it can be used as an adapter for miniature test probes with 2mm tips.
- 165 beryllium copper alloy per QQ-C-533 contact, 302 stainless steel spring
- 360 brass alloy per QQ-B-626 1/2 hard pin tip jack
- Colour is red
- 25 beryllium copper berylco per QQ-C-533 Cond. HT pin tip jack spring
- Gold plated per MIL-G-45204 Class 00 contact finish
- Glass filled nylon insulation
- Operating voltage of 30VAC/60VDC, current rating of 5A
- Maximum operating temperature of +216°F
Product details
Other details
| Brand | POMONA |
| Part Number | 4826-2. |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2862.43 |
| 3-5 | ₹ 2833.22 |
| 5-10 | ₹ 2774.81 |
| 10+ | ₹ 2716.39 |
Bulk discount will be automatically applied during checkout based on quantity.
