Description
Product Overview

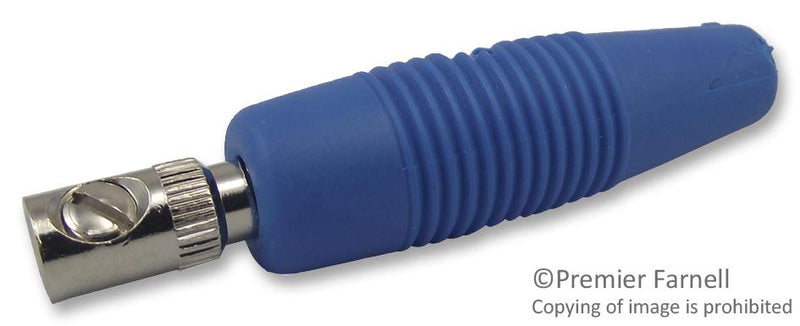

The 930046102 is a blue cable-mount fully mating Connector with shatter-proof and a flexible insulated sleeve. The tapering sleeve end also serves as kinking protection for the lead. It has screw connection up to maximum cable cross-section of 1.5mm². It is made of PVC-P housing with a nickel-plated brass contacts.
- 3m? Contact resistance
- -25 to 70°C Temperature range
- Screw terminal connection
- 30 VAC / 60 VDC rated voltage (1)
- O (3) measurement cat. acc. to IEC 61010
- 16 A rated current (1)
- PVC-P housing material
- (1) for normal environmental conditions -5°C to +40°C
- (3) without rated measurement category, for other circuits that are not directly connected to mains
Applications
Industrial, Test & Measurement
Product details
Other details
| Brand | HIRSCHMANN TEST AND MEASUREMENT |
| Part Number | 930046102. |
| Quantity | Pack of 5 |
| Technical Data Sheet EN |  |
