Description
Product Overview

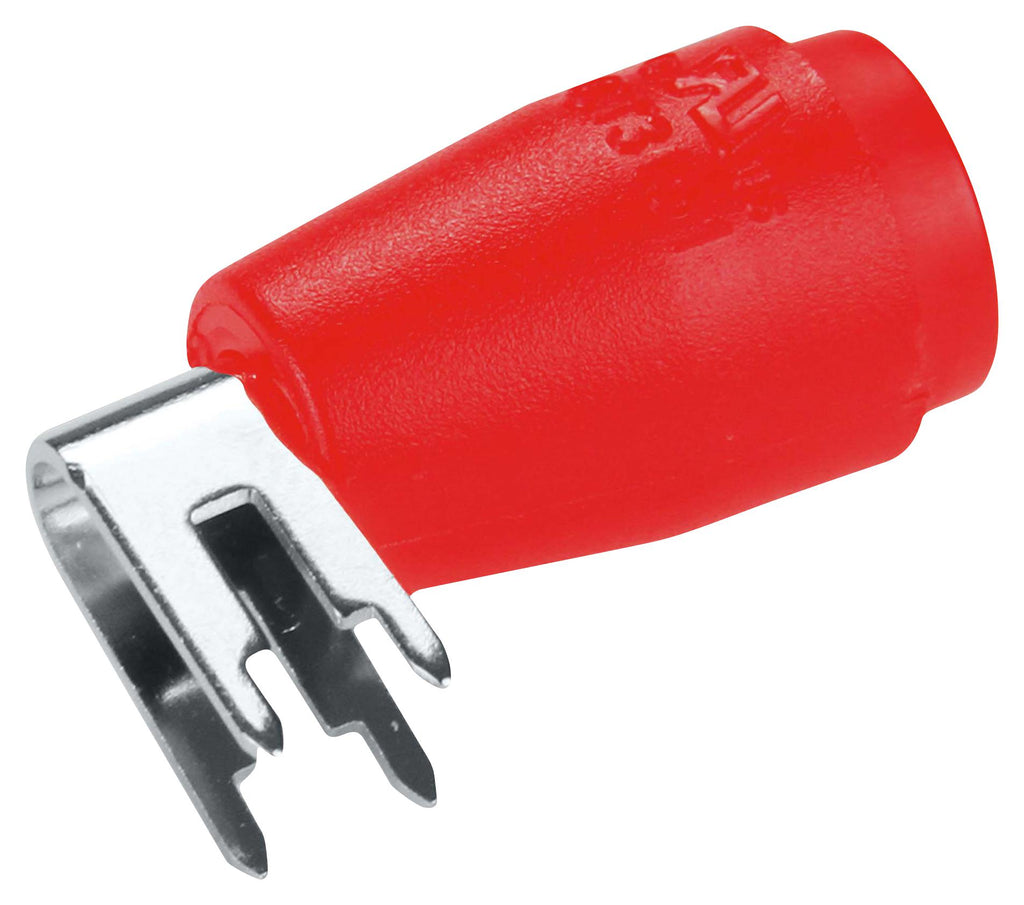

CT3151SP-2 is a CT3151SP series UL recognized 4mm sheathed banana jack (socket) centre line .300" (7.6mm) above PCB surface, accepts sheathed or shrouded banana plugs and meets international safety standards. Component recognition per UL 61010-1 and CAN/CSA C22.2 No. 61010-1 to 1,000V CAT III, 25A. Designed for horizontal printed circuit mounting from the rear of the panel.
- Horizontal PCB mount
- UL recognized per file no. E315929, PICQ2 and PICQ8
- Polyamide (nylon) body, bass with nickel plated jack
- 3mm panel thickness
- Maximum resistance of 5mohm
- Temperature range from -20° to +80°C
- Red colour banana jack
Product details
Other details
| Brand | CAL TEST ELECTRONICS |
| Part Number | CT3151SP-2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 534.98 |
| 3-5 | ₹ 529.52 |
| 5-10 | ₹ 518.61 |
| 10+ | ₹ 507.69 |
Bulk discount will be automatically applied during checkout based on quantity.
