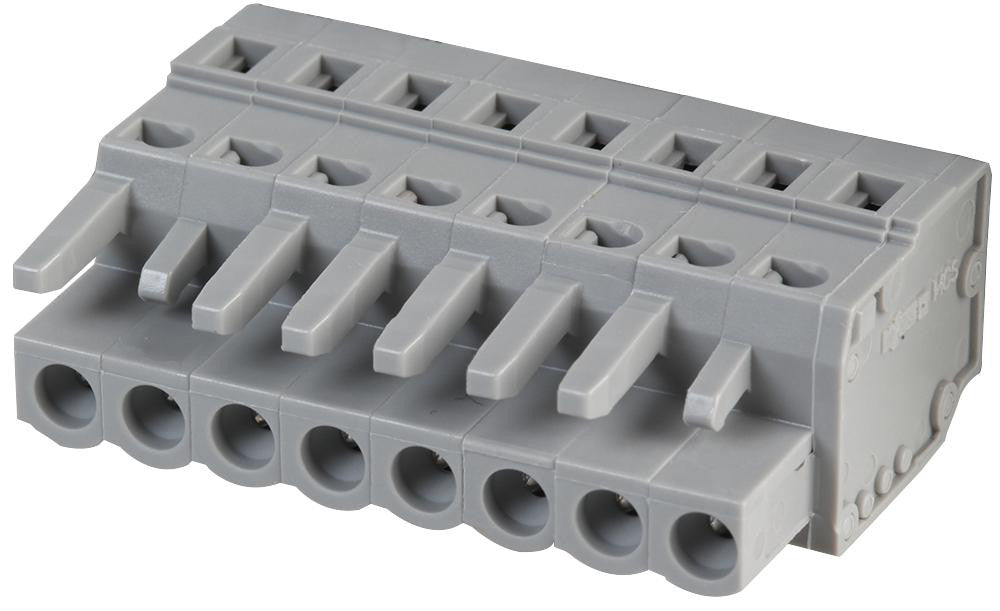

- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP® actuation
- For "wire-to-wire" and "board-to-wire" connections
- Integrated test ports
- 2 Locking latches and 6 coding fingers
Product details
| Wire Size AWG Max |
12AWG |
| Wire Connection Method |
Clamp |
| Rated Current |
16A |
| No. of Positions |
8Ways |
| Conductor Area CSA |
2.5mm² |
| Product Range |
MCS MIDI Classic 231 Series |
| Pitch Spacing |
5mm |
| Wire Size AWG Min |
28AWG |
| Rated Voltage |
320V |
Other details
| Brand |
WAGO |
| Part Number |
231-108/026-000 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Manufacturer Product Page EN |
|
