Description

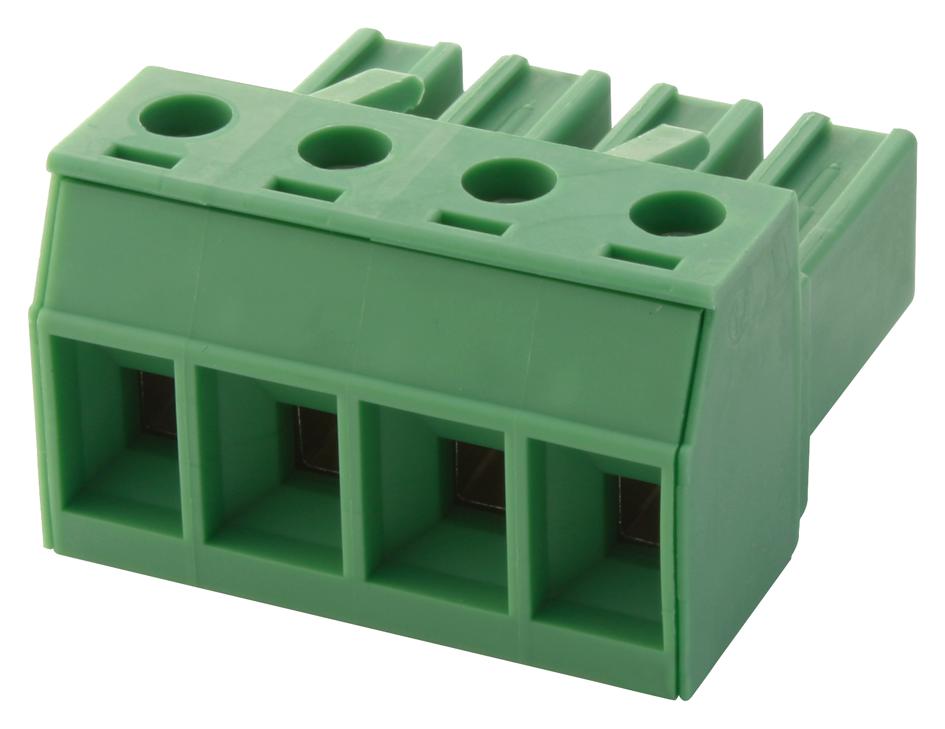

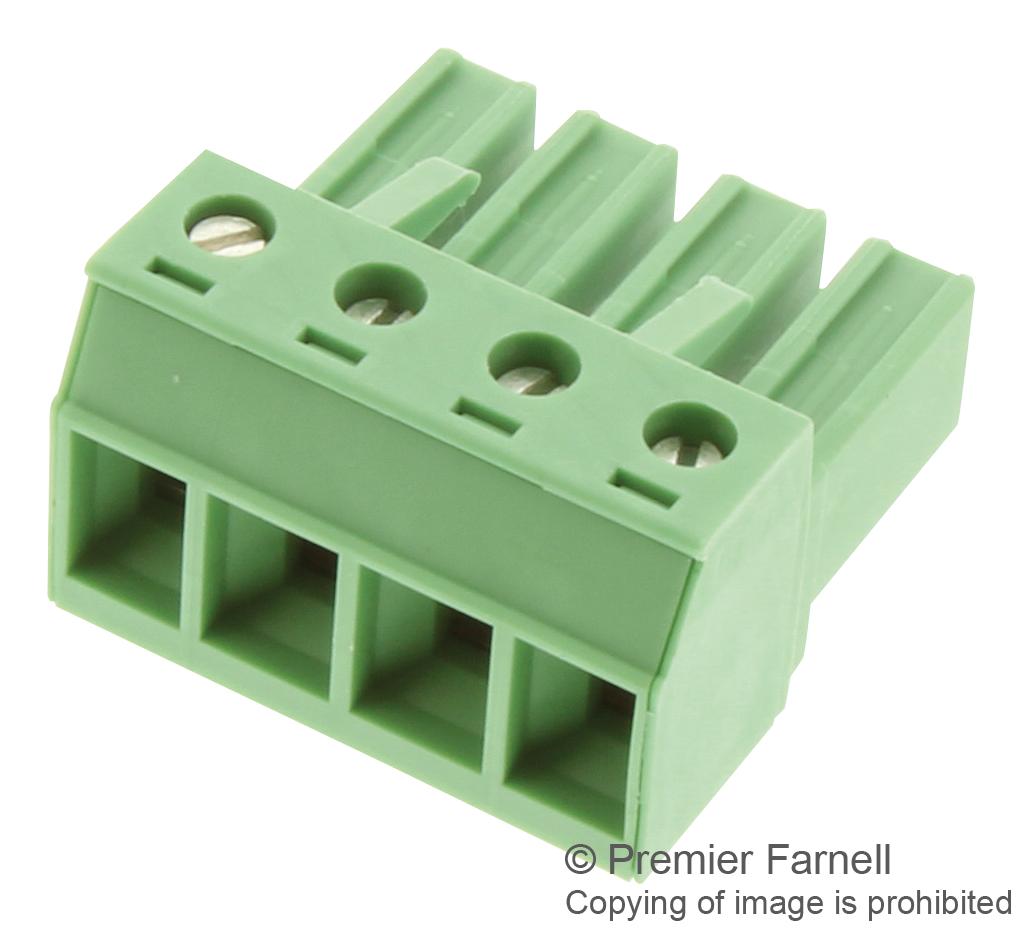

The PC 4/ 4-ST-7,62 is a 4-position green pluggable PCB Terminal Block with tin-plated solder contacts, a polyamide insulator and M3 screw connection. This 1804920 terminal block has fully developed contact geometries and surfaces. High-capacity plugs with a current carrying capacity of 20A. It accepts 24 to 10AWG wire range.
- Plugs can be keyed using CP-PC RD coding profiles
- Integrated double steel spring as extra safety against contact corrosion
- Screw connection up to 4mm², stranded
- 7mm Stripping length
- UL94V-0 Flammability rating
Industrial
Other details
| Brand | PHOENIX CONTACT |
| Part Number | PC 4/ 4-ST-7,62 |
| Quantity | Each |
| Technical Data Sheet EN |  |
