Description

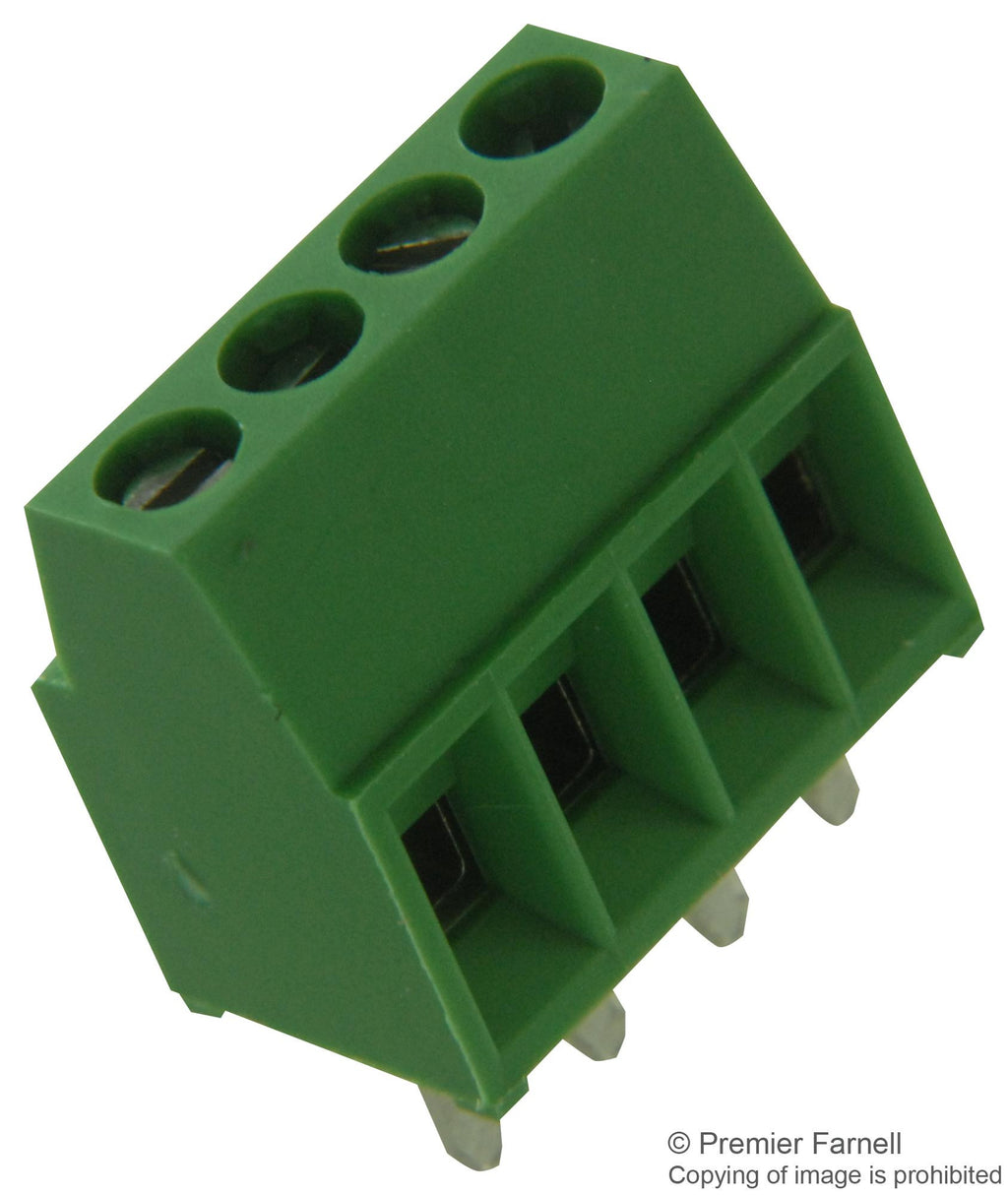

The 282834-4 is a 4-position 1-row green through-hole right-angle Terminal Block with tin-plated brass contacts and polyamide 6.6 housing. The BUCHANAN terminal block with special rising cage clamp design allows numerous reliable connections and disconnections at field installations. The housing funnel entry design enables an easier product application.
- IR Reflow compatible
- -40 to +105�C Temperature range
Applications
Commercial, Industrial
Product details
| No. of Positions | 4Ways |
| Pitch Spacing | 2.54mm |
| Rated Current | 10A |
| Rated Voltage | 150V |
| Wire Connection Method | Screw |
| Wire Size AWG Max | 16AWG |
| Block Orientation | Through Hole Right Angle |
| Product Range | - |
| Wire Size AWG Min | 30AWG |
| Conductor Area CSA | 1.4mm� |
Other details
| Brand | BUCHANAN - TE CONNECTIVITY |
| Part Number | 282834-4 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| 3D Product Image EN | |
