Product Overview

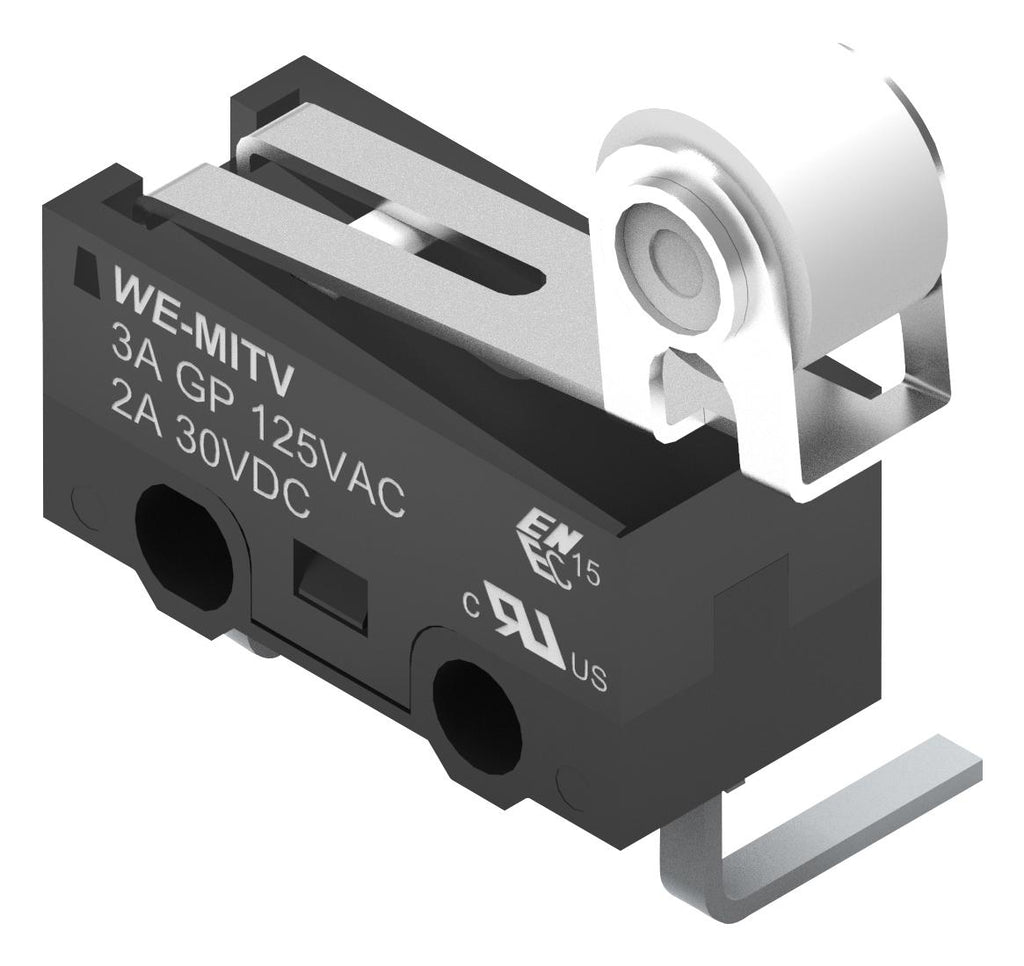

- WS-MITV series THT terminal with roller lever, right angle operation micro switch
- PBT actuator material, UL94 V-0 actuator flammability rating
- PBT frame material, UL94 V-0 frame flammability rating
- Silver moveable contact material, silver stationary contact material
- Copper alloy terminal material, silver terminal plating
- 30m ohm initial contact resistance
- 1ohm contact resistance after life test
- 100Mohm RISO, 10000 cycles electrical life
- SPDT schematic, E483308 UL approval
- Operating temperature range from -40°C to +85°C, dimension is 12.8 x 5.8mm
Product details
Technical Specifications
Microswitch Type
Standard
Contact Configuration
SPDT
Product Range
WS-MITV Series
Microswitch Actuator
Roller Lever
Switch Terminals
PC Pin, Right Angle
Contact Voltage DC Nom
30V
SVHC
No SVHC (21-Jan-2025)
Other details
| Brand |
WURTH ELEKTRONIK |
| Part Number |
463093691402 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
