Description
Product Overview

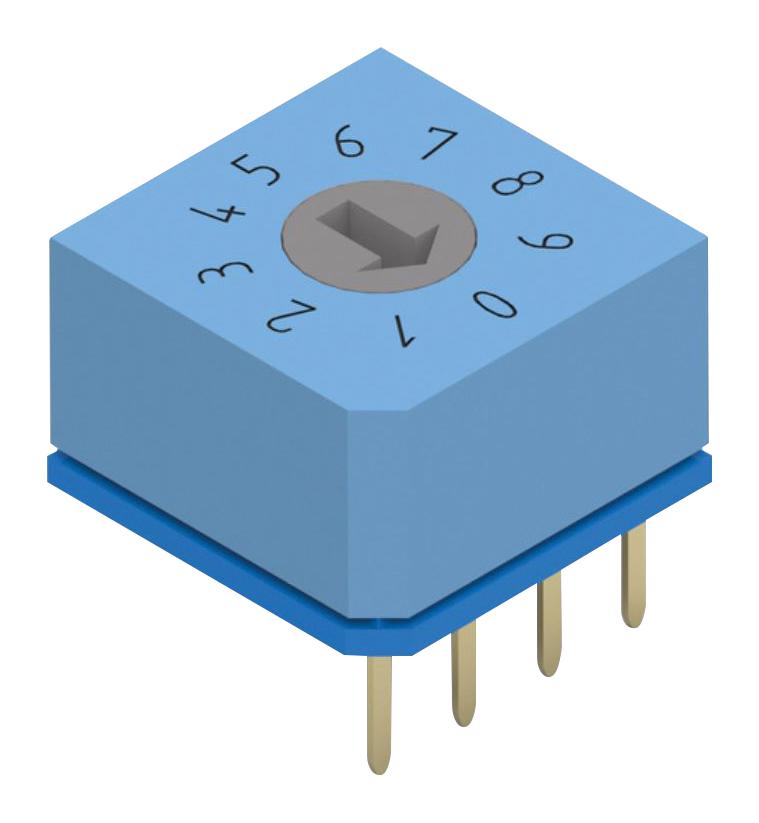

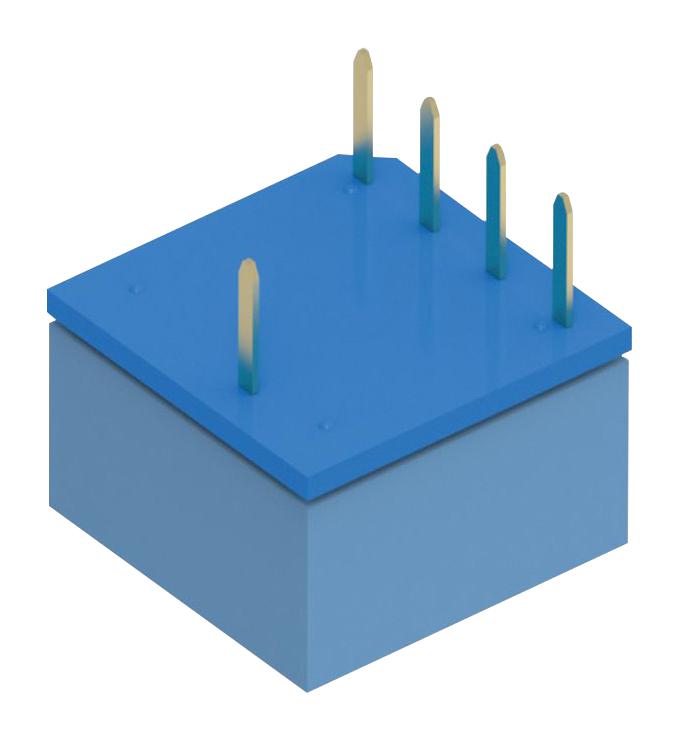

428517310916 is a WS-ROTV THT, IP67, rotary switch with 4x1 terminal.
- PA66 cover material, UL94 V-0 cover flammability, blue cover colour, POM actuator material
- UL94 HB actuator flammability, dark grey actuator colour
- FR4 epoxy resin contact material
- Gold contact plating, copper alloy terminal material, gold terminal plating
- 150mA rated current switching, 42VDC rated voltage switching, 200mA rated current non-switching
- 42VDC rated voltage non-switching, 80mohm max initial contact resistance
- 100Mohm min insulation resistance at (250VDC), 250VAC withstanding voltage at (1 min)
- 10000 steps electrical life (150mA/ 42V (DC), 16 positions, arrow type actuator
- Operating temperature range from -40°C upto +85°C
Product details
Other details
| Brand | WURTH ELEKTRONIK |
| Part Number | 428517310916 |
| Quantity | Each |
| Technical Data Sheet EN |  |
