| ₹ 202.25 includes GST and import duties. | |
| B2B customers can avail ₹ 30.84 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

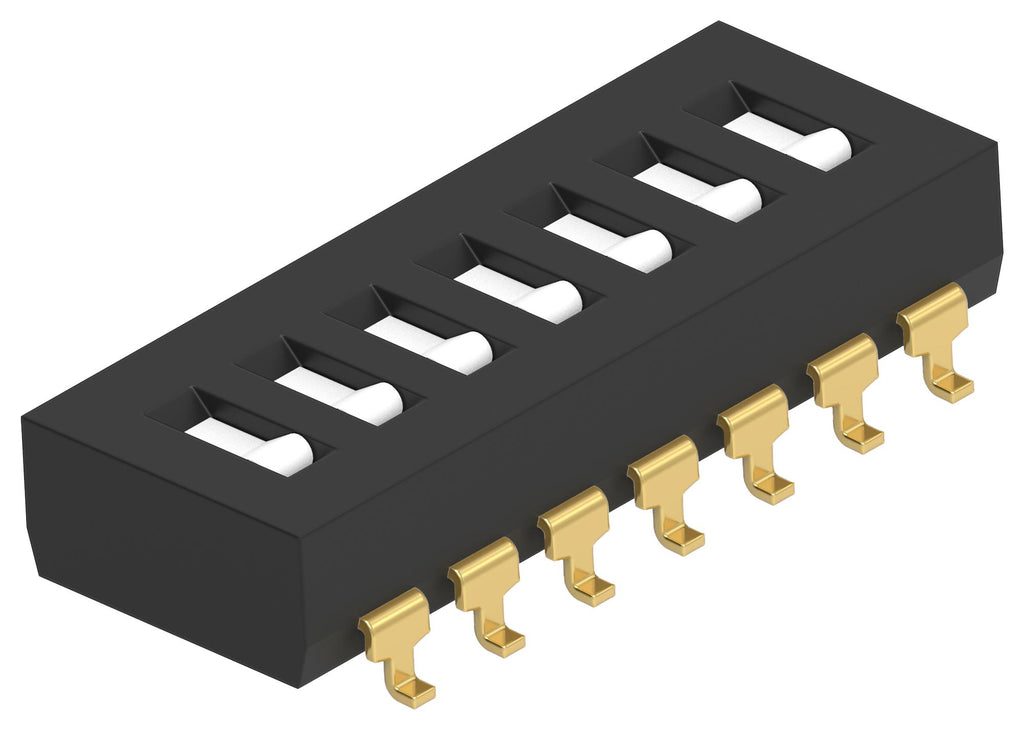

3-1825059-1 is a DIP switch. It is designed for space-saving and streamlined manufacturing with high contact pressure allowing for aqueous cleaning without the need for tape sealing. Applications include industrial and automated control boards, fire and security systems, thermostats, elevator/escalator, telecommunication devices.
- Flush actuator, high pressure contact system
- Processable without tape seal, auto insertable
- Extremely high contact pressure system allows aqueous or solvent cleaning without tape seal
- Gold contact plating for high reliability and corrosion resistance
- 7 positions, 7 switches, single pole - single throw configuration (pole-throw)
- 1A contact current rating, 5VDC operating voltage
- White actuator colour, black polyphenylene sulphide (PPS) case
- Nickel PCB contact termination area plating, copper alloy contact base material
- 2.54mm centreline (pitch), 3.5mm height, 19.76mm length
- Operating temperature range from -30°C to +85°C, UL 94V-0 UL flammability rating
Product details
Other details
| Brand | TE CONNECTIVITY |
| Part Number | 3-1825059-1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 198.21 |
| 3-5 | ₹ 196.18 |
| 5-10 | ₹ 192.14 |
| 10+ | ₹ 188.09 |
Bulk discount will be automatically applied during checkout based on quantity.
