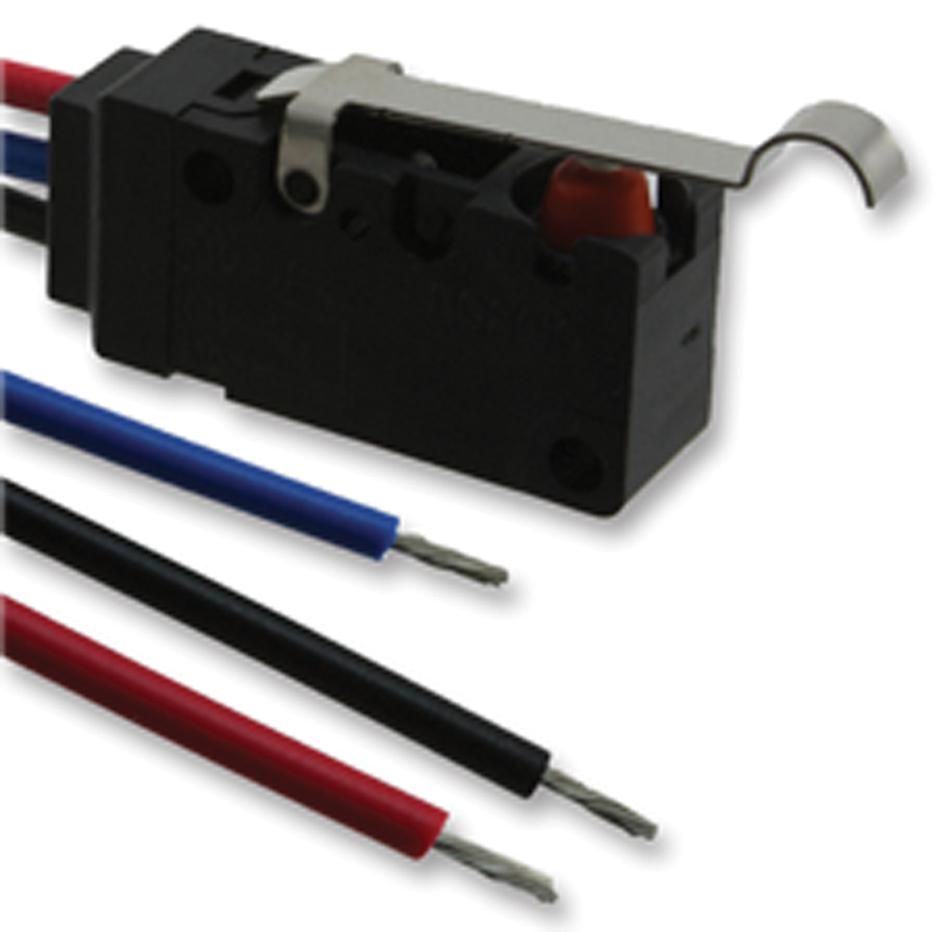

The D2VW-5L3-1M is a SPDT sealed miniature Basic Switch with simulated roller lever actuator and moulded lead-wire terminals. Use of epoxy resin assures stable sealing, making this switch ideal for places subject to water spray or excessive dust. The V-series internal mechanism assures high precision and durability. The mounting is the same as of the V models. It is ideal for automobiles and large-scale home appliances, which require high environmental resistance.
- Silver-plated alloy rivet contact
- 0.5mm Gap (standard value)
- 100MR at 500VDC Minimum insulation resistance
- IP67 Protection rating
Applications
Industrial
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
Microswitch Type |
Miniature |
Microswitch Actuator |
Simulated Roller Lever |

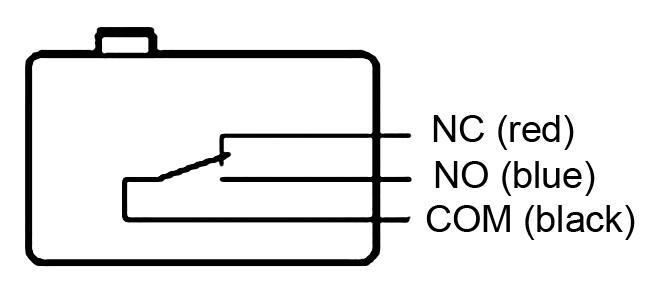

Contact Configuration |
SPDT |
Switch Terminals |
Wire Leaded |
Contact Current Max |
5A |
Contact Voltage DC Nom |
30VDC |
Product Range |
- |
Contact Voltage AC Nom |
250VAC |
Operating Force Max |
1.18N |
Other details
Brand |
OMRON ELECTRONIC COMPONENTS |
Part Number |
D2VW-5L3-1M |
Quantity |
Each |
Technical Data Sheet EN |
 |
