The D2SW-01MS is a SPDT sealed subminiature Basic Switch with pin plunger actuator and moulded lead-wire terminals. Use of epoxy resin assures stable sealing, making this switch ideal for places subject to water spray or excessive dust. The sealed basic switch conforming to IP67 (excluding the terminals on terminal models). It is ideal for automobiles, automatic vending machines, refrigerators, ice-making equipment, bath equipment, hot-water supply systems and air conditioners, which require high environmental resistance.
- Gold-plated alloy crossbar contact
- 0.5mm Gap (standard value)
- 100MR at 500VDC Minimum insulation resistance
Applications
Industrial
Warnings Do not use the switch underwater. Prevent the switch from coming into contact with oil or chemicals. Otherwise, damage to or deterioration of switch materials may result.
Product details
| Microswitch Type |
Subminiature |
| Microswitch Actuator |
Pin Plunger |
| Contact Configuration |

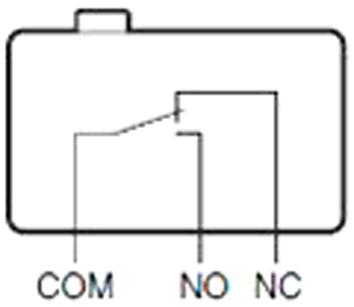

SPDT |
| Switch Terminals |
Wire Leaded |
| Contact Current Max |
100mA |
| Contact Voltage DC Nom |
30VDC |
| Product Range |
- |
| Contact Voltage AC Nom |
- |
| Operating Force Max |
0.59N |
Other details
| Brand |
OMRON ELECTRONIC COMPONENTS |
| Part Number |
D2SW-01MS |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
