Description

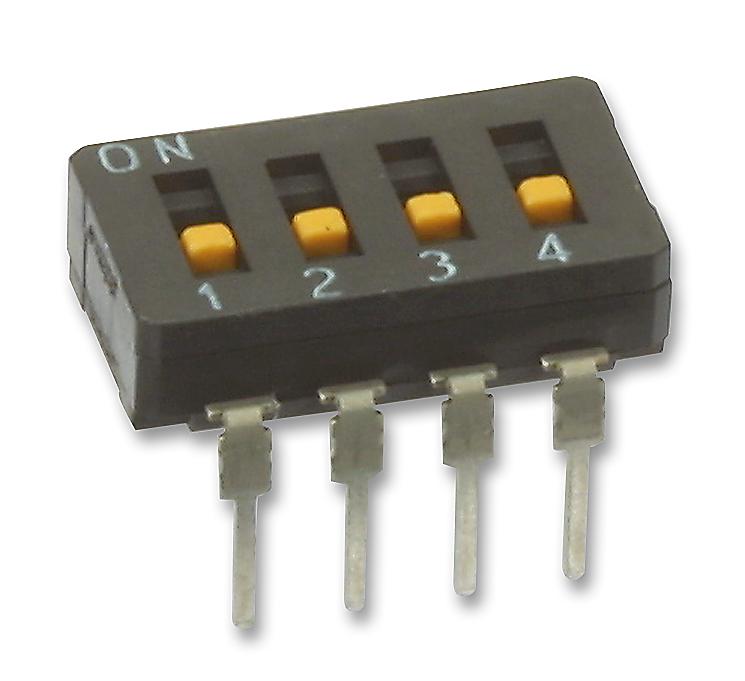

The A6D series Sub-miniature DIP Switch offers space-saving and sealed, unsealed construction. The sealed construction equivalent to IEC 60529 prevents flux penetration and provides high contact reliability even in dusty locations and locations where water is used. Smooth, sure switching action enables comfortable operation. Designed to standards of DIL-IC top actuated types are auto insert-able. The gold-plated twin contacts and a slide-type, self-cleaning mechanism ensure high reliability.
- IP64 Protection rating
- 30mA at 30VDC Switching capacity
- 10µA at 3.5VDC Minimum permissible load
- 100MR Maximum contact resistance
- 10MR at 250VDC Minimum insulation resistance
- 500VAC Dielectric strength for 1 minute between terminals
- 30 to 500gf (0.3 to 4.9N) Operating force
- -20 to 70°C Ambient operating temperature
- 5000 Operations minimum mechanical service life
- 2000 Operations minimum electrical service life
Applications
Industrial
Product details
| No. of Circuits: 4Circuits |
| Switch Actuator Style: Slide |
| Switch Mounting: Through Hole |

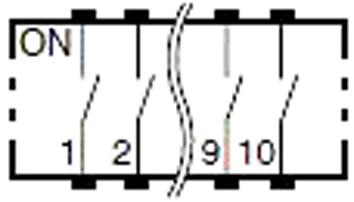

| Contact Configuration: SPST |
| Contact Voltage DC Max: 24VDC |
| Contact Current DC Max: 25mA |
| Product Range: A6D |
| Switch Type: DIP Sealed |
Other details
| Brand | OMRON ELECTRONIC COMPONENTS |
| Part Number | A6D-4100 |
| Quantity | Each |
| Technical Data Sheet EN |  |
