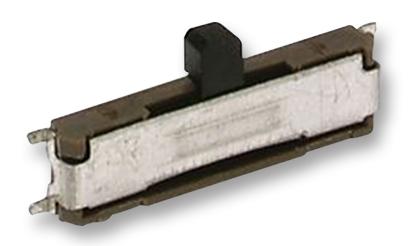

The MSS6-V-T/R is a double-pole double-throw (DPDT) right angle Slide Switch with gold plated brass terminal and stainless steel spring plate. This switch has gold plated copper alloy contact, black LCP high-temp thermoplastic base and nickel silver cover.
- 100mR Maximum contact resistance
- 100MR at 500VDC Minimum insulation resistance
- 500VAC for one minute Dielectric strength
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Industrial
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Contact Configuration |
DPDT |
| Switch Operation |
- |
| Switch Mounting |
Surface Mount |
| Product Range |
- |
| Contact Current Max |
25mA |
| Contact Voltage AC Max |
- |
| Contact Voltage DC Max |
24V |
| Orientation |
Right Angle |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MSS6-V-T/R |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
