Description
Product Overview

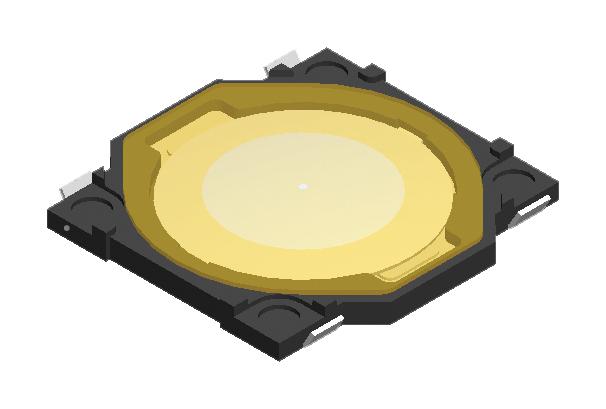

MPT3BL-05-Q-T/R is a J pin, tactile switch.
- General tolerance is ±0.2mm, 235gf operating force
- 500,000 cycles electrical life
- 50mA switch rating current, 12VDC switch rating voltage
- 100mohm max contact resistance, 100VDC/100Mohm insulation resistance
- Phosphor bronze with silver plating terminal material
- Stainless steel with silver cladding contact material
- Dimension is 3.7mm × 3.7mm, H0.35mm
- Operating temperature range from -40°C to +85°C
- High temp thermoplastic LCP UL94V - 0 (moulded black) base material
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MPT3BL-05-Q-T/R |
| Quantity | Each |
| Technical Data Sheet EN |  |
