Description
Product Overview

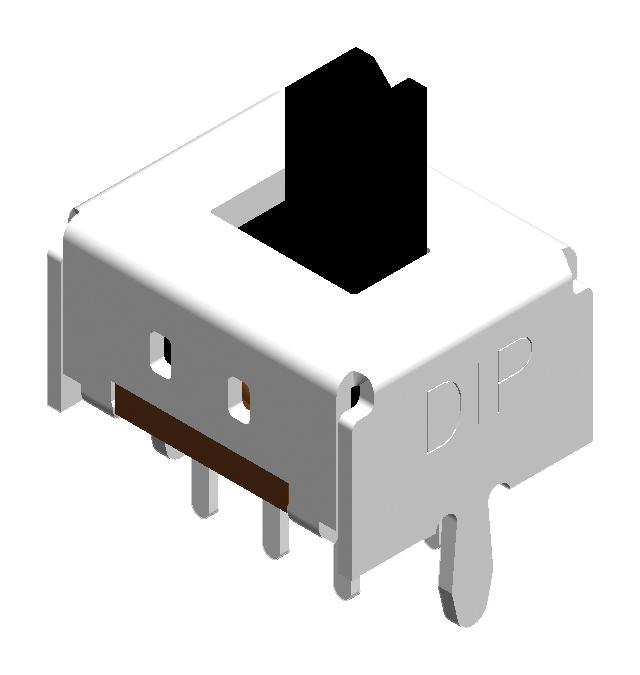

MPSL6NCHVR is a 2P2T, slide switch.
- 0.1A max current rating, 12VDC max voltage rating
- 20mohm max contact resistance, 500VDC to 100Mohm min insulation resistance
- Operating force is 250 ±150gf, 10,000 Cycles min operating life
- General tolerance is ±0.3mm, air pressure rang from 86 to 106kPa
- SPCC cover material (NI plating), phenolic resin base material
- Dimension is 8.6mm × 6.8mm
- Operating temperature range from -40°C to +85°C
- High-temp thermoplastic nylon L 94V - 0 black stem
- Phosphor bronze spring plate and contact clip material
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MPSL6NCHVR |
| Quantity | Each |
| Technical Data Sheet EN |  |
