Description
Product Overview

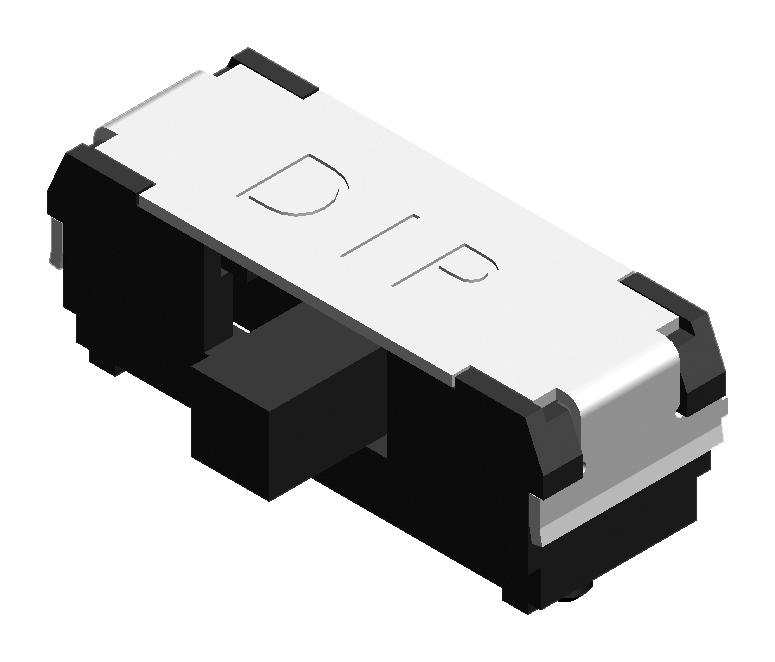

MPLSSM12-P-V-T/R is a SMT, 1P2T slide switch.
- Horizontal orientation
- General tolerance is ±0.2mm [.008]
- Stainless steel cover material
- Brass with silver plating terminal material
- 100mA current rating (non-switching), 50VDC voltage rating (non-switching)
- 0.1mA current rating (switching), 12VDC voltage rating (switching)
- 100Mohm min insulation resistance (500VDC, 1 minute ±5 sec), 60mohm max (initial) contact resistance
- Operating temperature range from -10°C to +60°C
- High temp thermoplastic nylon UL94V - 0 (moulded black) stem
- High-temp thermoplastic LCP (moulded black) base
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MPLSSM12-P-V-T/R |
| Quantity | Each |
| Technical Data Sheet EN |  |
