Description
Product Overview

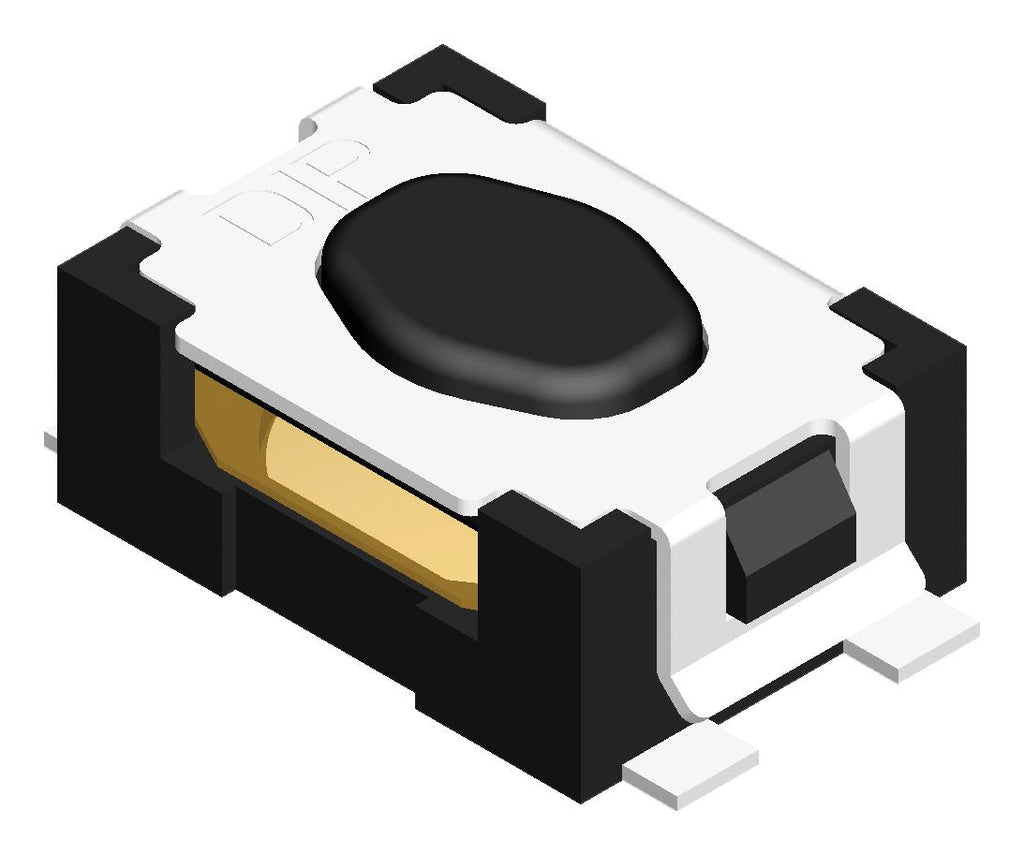

MPIPTG25K-V-T/R is a SMT, tactile switch.
- General tolerance is ±0.2mm[±0.008] max
- 160±50gf vertical push operation force
- 0.13±0.1mm vertical push stroke
- 500mA current rating, 12VDC voltage rating
- Stainless steel with silver plating cover material
- Phosphor bronze contact terminal material
- Dimension is 2.8mm × 3.8mm, H1.9mm
- Operating temperature range from -20°C to +70°C
- High temp thermoplastic base and stem material
- 100mohm maximum contact resistance
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MPIPTG25K-V-T/R |
| Quantity | Each |
| Technical Data Sheet EN |  |
