Description
Product Overview

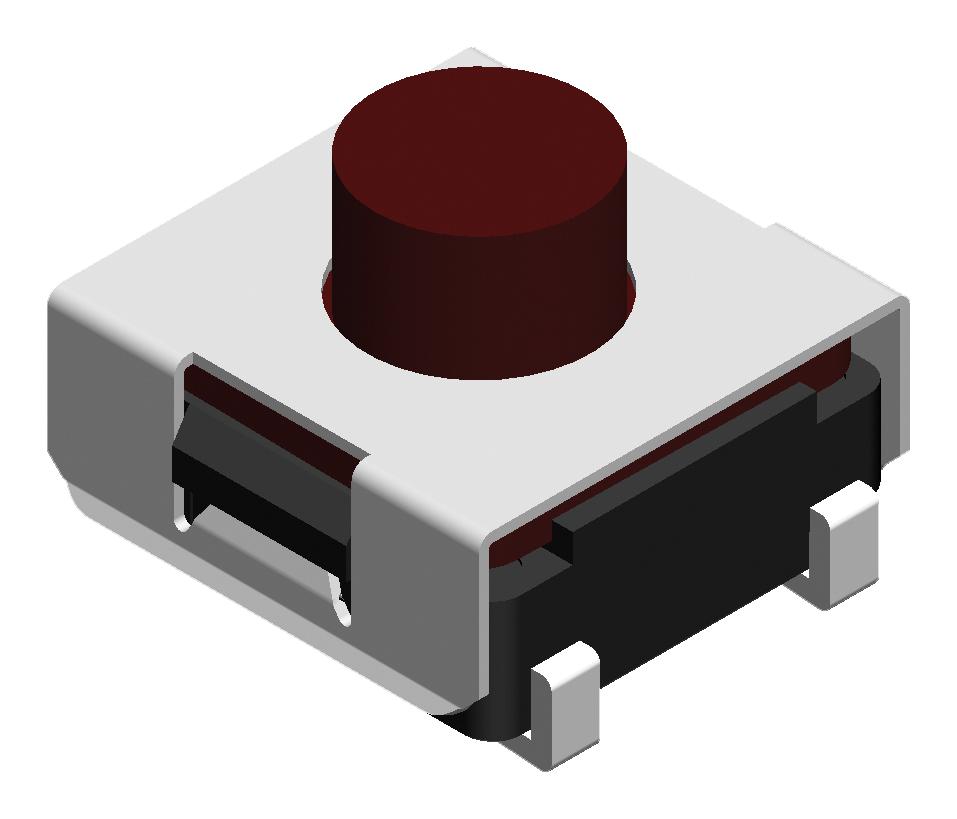

MPDTSJW-65N-V-T/R is a through hole, J pin tactile switch.
- 50mA current range, 12VDC voltage range
- 100Mohm min insulation resistance (500VDC)
- Tactile feedback type of actuation
- Stainless steel with tin plating cover material
- Stainless steel with silver plating contact, brass terminal with silver plating contact
- Switch dimension (L x W) is 6mm x 6mm
- Operating temperature range from -25°C to +70°C
- High temp thermoplastic nylon UL 94V-0 base
- 100mohm maximum contact resistance
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MPDTSJW-65N-V-T/R |
| Quantity | Each |
| Technical Data Sheet EN |  |
