Description
Product Overview

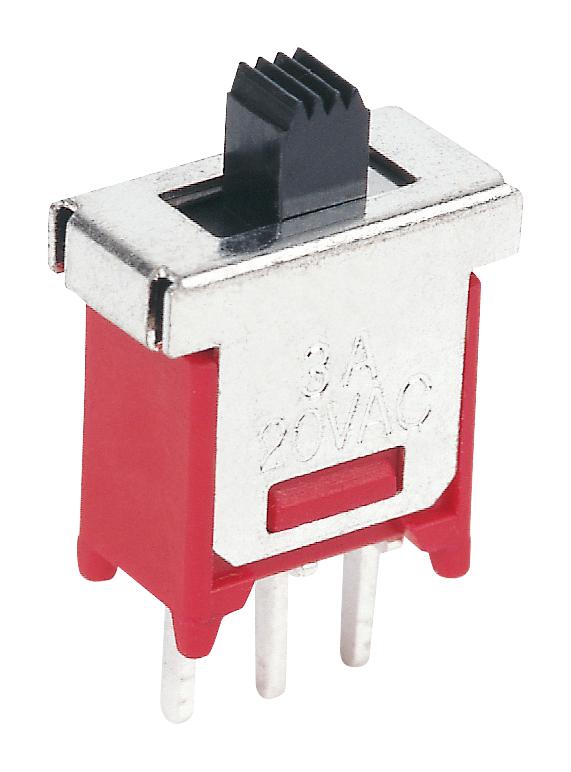

MP5FS1S102M2RES is a gold plated, PC terminal, slide switch.
- 30,000 make-and-break cycles mechanical life
- Contact resistance is 20mohm max initial at 2-4VDC
- 1,000Mohm minimum insulation resistance
- 1,000Vrms minimum at sea level dielectric strength
- 0.4Volt-Amps(VA) max at 20V max (AC or DC) rating
- Diallyl phthalate (DAP) (UL94V-0) case, nylon, black standard actuator
- Stainless steel housing, copper alloy contact/terminals
- Operating temperature range from -40°C to 85°C
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MP5FS1S102M2RES |
| Quantity | Each |
| Technical Data Sheet EN |  |
