Description
Product Overview

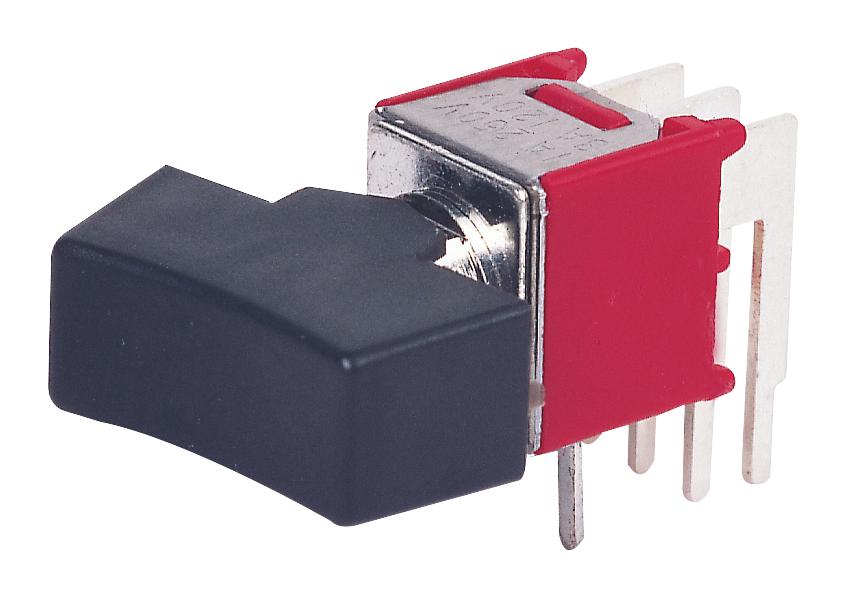

MP4MD1R0000M6NQES is a PC terminal, snap in, right angle sub miniature rocker switch.
- 30,000 make-and-break cycles
- Contact resistance is 20mohm max initial at 2 to 4VDC
- 1,000Mohm min insulation resistance
- 1,000Vrms min at sea level dielectric strength
- Diallyl phthalate (DAP) (UL94V-0) case, chrome plated zinc actuator
- Nickel plated zinc bushing, stainless steel housing
- Tin plated brass switch support, copper terminals/contact
- Operating temperature range from -40°C to 85°C
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MP4MD1R0000M6NQES |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 460.71 |
| 3-5 | ₹ 456.01 |
| 5-10 | ₹ 446.6 |
| 10+ | ₹ 437.2 |
Bulk discount will be automatically applied during checkout based on quantity.
