Description

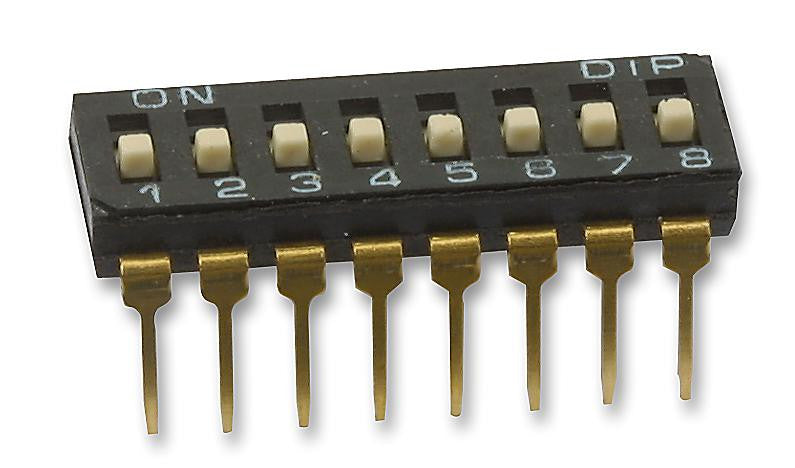

The MCNDI-08S is a single-pole single-throw (SPST) 8-way low profile DIL Switch, machine insertable DIP. The DM series switch has gold plated over nickel contact, gold terminal and black high temperature base/cover. Splay terminals allow for automatic insertion by IC insertion machine. Insert moulding of terminals and ultrasonic welding improve flux proofness and enable flux washing in whole by top tape sealing. Double contacts offers high reliability. Terminal plating by gold give excellent results when soldering.
- Vapour phase solderable, IR-reflow solderable
- 100MR at 500V Insulation resistance
- 500VAC for one minute Dielectric strength
Applications
Industrial, Automation & Process Control, Communications & Networking
Product details
| No. of Circuits | 8Circuits |
| Contact Current DC Max | 25mA |
| Contact Voltage DC Max | 24V |
| Switch Type | DIP Unsealed |
| Switch Mounting | Through Hole |
| Contact Configuration | SPST |
| Product Range | NDI Series |
| Switch Actuator Style | Slide |
Other details
| Brand | MULTICOMP |
| Part Number | MCNDI-08S |
| Quantity | Each |
| Technical Data Sheet EN |  |
