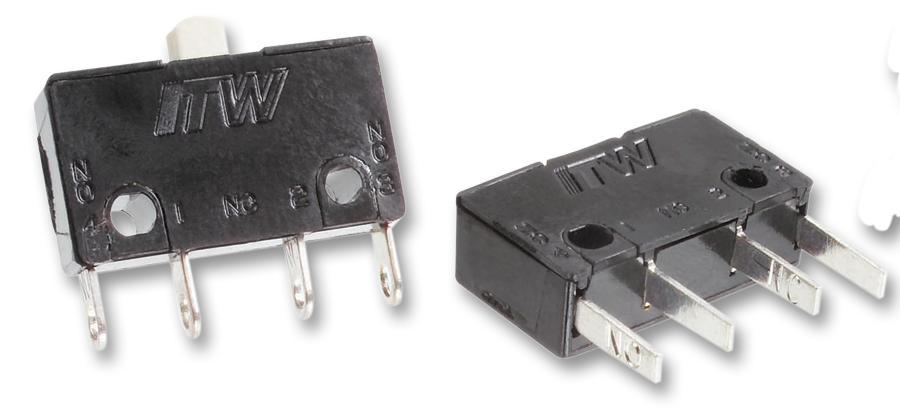

The 16-404 is a single-pole double-throw (SPDT) miniature Butterfly® double-break Snap Action Switch with bottom solder terminals and silver contact. This offers the capability of handling high (or low) current loads in a small switch and gives the options of controlling two circuits with the Form Z switch circuitry.
- Meets MIL-PRF-8805/7
- To 275°F Ambient temperature index
Applications
Industrial, Aerospace, Defence, Military
Product details
| Microswitch Type |
Snap Action |
| Microswitch Actuator |
Plunger |
| Contact Configuration |
SPDT |
| Switch Terminals |
Solder |
| Contact Current Max |
10.1A |
| Contact Voltage DC Nom |
28VDC |
| Product Range |
- |
| Contact Voltage AC Nom |
250VAC |
| Operating Force Max |
5ozf |
Other details
| Brand |
ITW SWITCHES |
| Part Number |
16-404 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
