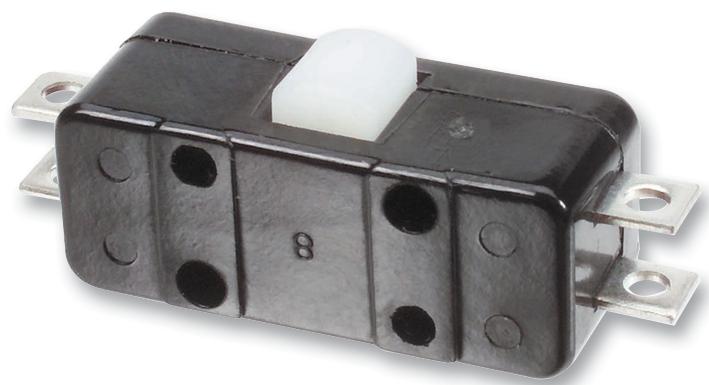

The 11-504 is a single-pole double-throw (SPDT) miniature Butterfly® double-break Snap Action Switch with 0.250" quick disconnect terminal and a pin plunger actuator. It is ideal for tough applications where high current capability and Butterfly® reliability are needed.
- 0.050" Maximum pretravel
- 0.015" Minimum over-travel
- 8oz + 3oz Operating force
- 4oz Minimum release force
Applications
Industrial
Product details
| Microswitch Type |
Miniature |
| Microswitch Actuator |
Pin Plunger |
| Contact Configuration |
SPDT |
| Switch Terminals |
Quick Connect |
| Contact Current Max |
10A |
| Contact Voltage DC Nom |
28VDC |
| Product Range |
11 Series |
| Contact Voltage AC Nom |
250VAC |
| Operating Force Max |
8ozf |
Other details
| Brand |
ITW SWITCHES |
| Part Number |
11-504 |
| Quantity |
Each |
