Description
Product Overview

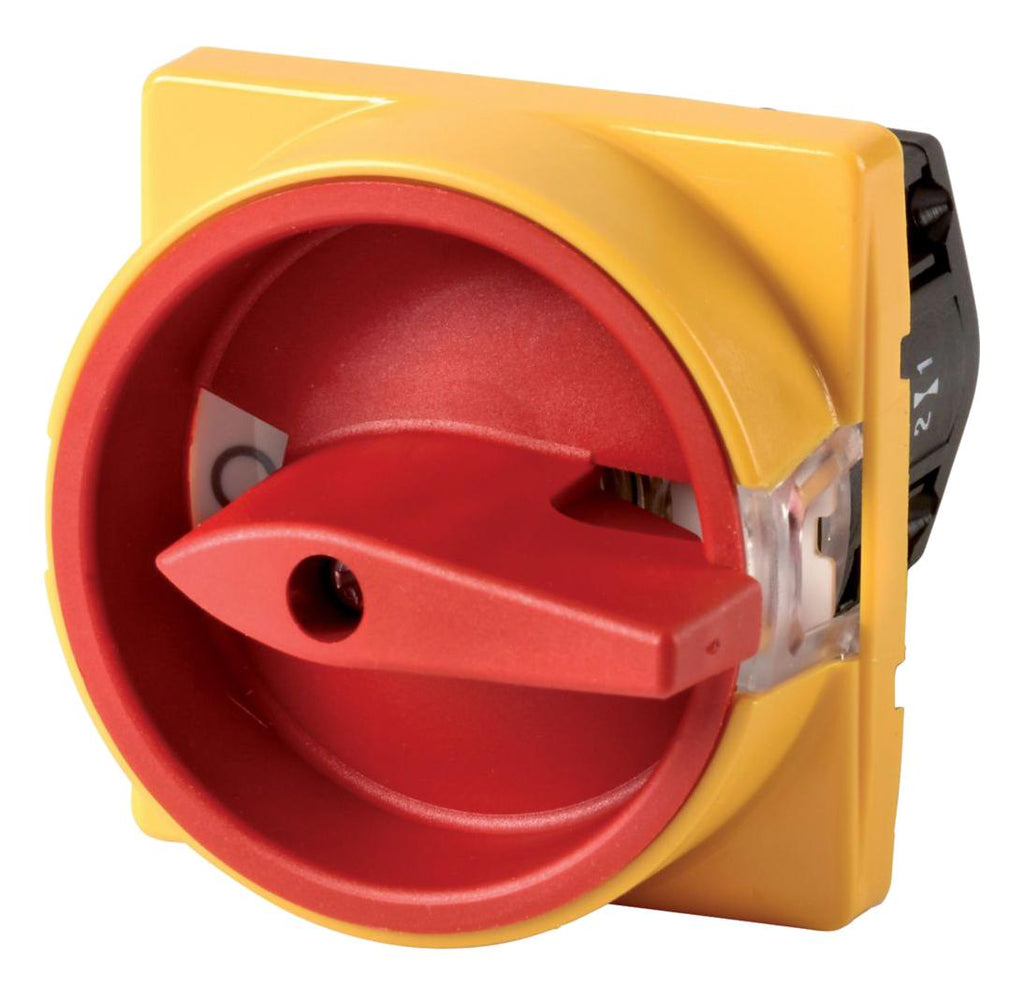

TM-1-8290/E/SVB is a 1 pole, 10A, TM control circuit switch. It has emergency switching off function, with red rotary handle and yellow locking ring. It is certified by UL Category Control No.: NLRV, IEC/EN 60947-5-1, CSA-C22.2 No. 14-05, UL File No.: E36332, certified by UL for use in Canada, UL, VDE 0660, CSA, IEC/EN 60947-3, UL 508, IEC/EN 60947, UL report applies to both US and Canada, CSA-C22.2 No. 94.
- Lockable in the 0 (Off) position, NEMA 12 degree of protection
- Degree of protection (front side) is IP65, flush mounting
- Ambient operating temperature range from -25°C to 50°C
- Rated operational current (Ie) at AC-21, 440V is 10A
- Rated operational power at AC-23A, 400V, 50Hz is 3KW
- Maximum rated operation voltage Ue AC is 500V
- Short-circuit protection ratings are 10A gG/gL, fuse, contacts
- Number of contact unit is 1
- Red door coupling rotary drive actuator
- Product dimension is 77mm length/depth x 48mm height x 30mm width
Product details
Other details
| Brand | EATON MOELLER |
| Part Number | TM-1-8290/E/SVB |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 7724.77 |
| 3-5 | ₹ 7645.95 |
| 5-10 | ₹ 7488.3 |
| 10+ | ₹ 7330.65 |
Bulk discount will be automatically applied during checkout based on quantity.
