Description
Product Overview

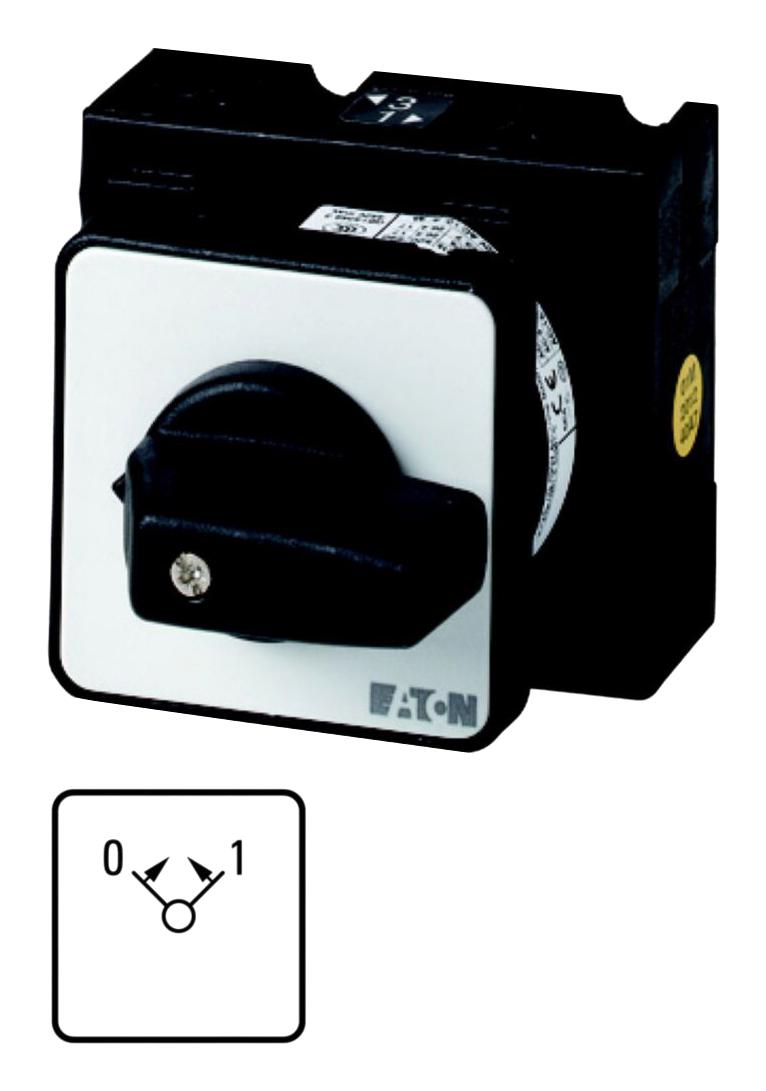

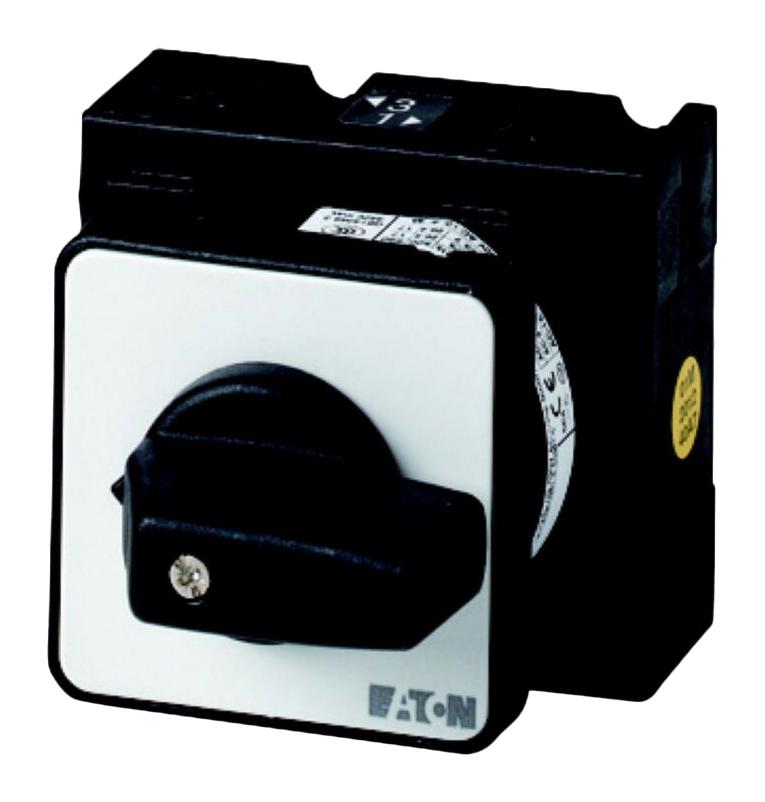

T0-2-15367/E is a 2 pole, T0 ON-OFF button. It is certified by UL Category Control No.: NLRV, IEC/EN 60947-3, UL 60947-4-1, VDE 0660, CSA-C22.2 No. 60947-4-1-14, IEC/EN 60204, UL File No.: E36332, CSA Class No.: 3211-05, CSA File No.: 012528, UL, CSA, CSA-C22.2 No. 94, IEC/EN 60947.
- Fitted with 0 (off) position, black thumb grip and front plate, retraction in 0-position
- Maximum rated operation voltage Ue AC is 690V
- Rated operational current (Ie) at AC-3, 220V, 230V, 240V is 11.5A
- Rated operational power at AC-3, 415V, 50Hz is 5.5KW
- Number of switch positions are 2, flush mounting
- Front shield size is 48 x 48mm, switching angle is 45°, M3.5 terminal screw size
- Degree of protection (IP), front side is IP65, degree of protection (NEMA), front side is 12
- Rated conditional short-circuit current (Iq) is 6KA
- Ambient operating temperature range from -25°C to 50°C
- Product dimension is 86mm length/depth x 48mm height x 48mm width
Product details
Other details
| Brand | EATON MOELLER |
| Part Number | T0-2-15367/E |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 5292.15 |
| 3-5 | ₹ 5238.15 |
| 5-10 | ₹ 5130.14 |
| 10+ | ₹ 5022.14 |
Bulk discount will be automatically applied during checkout based on quantity.
