Description
Product Overview

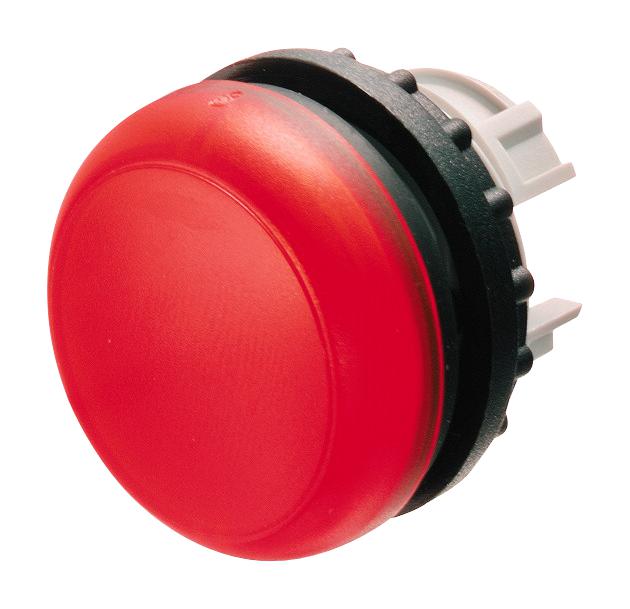

M22-L-R is a M22 series, RMQ-Titan, flush, red indicator light. Complies with certifications such as UL category control No.: NKCR, IEC 60947-5, UL, UL File No.: E29184, CSA-C22.2 No. 14-05, CSA File No.: 012528, IEC/EN 60947, CE, IEC/EN 60947-5, CSA Class No.: 3211-03, CSA Std. C22.2 No. 94-91, VDE 0660 CSA Std. C22.2 No. 14-05, VDE, CSA, CSA-C22.2 No. 94-91, EN 60947-5 and UL 508.
- Chrome bezel colour
- Fitted with front ring
- NEMA 4X, 13 degree of protection
- IP67/IP69K degree of protection (front side)
- III overvoltage category, 3 pollution degree
- 4000V AC rated impulse withstand voltage (Uimp)
- Ambient operating temperature range from -25 to 70°C
- 0.5 - 1.5mm² solid and stranded terminal capacity
- 250V rated insulation voltage (Ui)
- With SWD-RMQ connections
Product details
Other details
| Brand | EATON MOELLER |
| Part Number | M22-L-R |
| Quantity | Each |
| Technical Data Sheet EN |  |
